Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR (for Automatic Air Conditioning System): INSPECTION

INSPECTION





1. INSPECT AMBIENT TEMPERATURE SENSOR
(a) Measure the resistance of the sensor.

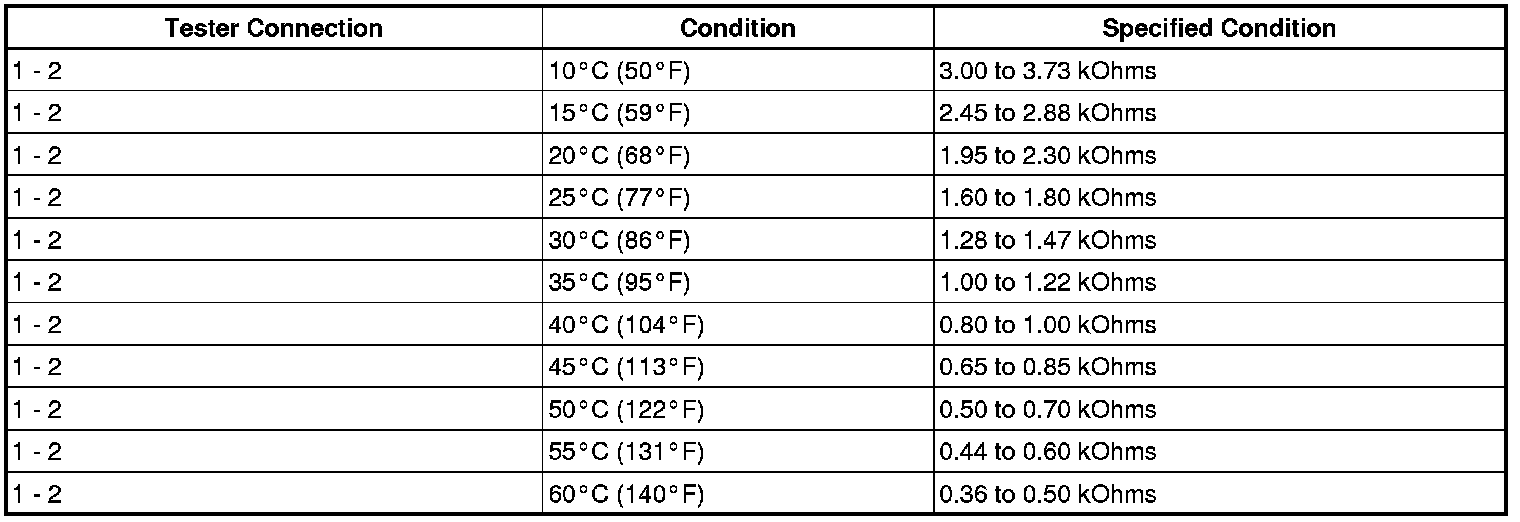

Standard resistance:





NOTICE:
- Touching the sensor even slightly may change the resistance value. Hold the connector of the sensor.
- When measuring the resistance, the sensor temperature must be the same as the ambient temperature.

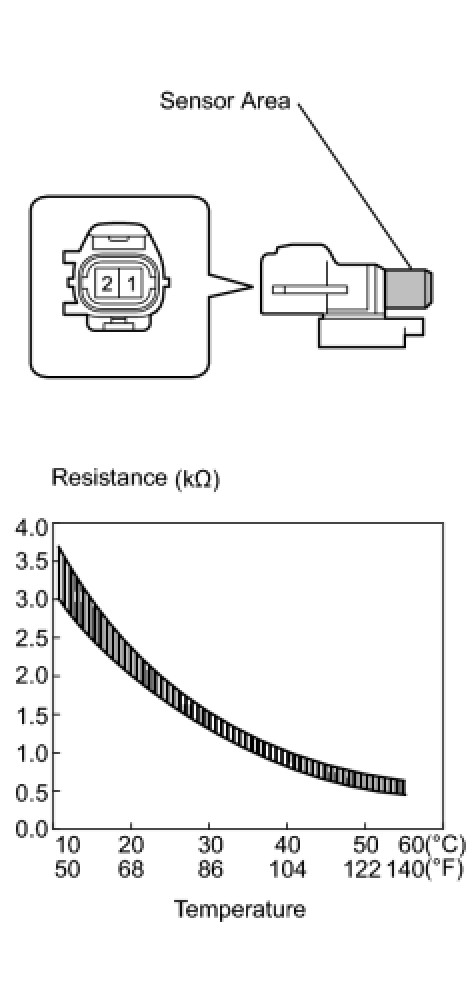

HINT: As the temperature increases, the resistance decreases (see the graph).
If the result is not as specified, replace the ambient temperature sensor.
