Removal

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Automatic Air Conditioning System): REMOVAL

REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL
(a) Remove the lower instrument panel Removal.
2. REMOVE ROOM TEMPERATURE SENSOR

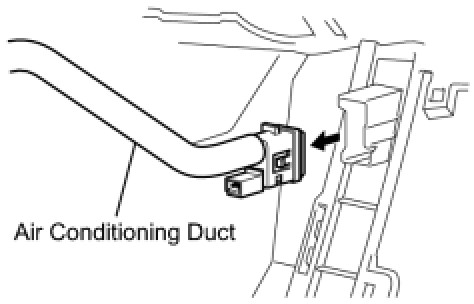

(a) Disconnect the duct.
(b) Disconnect the connector.
(c) Detach the claws and remove the sensor.
