Power Distribution Relay: Testing and Inspection

2AR-FE STARTING: ACC RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT ACC RELAY (ACC)

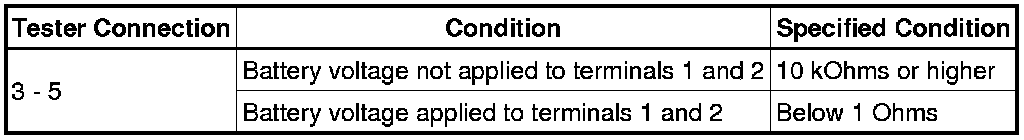

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.
