2AR-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: INSTALLATION

INSTALLATION





1. INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

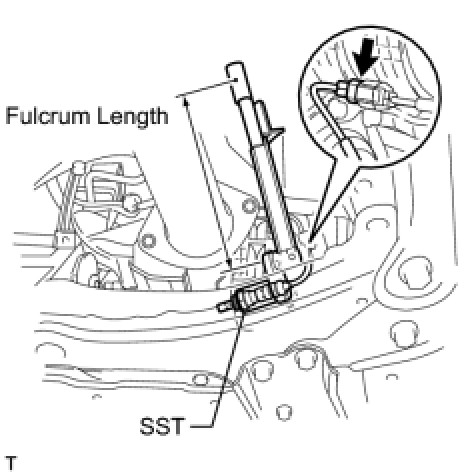

(a) Using SST, install the sensor to the front exhaust pipe.
SST: 09224-00010
without SST - Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
with SST - Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
- Make sure SST and wrench are connected in a straight line.

(b) Connect the sensor connector.
2. INSPECT FOR EXHAUST GAS LEAK
