Removal

2AR-FE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: REMOVAL

REMOVAL





1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
(a) Disconnect the sensor connector.

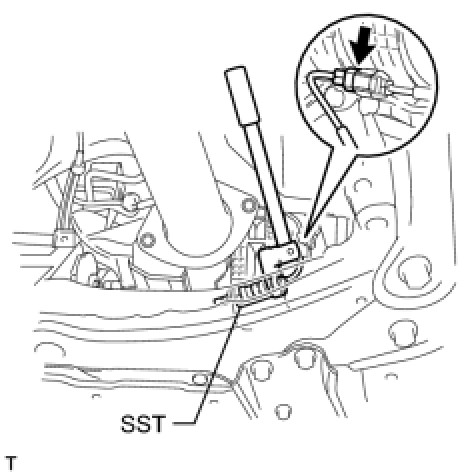

(b) Using SST, remove the sensor from the front exhaust pipe.
SST: 09224-00010
