U241E Automatic Transaxle

SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

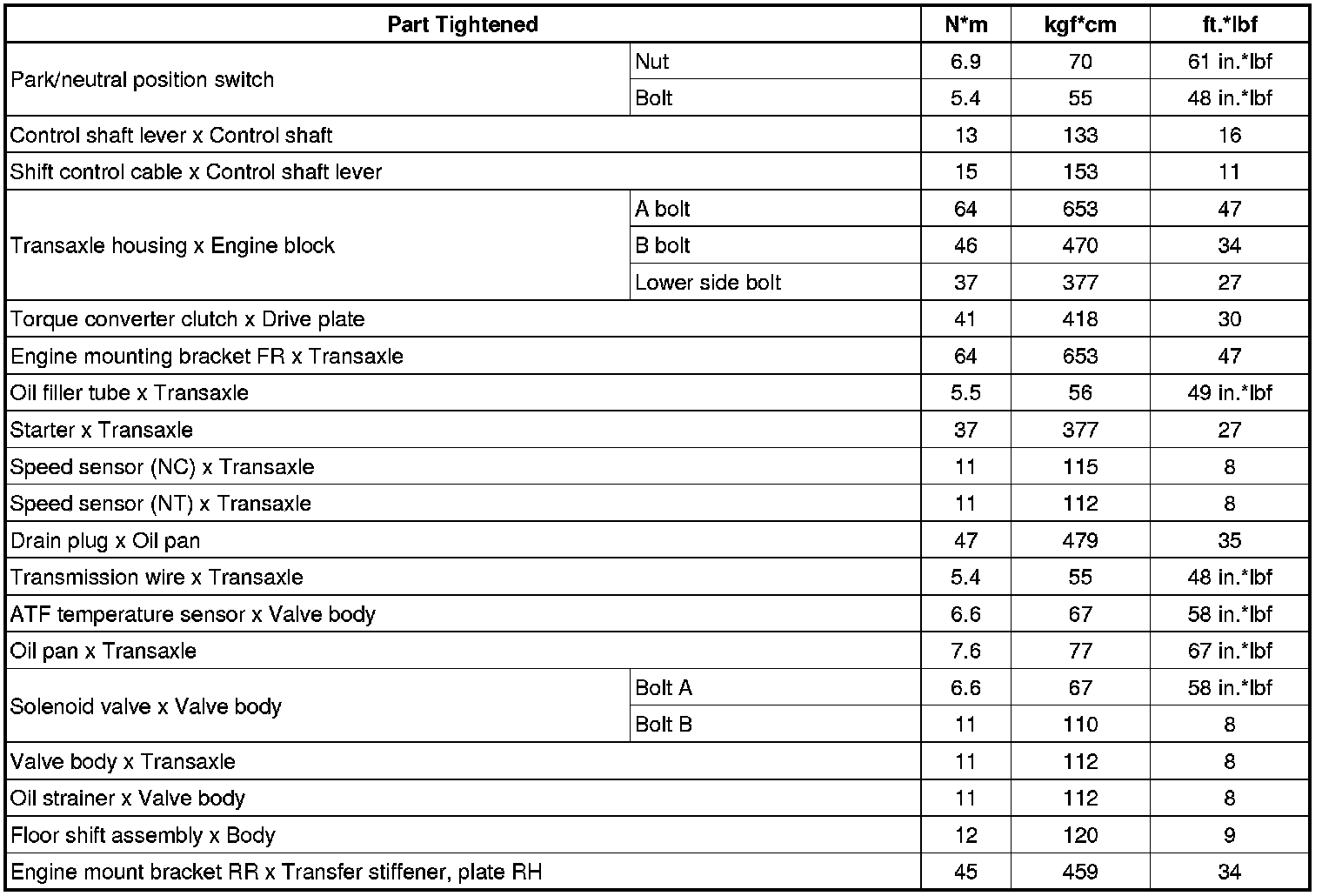

TORQUE SPECIFICATIONS

Automatic Transaxle Assembly

Automatic Transaxle Unit
