Automatic Transmission/Transaxle
SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA
SERVICE DATA
Automatic Transaxle Assembly
Oil Pump
Second Brake Piston
Forward Clutch
Direct Clutch
Underdrive Planetary Gear

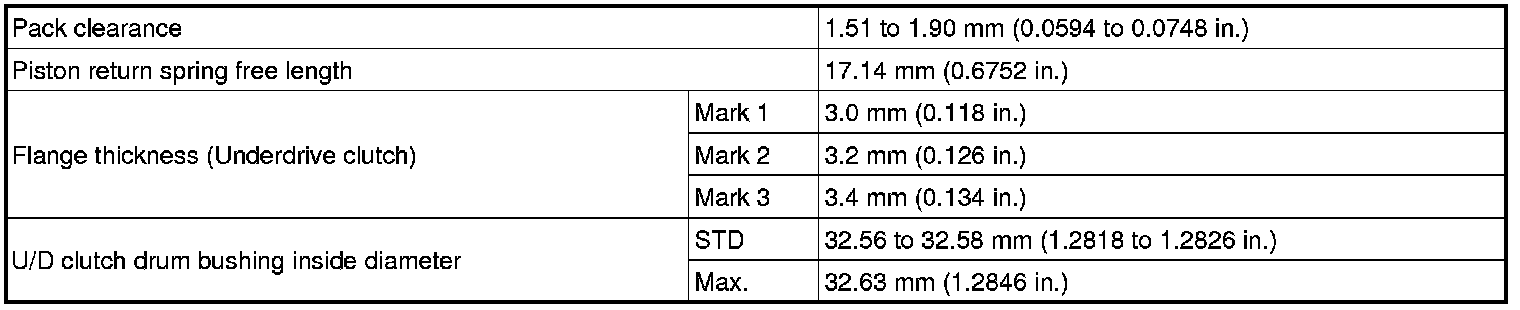

Underdrive Clutch

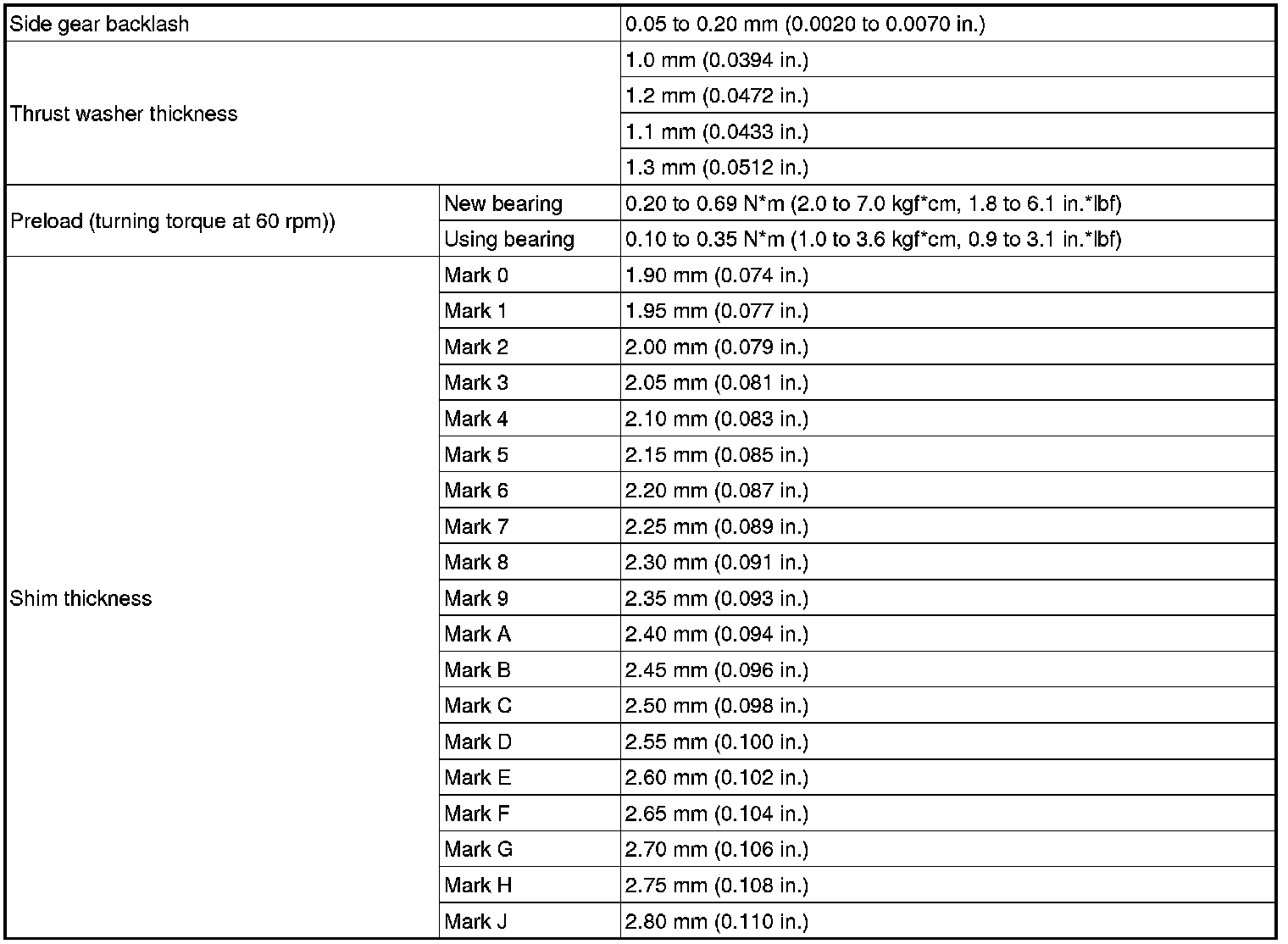

Differential
