Removal

2AR-FE STARTING: ENGINE SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
(a) Remove the air conditioning control Removal.
3. REMOVE ENGINE SWITCH





(a) Disconnect the switch connector.

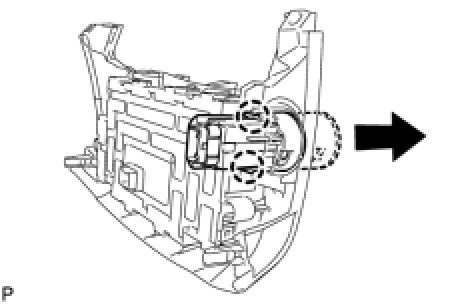

(b) Detach the 2 claws and remove the engine switch.
