2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

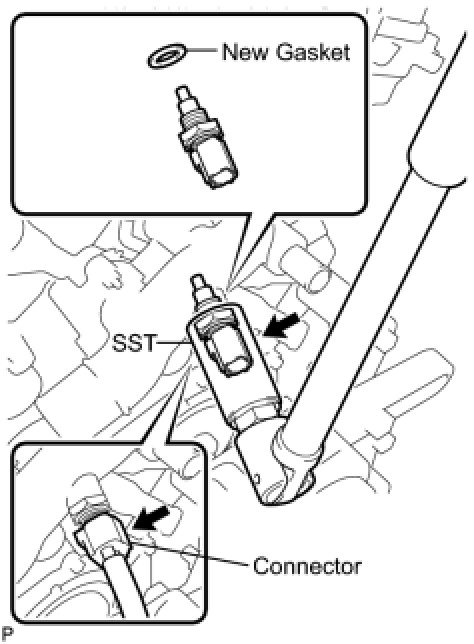

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR





(a) Install a new gasket onto the sensor.
(b) Using SST, install the sensor.
SST: 09817-33190
Torque: 19.6 Nm (200 kgf-cm, 14 ft-lbf)
(c) Connect the sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. ADD ENGINE COOLANT Service and Repair
4. CHECK FOR COOLANT LEAKS Testing and Inspection
