U151E Automatic Transaxle








SERVICE SPECIFICATIONS: U151E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

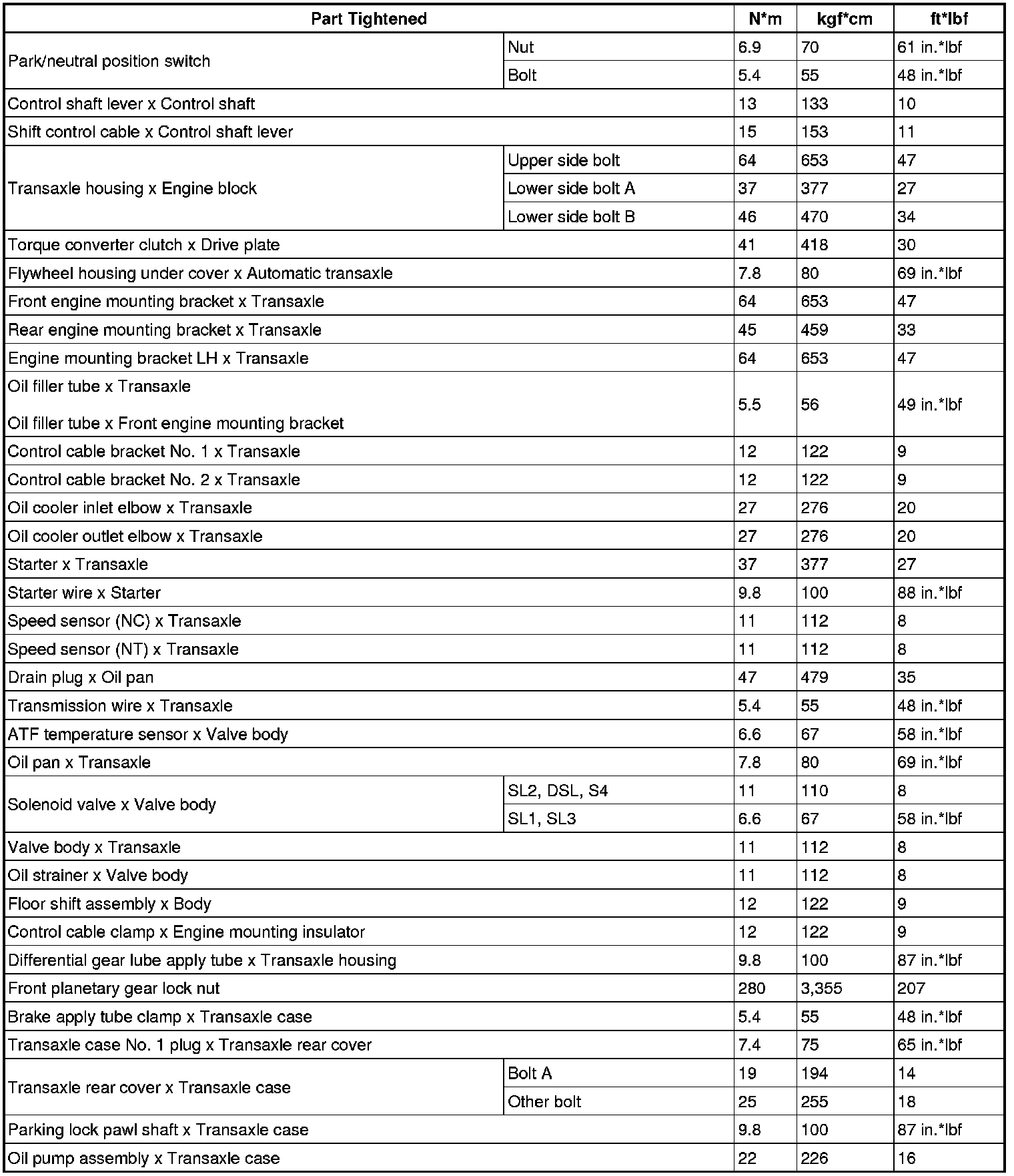

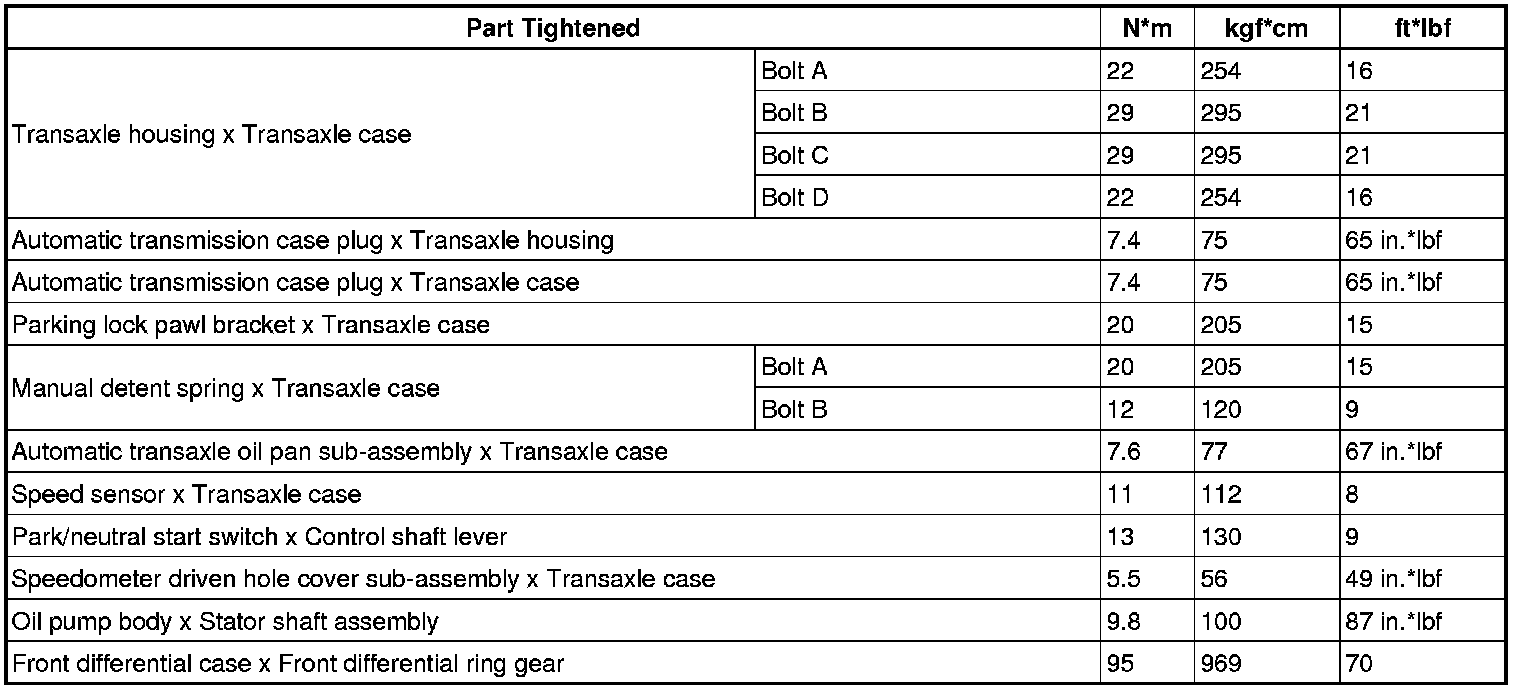

TORQUE SPECIFICATIONS

Automatic Transaxle Assembly
