System Specifications

TIMING CHAIN COVER SUB-ASSEMBLY (w/ Oil Pump)

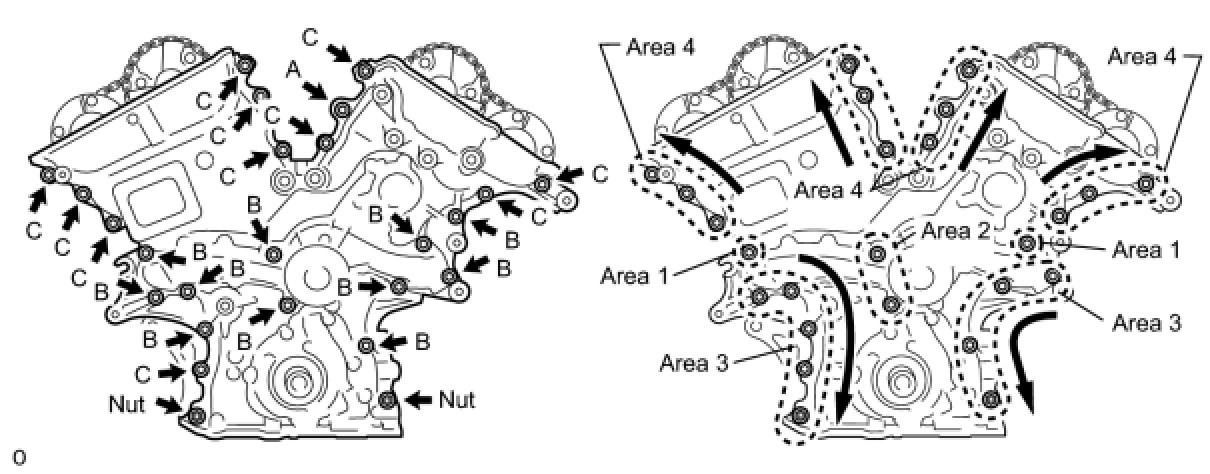

Temporarily install the timing chain cover with the 23 bolts and 2 nuts.





Make sure there is no oil on the bolts. If there is oil on the bolts, clean them before installing them.

Bolt length:
40 mm (1.57 in.) for bolt A
55 mm (2.17 in.) for bolt B
25 mm (0.98 in.) for bolt C

Tighten the bolts in this order: Area 1, Area 2, Area 3, Area 4.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf) for Area 1, 2 bolt
Torque 21 Nm (214 kgf-cm, 15 ft-lbf) for Area 3 bolt, nut
Torque 43 Nm (438 kgf-cm, 32 ft-lbf) for Area 4 bolt A
Torque 21 Nm (214 kgf-cm, 15 ft-lbf) for Area 4 except bolt A

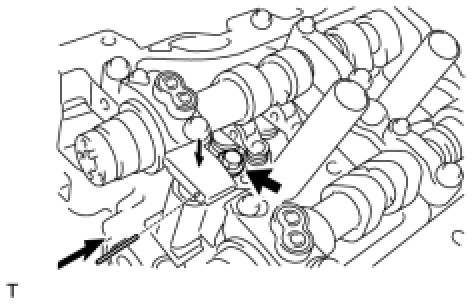

NO. 2 CHAIN TENSIONER ASSEMBLY





Install the chain tensioner with the bolt.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

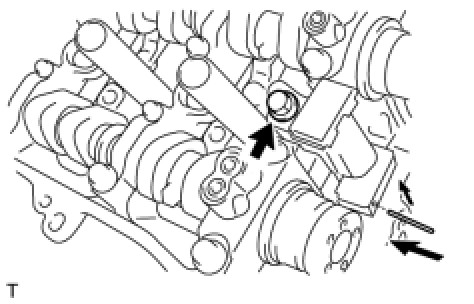

NO. 3 CHAIN TENSIONER ASSEMBLY





Install the chain tensioner with the bolt.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

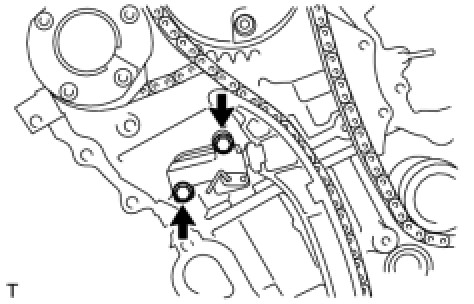

NO. 1 CHAIN TENSIONER ASSEMBLY





Install the chain tensioner with the 2 bolts.

Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

CRANKSHAFT PULLEY

Torque 250 Nm (2549 kgf-cm, 184 ft-lbf)
