Installation

2GR-FE STARTING: ENGINE SWITCH: INSTALLATION

INSTALLATION

1. INSTALL ENGINE SWITCH

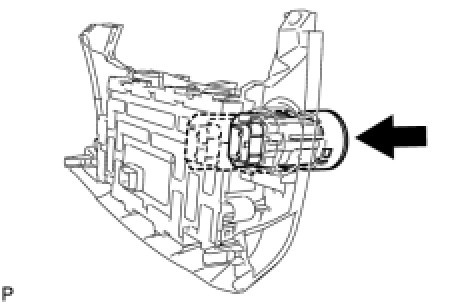

(a) Attach the 2 claws to install the switch.

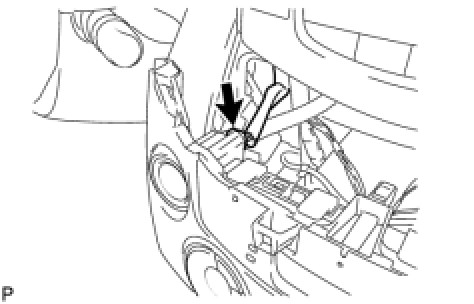

(b) Connect the switch connector.
2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
(a) Install the air conditioning control Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
