TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

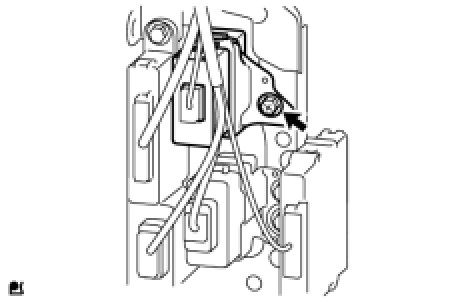

(a) Install the ECU with the bolt.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
(b) Connect the connector.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. REGISTER TRANSMITTER ID Programming and Relearning
5. INSPECT TIRE PRESSURE WARNING SYSTEM
