Intake Manifold

INTAKE MANIFOLD

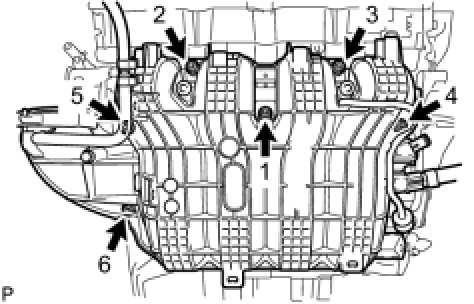

Install the intake manifold with the 6 bolts in the sequence shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

THROTTLE BODY ASSEMBLY

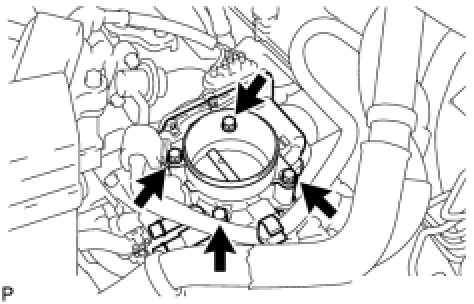

Install the throttle body (with the fuel tube bracket) with the 4 bolts.

Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
