Exhaust Manifold Torque and Sequence
EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
Temporarily install the exhaust manifold converter with the 5 nuts.

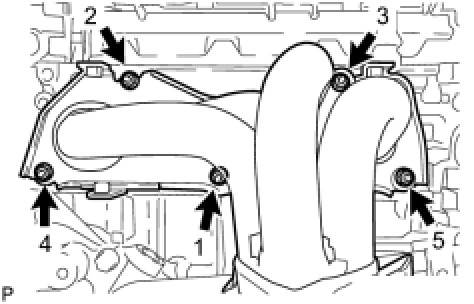

Tighten the 5 nuts in the sequence shown in the illustration.
Torque 35 Nm (357 kgf-cm, 26 ft-lbf)
Temporarily install the exhaust manifold converter with the 5 nuts.
Tighten the 5 nuts in the sequence shown in the illustration.
Torque 35 Nm (357 kgf-cm, 26 ft-lbf)
