Mechanical Specifications
>>
Transfer Case
>>
Service Data
Service Data

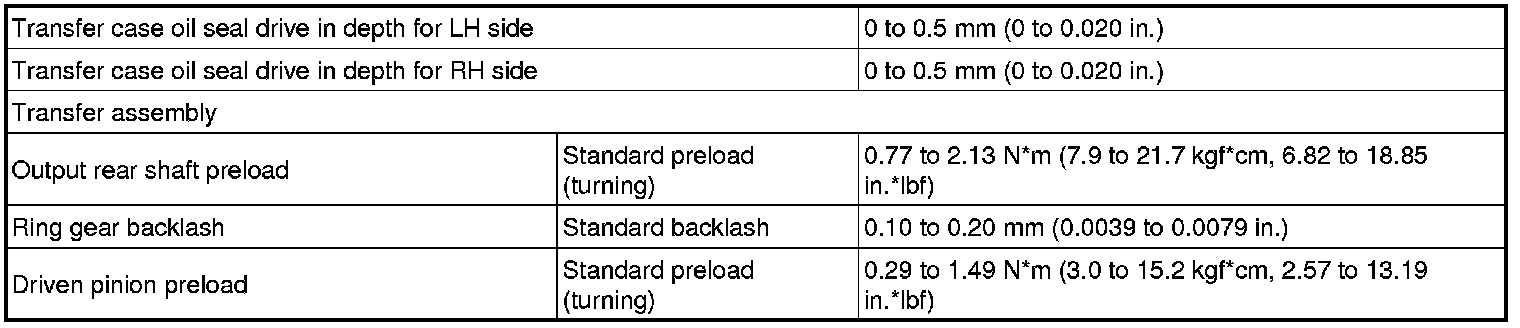

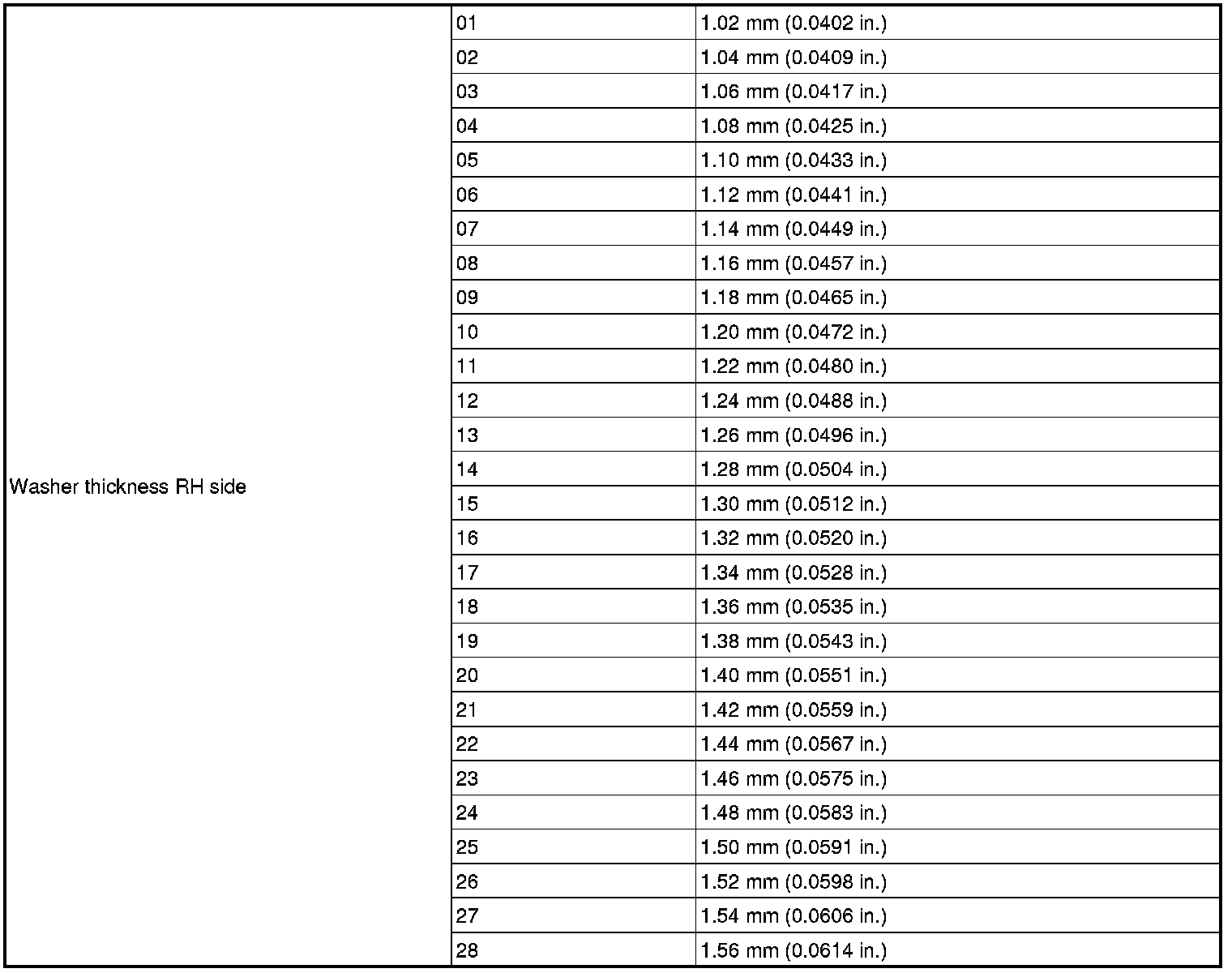

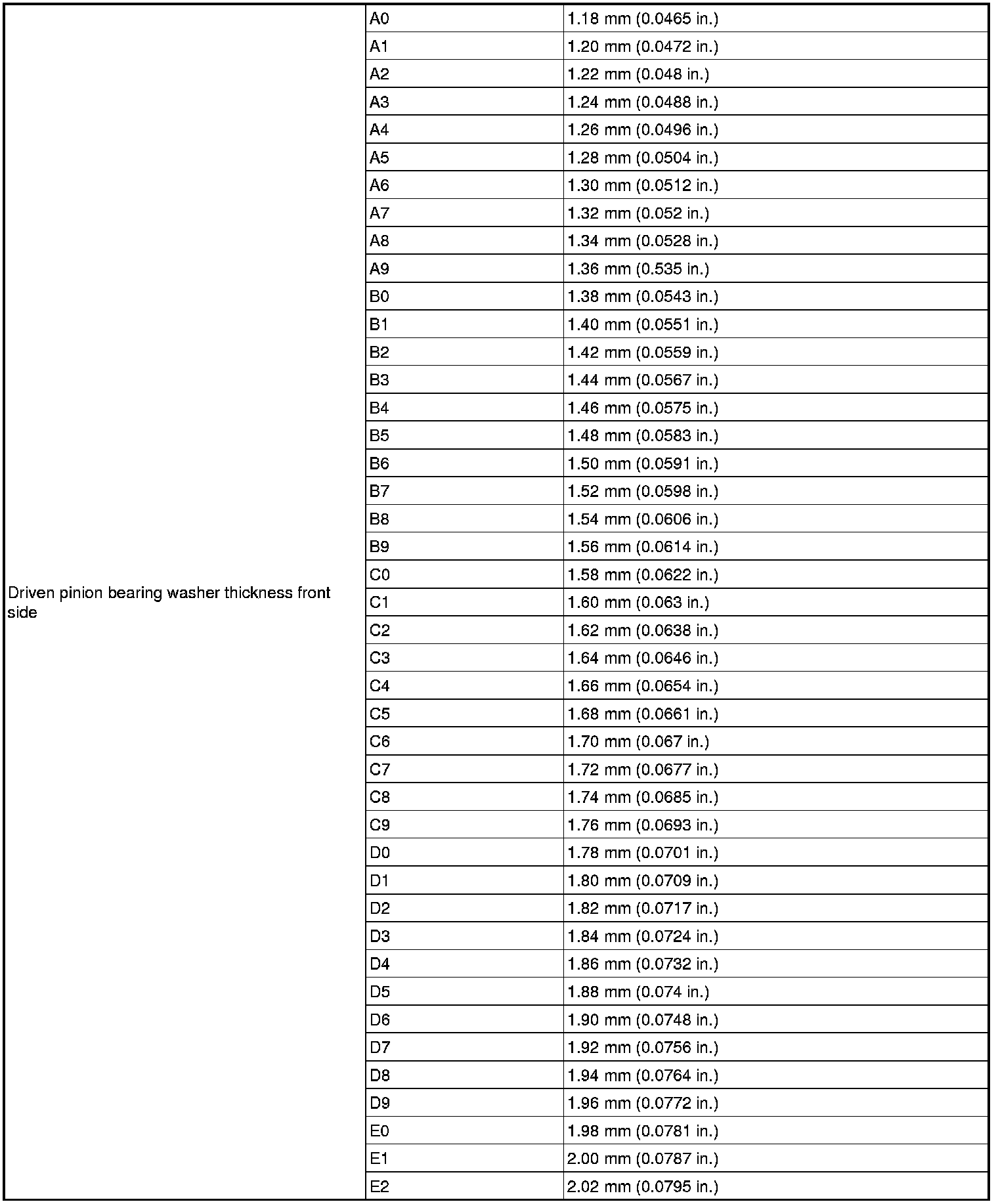

SERVICE SPECIFICATIONS: GF1A TRANSFER: SERVICE DATA
SERVICE DATA
