Components

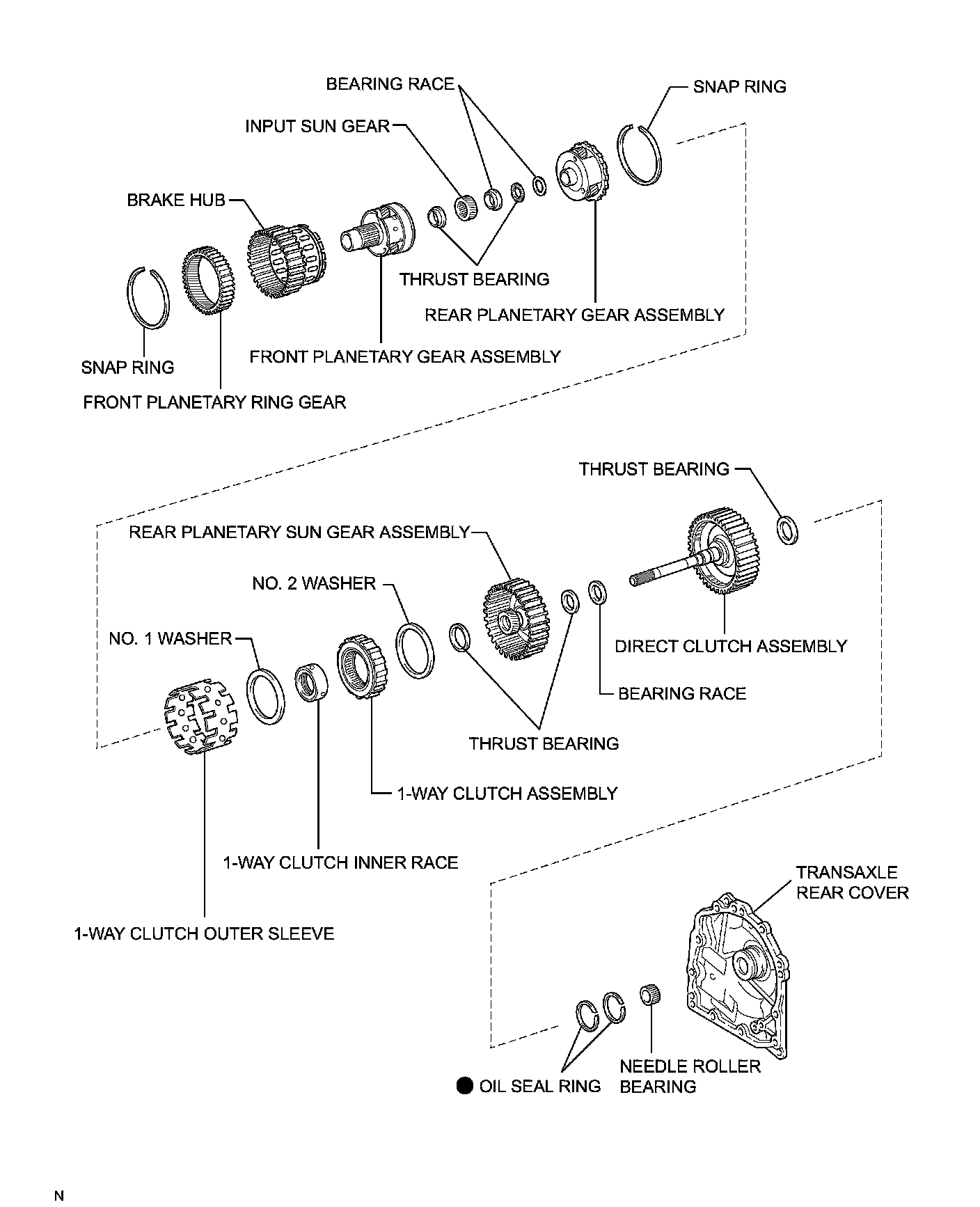

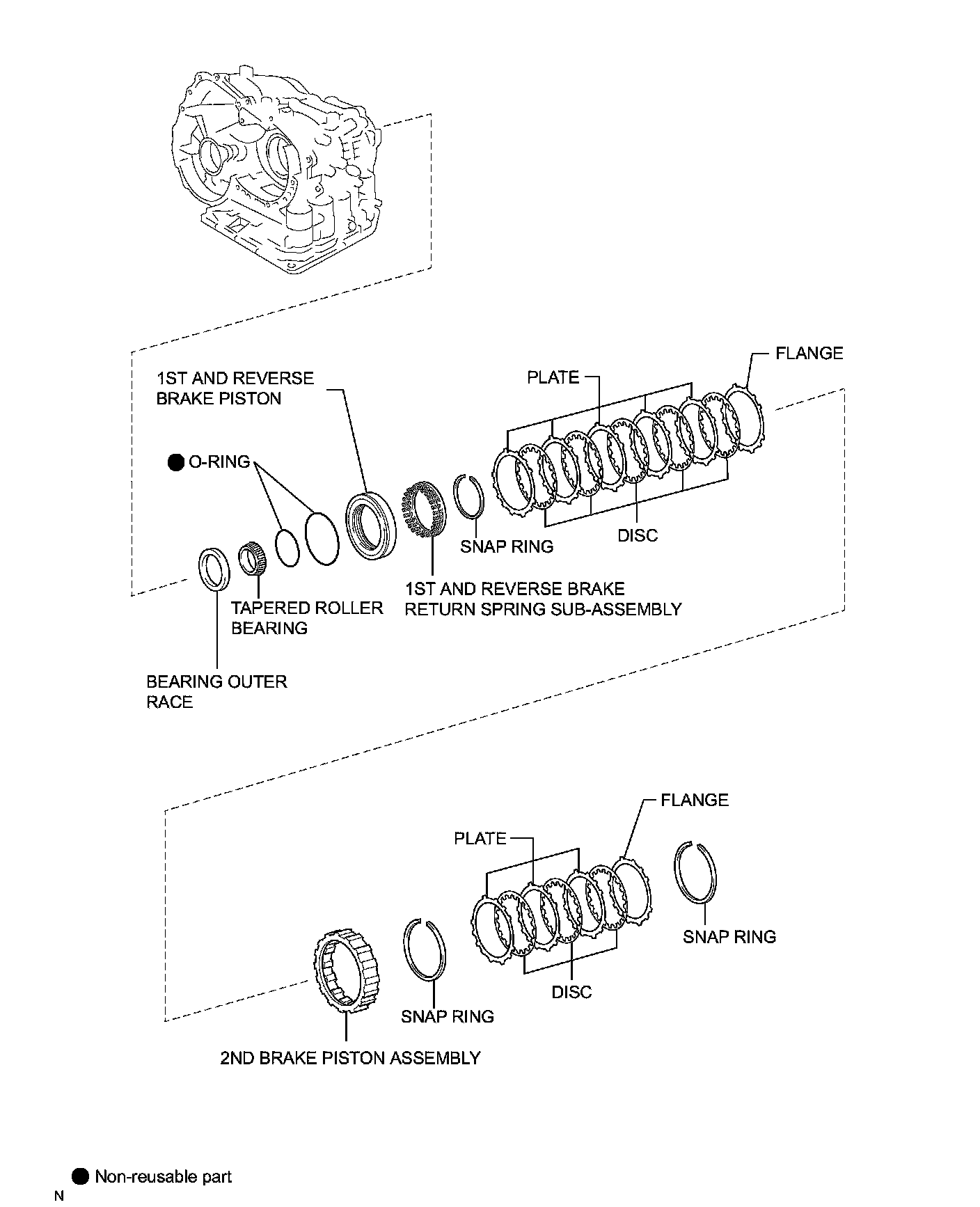

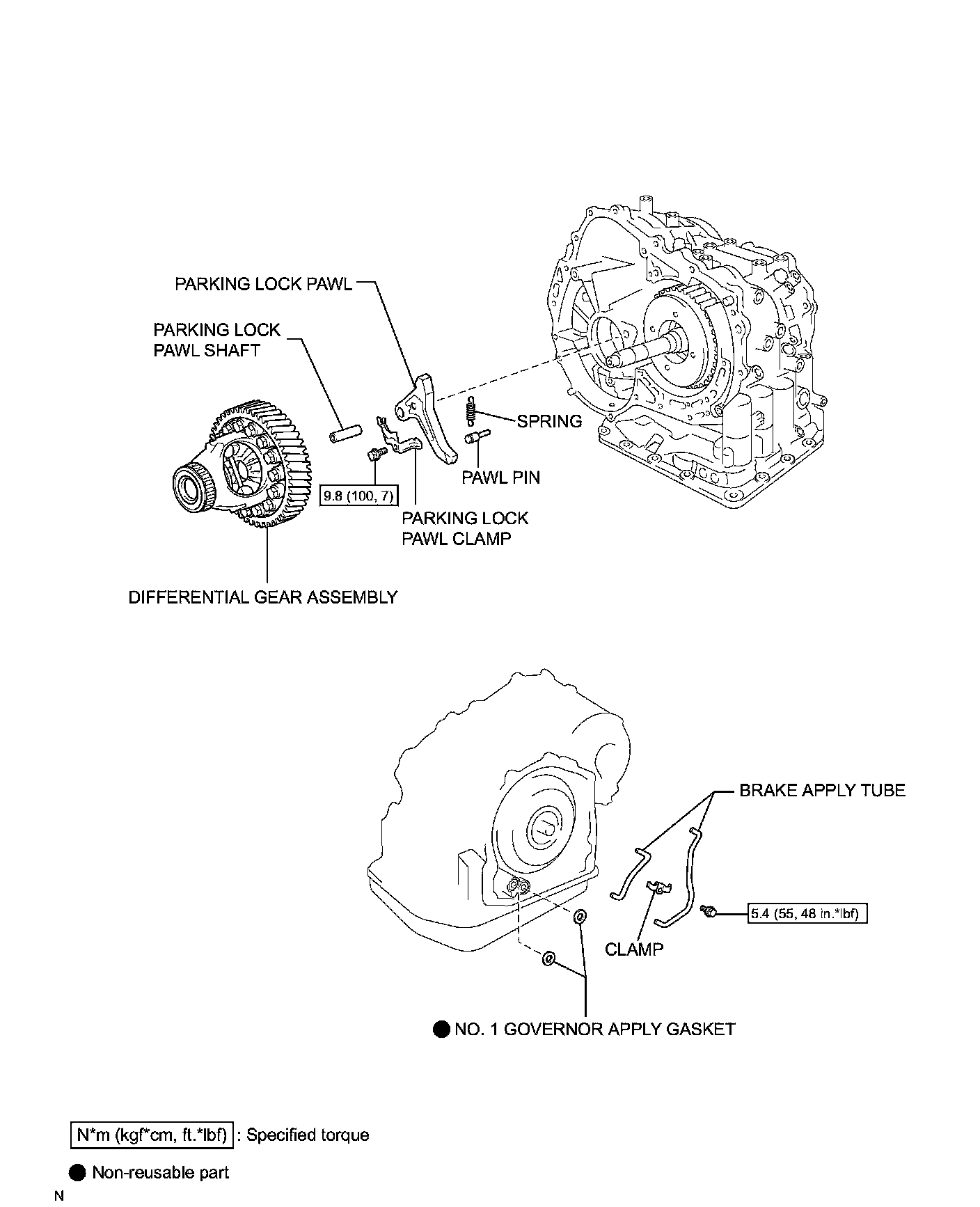

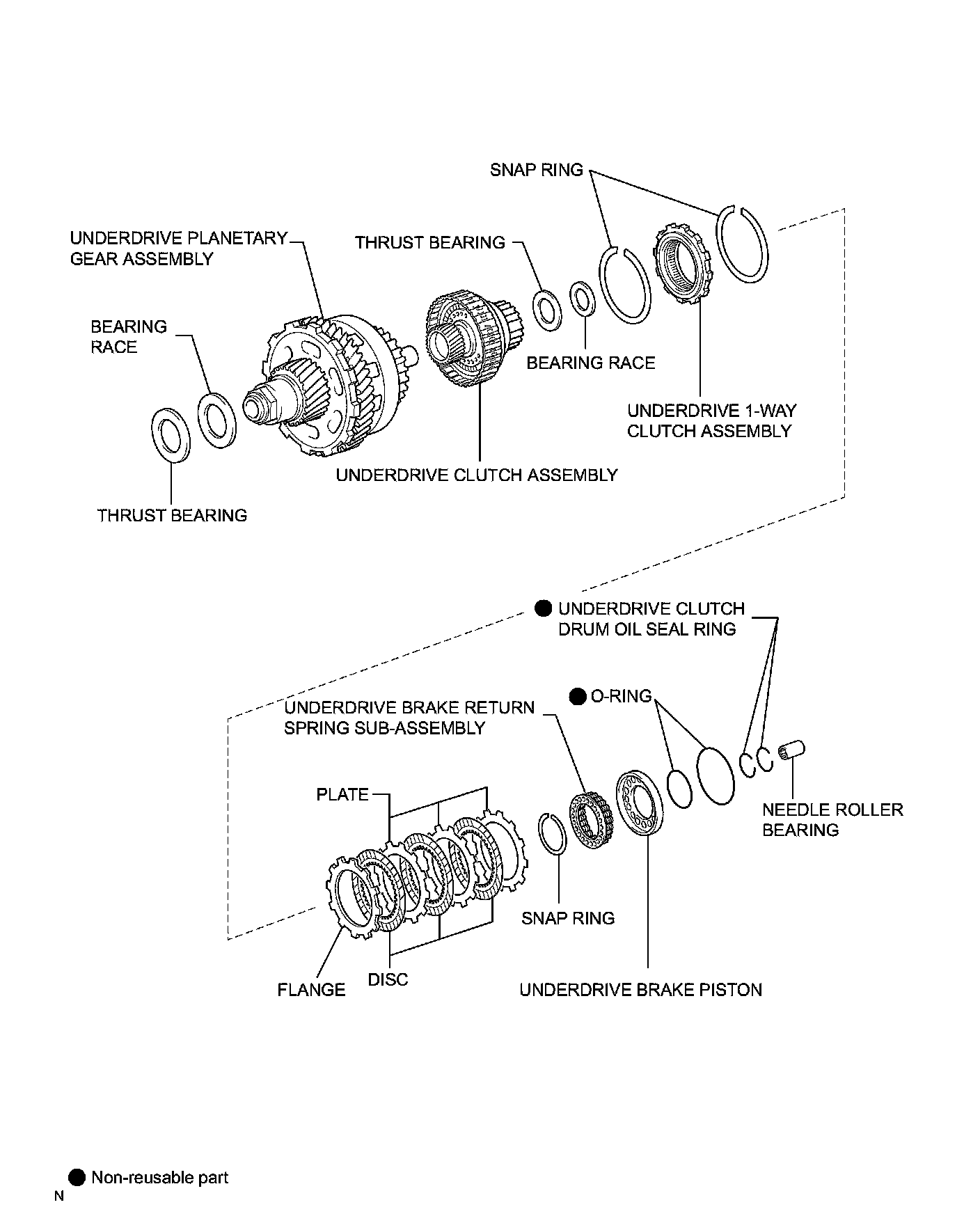

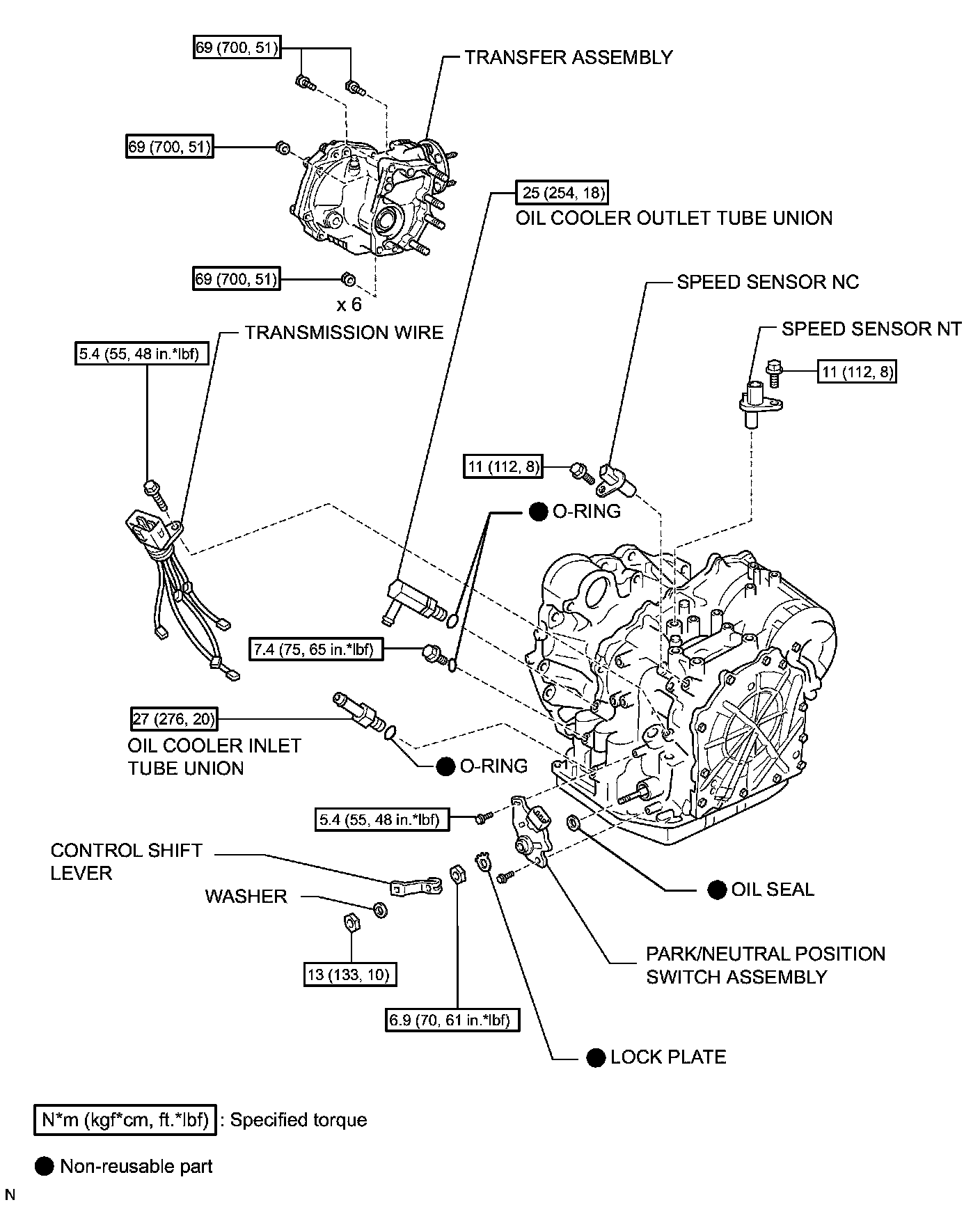

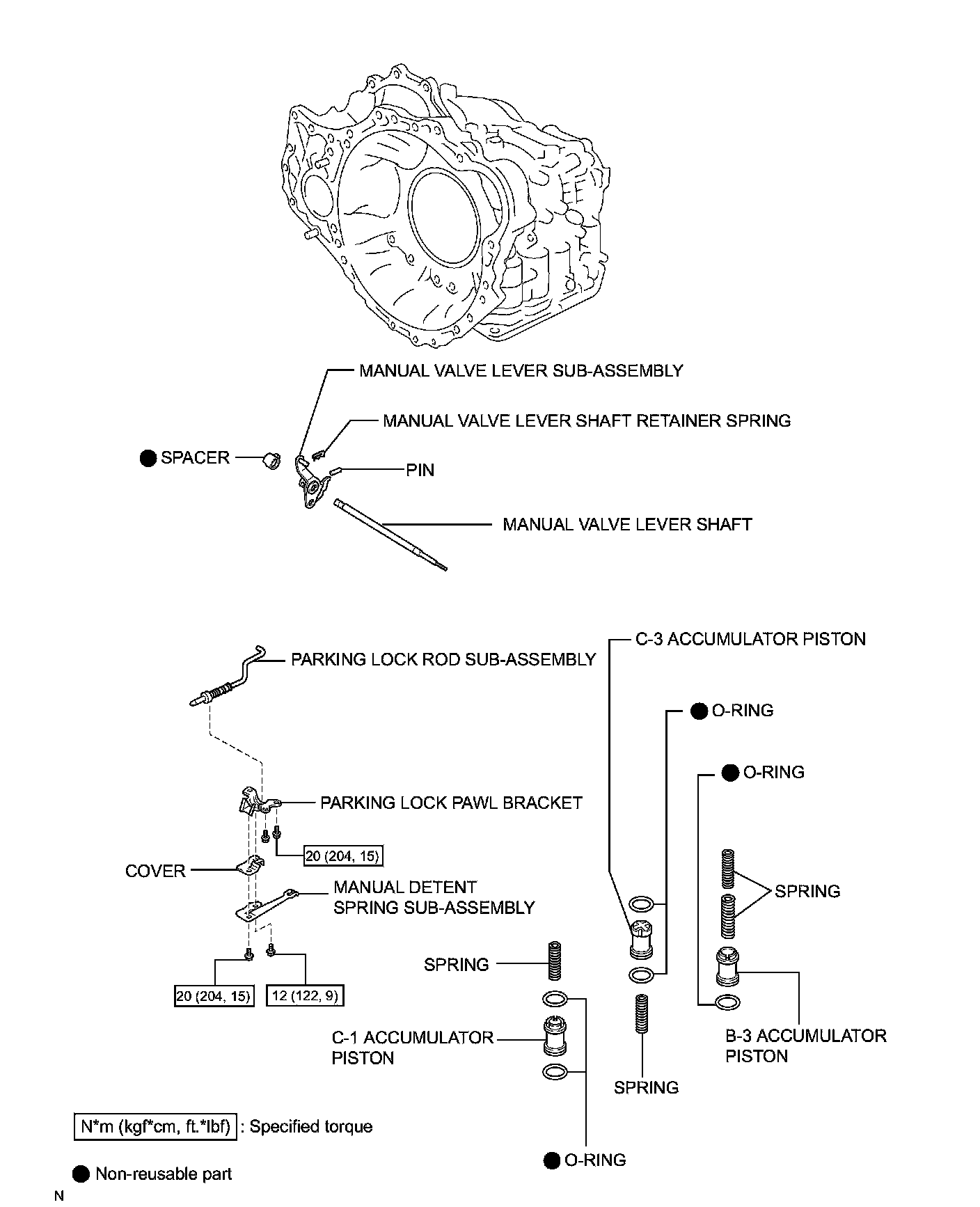

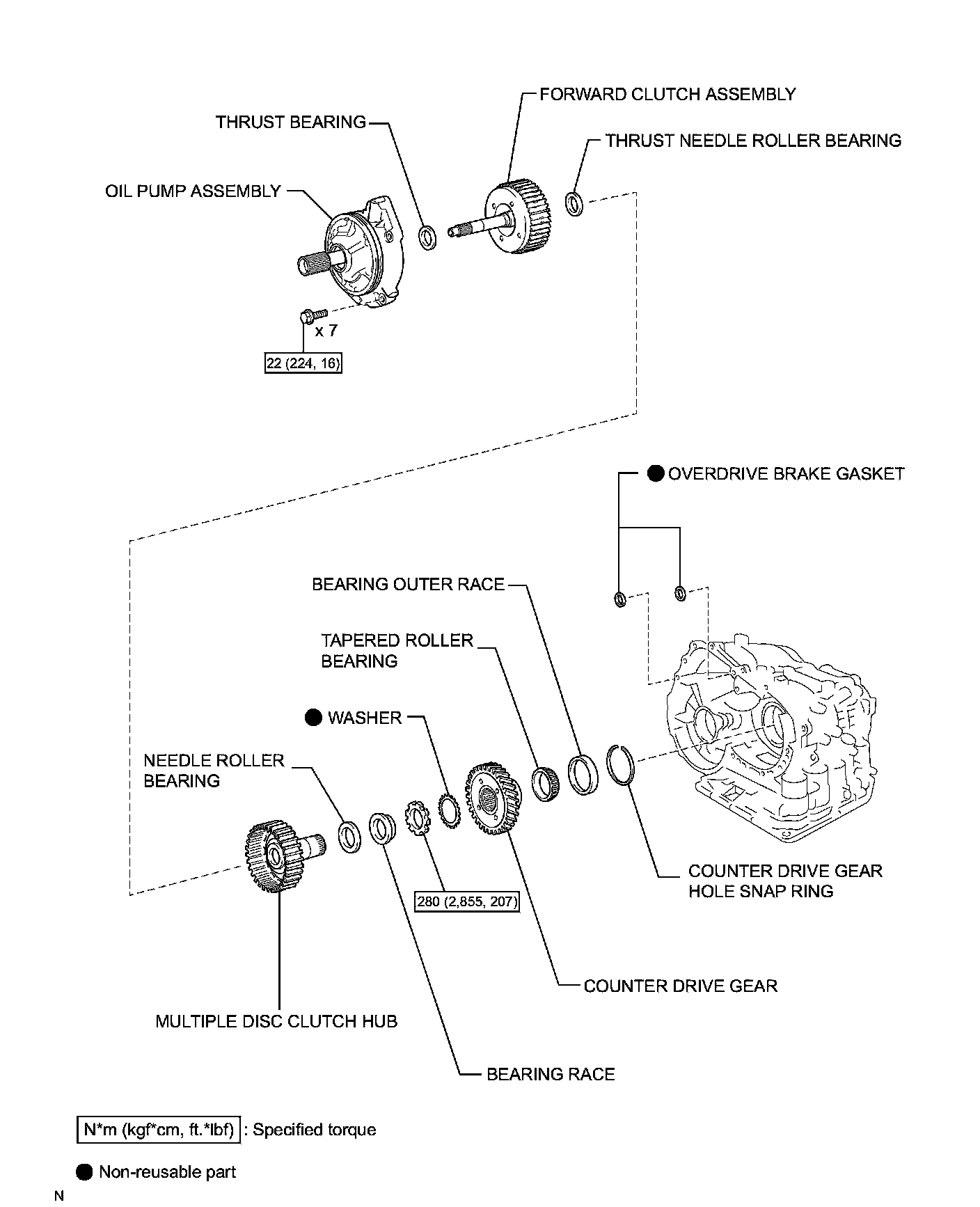

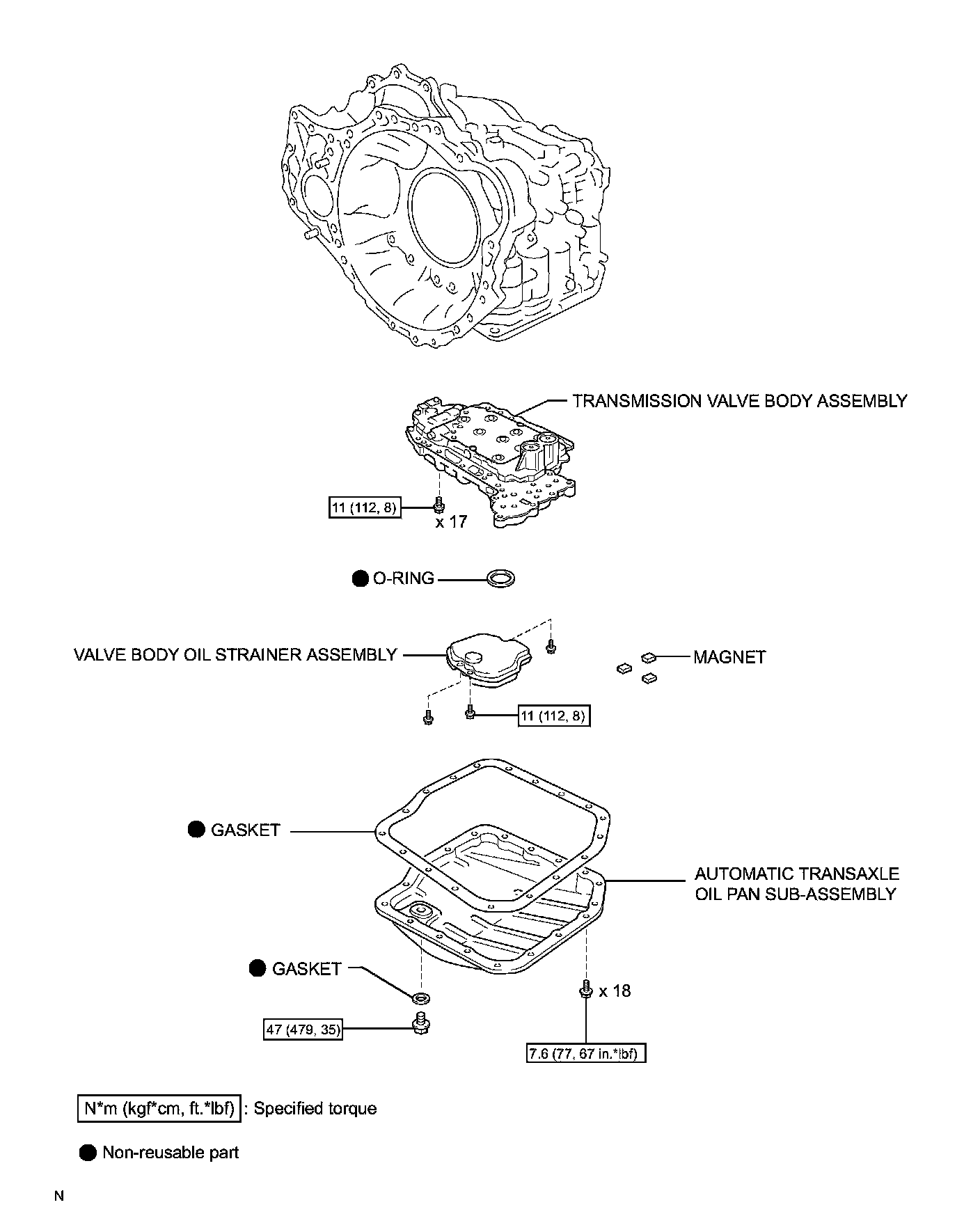

U140F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: COMPONENTS

COMPONENTS

ILLUSTRATION
