Installation

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

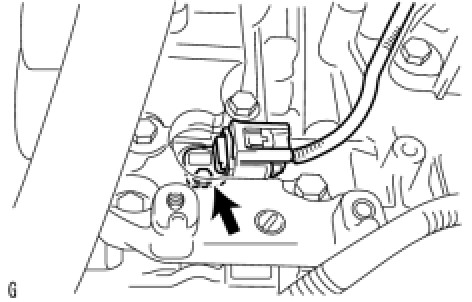

(a) Apply a coat of engine oil to an O-ring of the sensor.
(b) Install the sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Connect the sensor connector.
2. CONNECT COMPRESSOR WITH PULLEY ASSEMBLY
(a) Connect the compressor with pulley Installation.
