2GR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

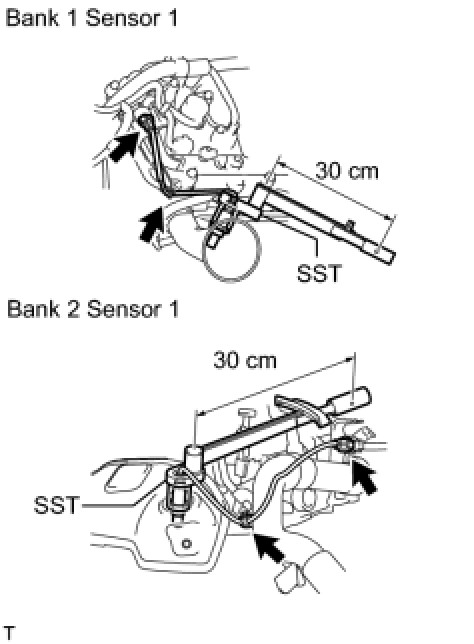

(a) Using SST, install the sensor to the exhaust manifold.
SST: 09224-00010
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
Torque: 44 Nm (449 kgf-cm, 32 ft-lbf)
HINT:
- Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
- Make sure SST and a wrench are connected in a straight line.

(b) Connect the sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. CHECK FOR EXHAUST GAS LEAKS
