2GR-FE IGNITION: IGNITION COIL: INSTALLATION

INSTALLATION

1. INSTALL IGNITION COIL

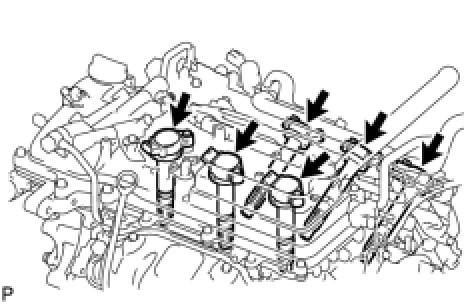

(a) Install the 6 ignition coils with the 6 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the 6 ignition coil connectors.
2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation
3. INSTALL THE V-BANK COVER
