U151F Automatic Transaxle
U151F Automatic Transaxle

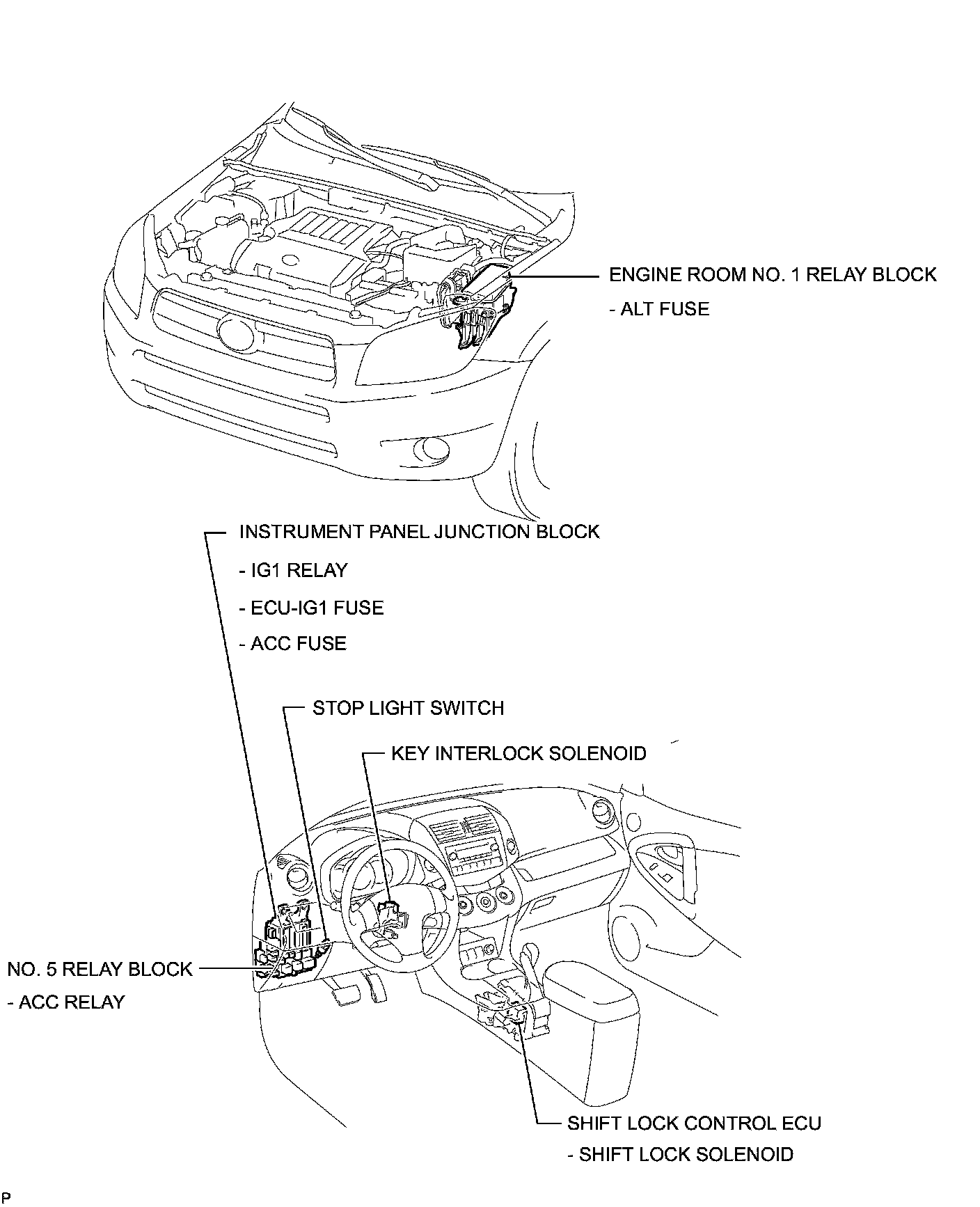

U151F AUTOMATIC TRANSAXLE: SHIFT LOCK SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
