Water Pump Torque and Sequence

WATER PUMP ASSEMBLY

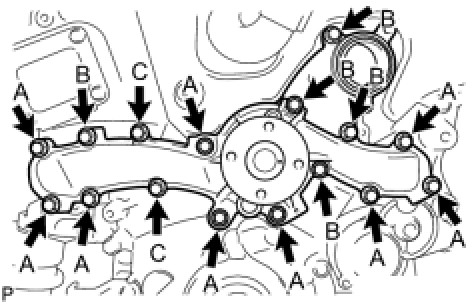

Install a new water pump gasket and the water pump with the 16 bolts.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque 9.1 Nm (93 kgf-cm, 81 in-lbf)
