Torque Specifications








SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

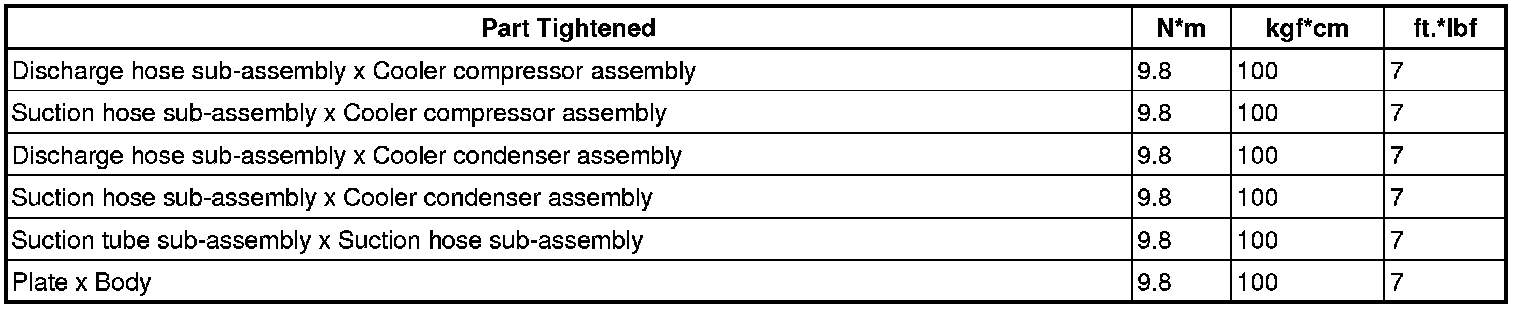

REFRIGERANT LINE

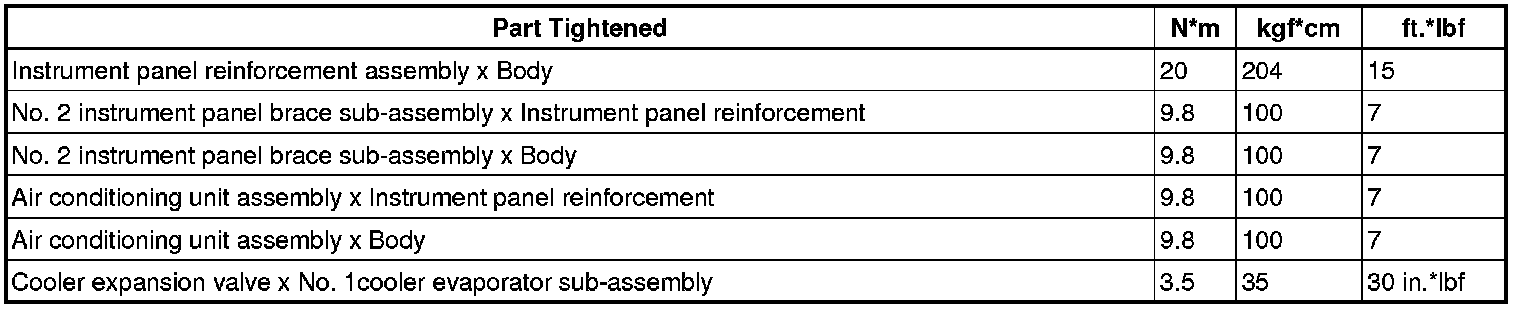

AIR CONDITIONING UNIT

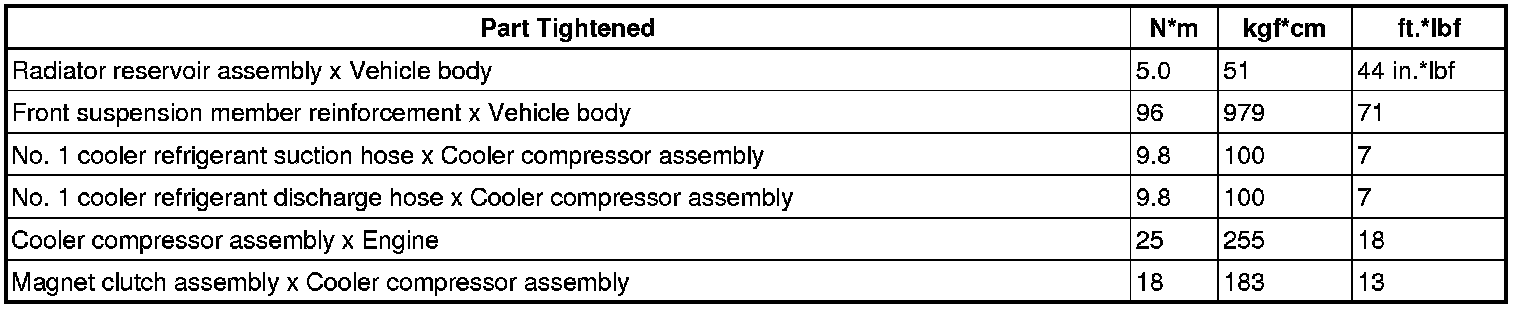

COMPRESSOR AND PULLEY (for 2AR-FE)

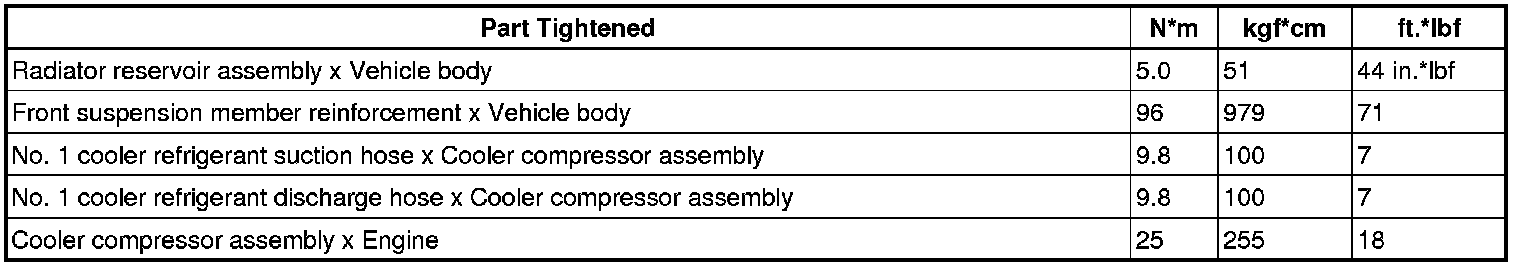

COMPRESSOR AND PULLEY (for 2GR-FE)





CONDENSER
