Control Module: Locations

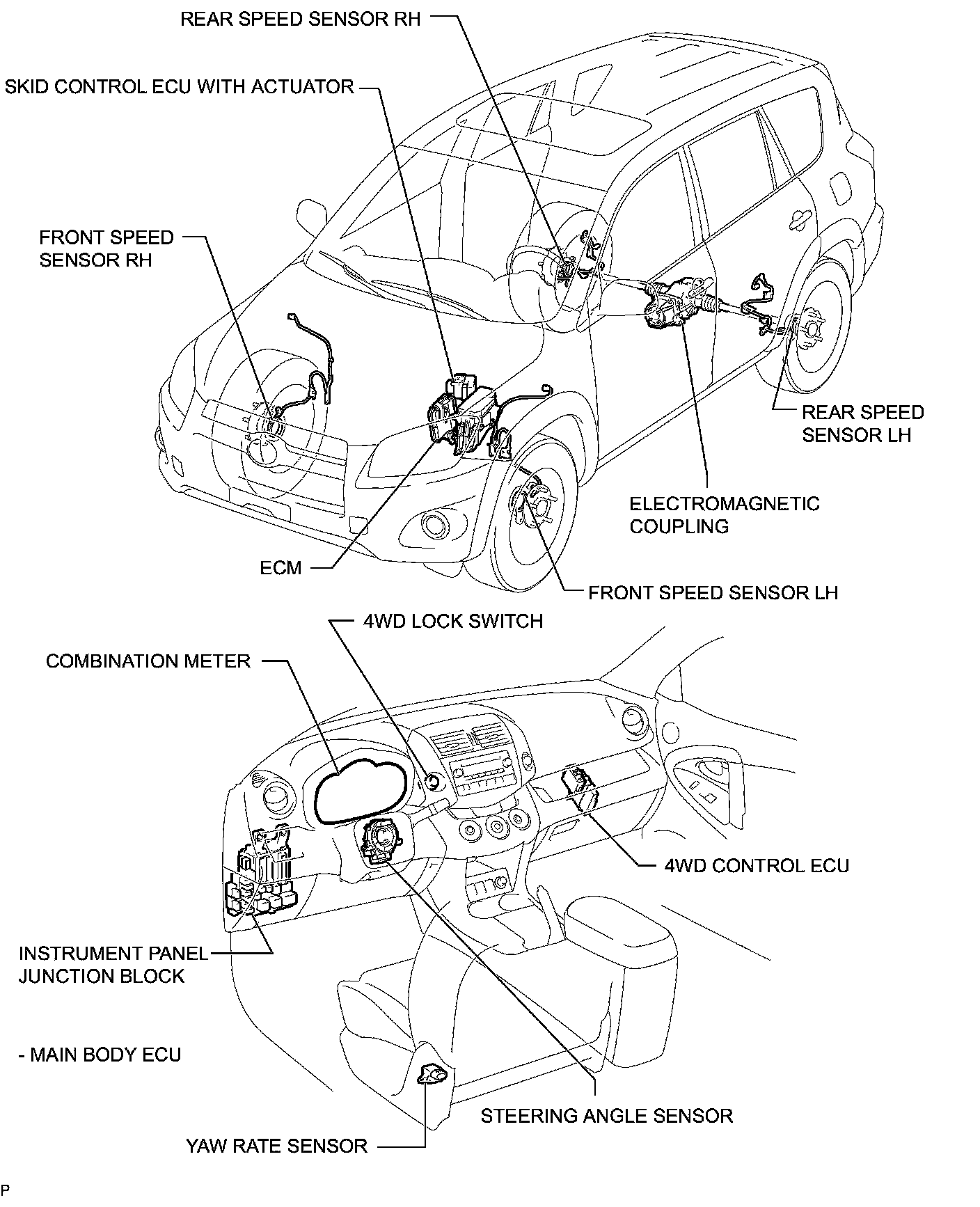

DIFFERENTIAL: ACTIVE TORQUE CONTROL 4WD SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
Instrument Panel:
