Transmission Control Systems: Locations

A750E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PARTS LOCATION

PARTS LOCATION

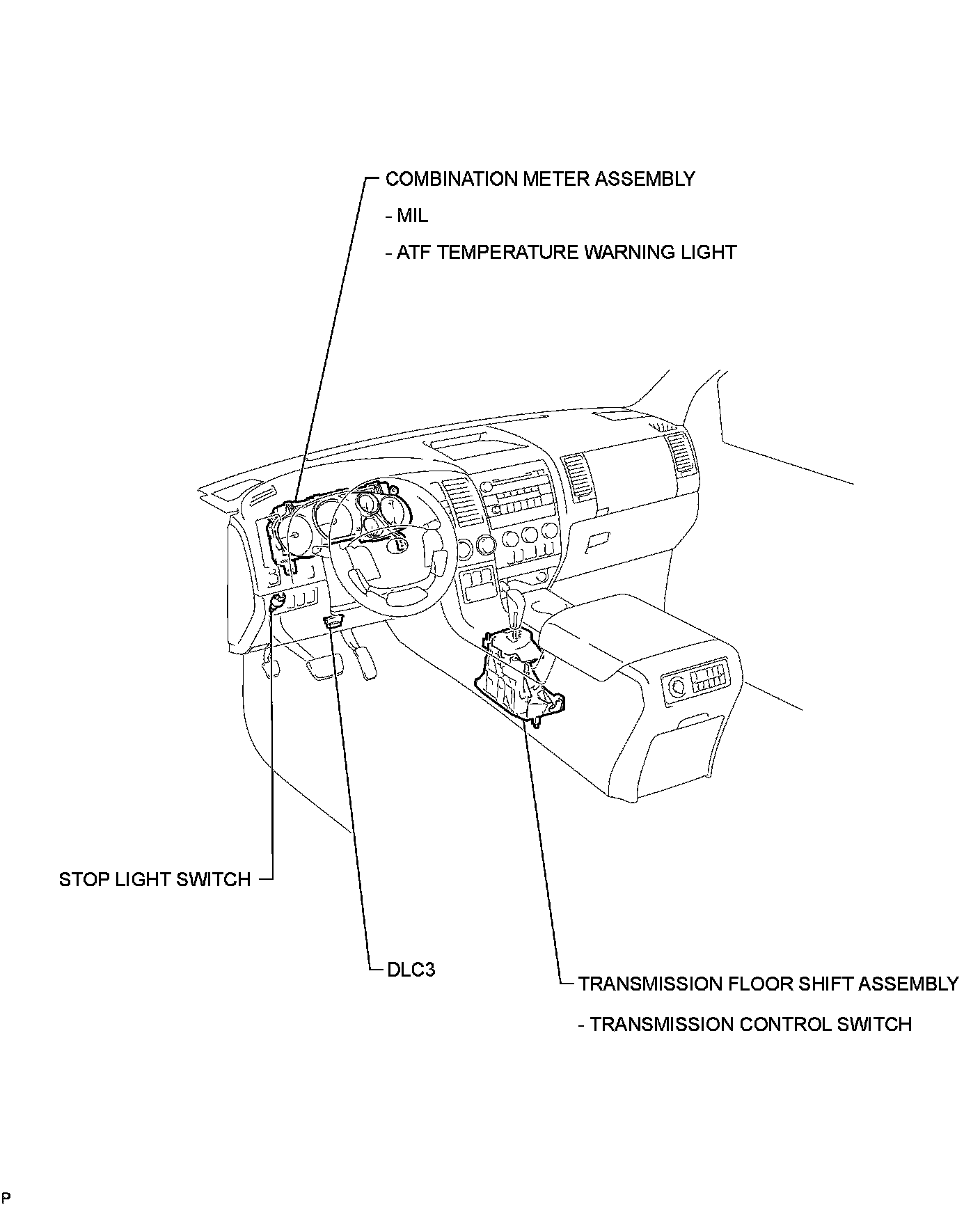

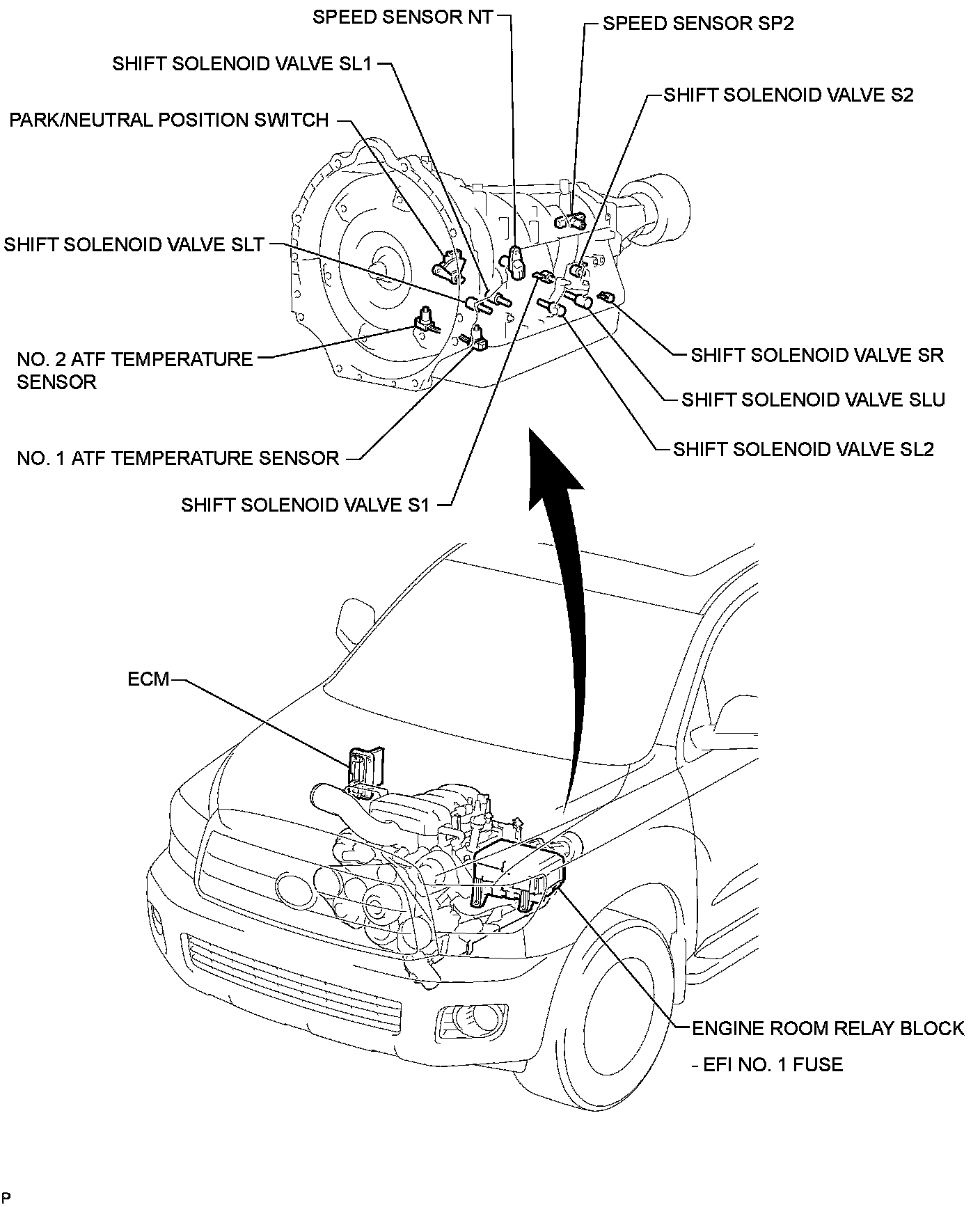

ILLUSTRATION
