Symptom Related Diagnostic Procedures

A750E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

HINT:
- If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts below.
- The Matrix Chart is divided into 3 chapters.
Chapter 1:

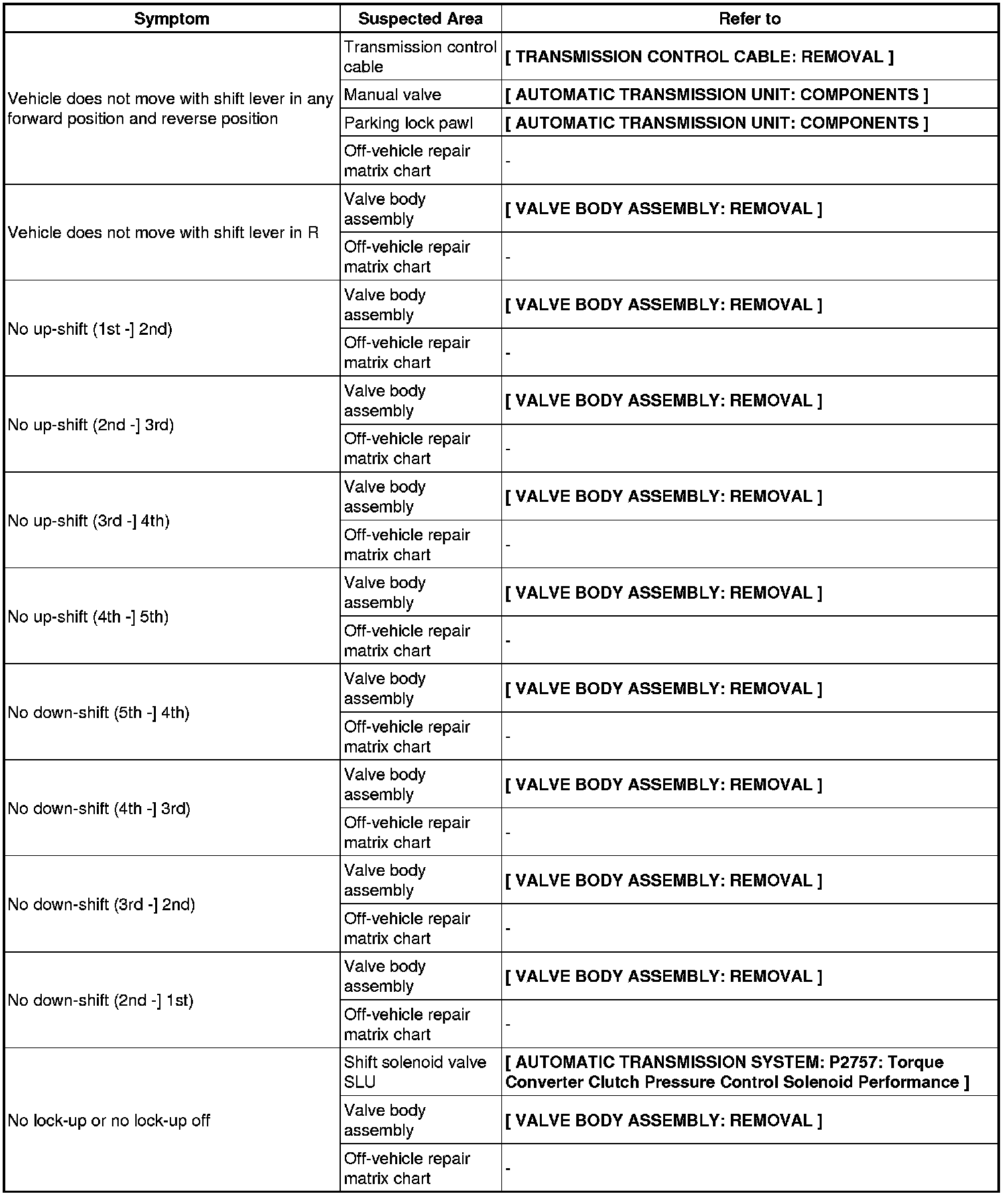

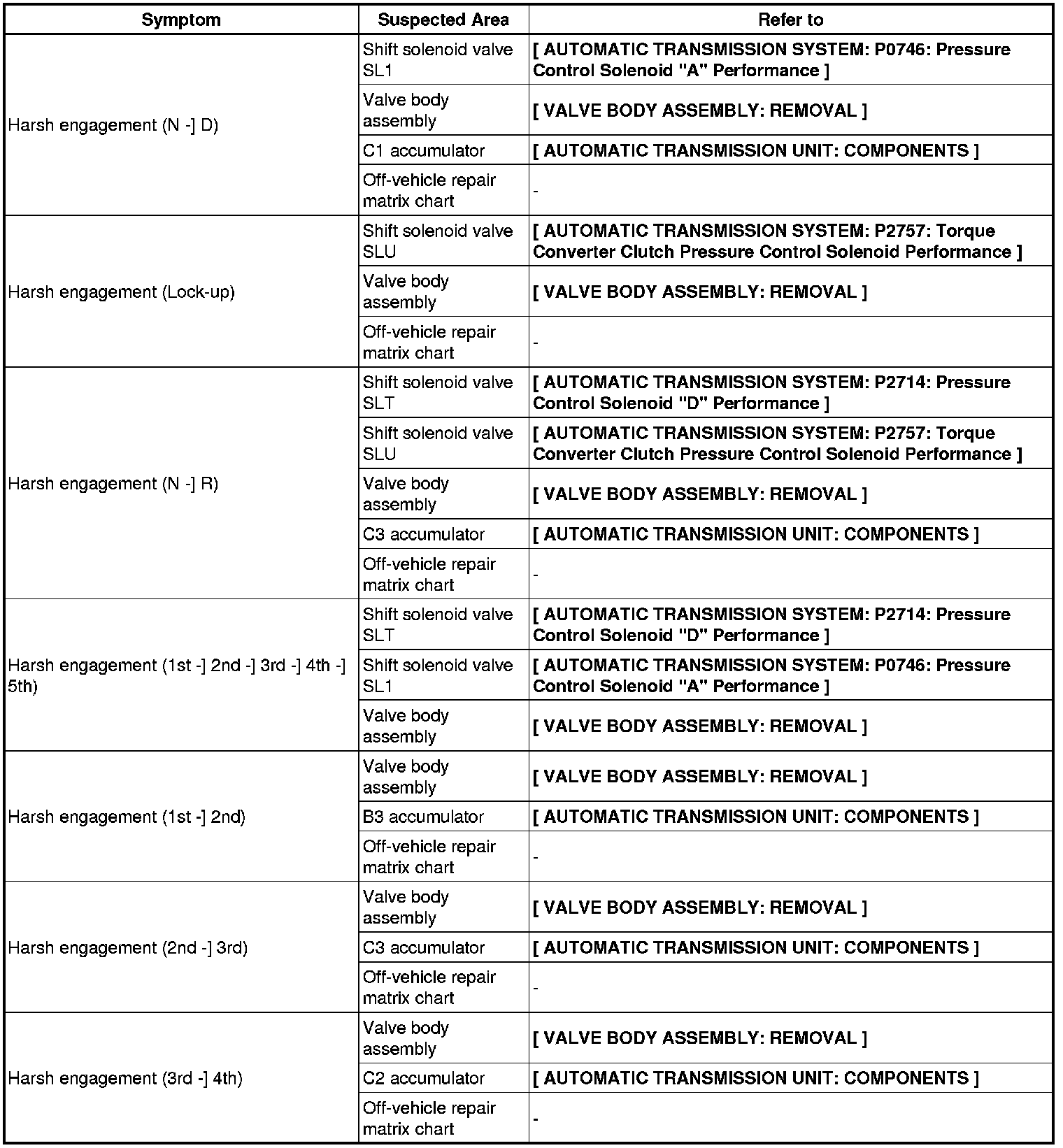

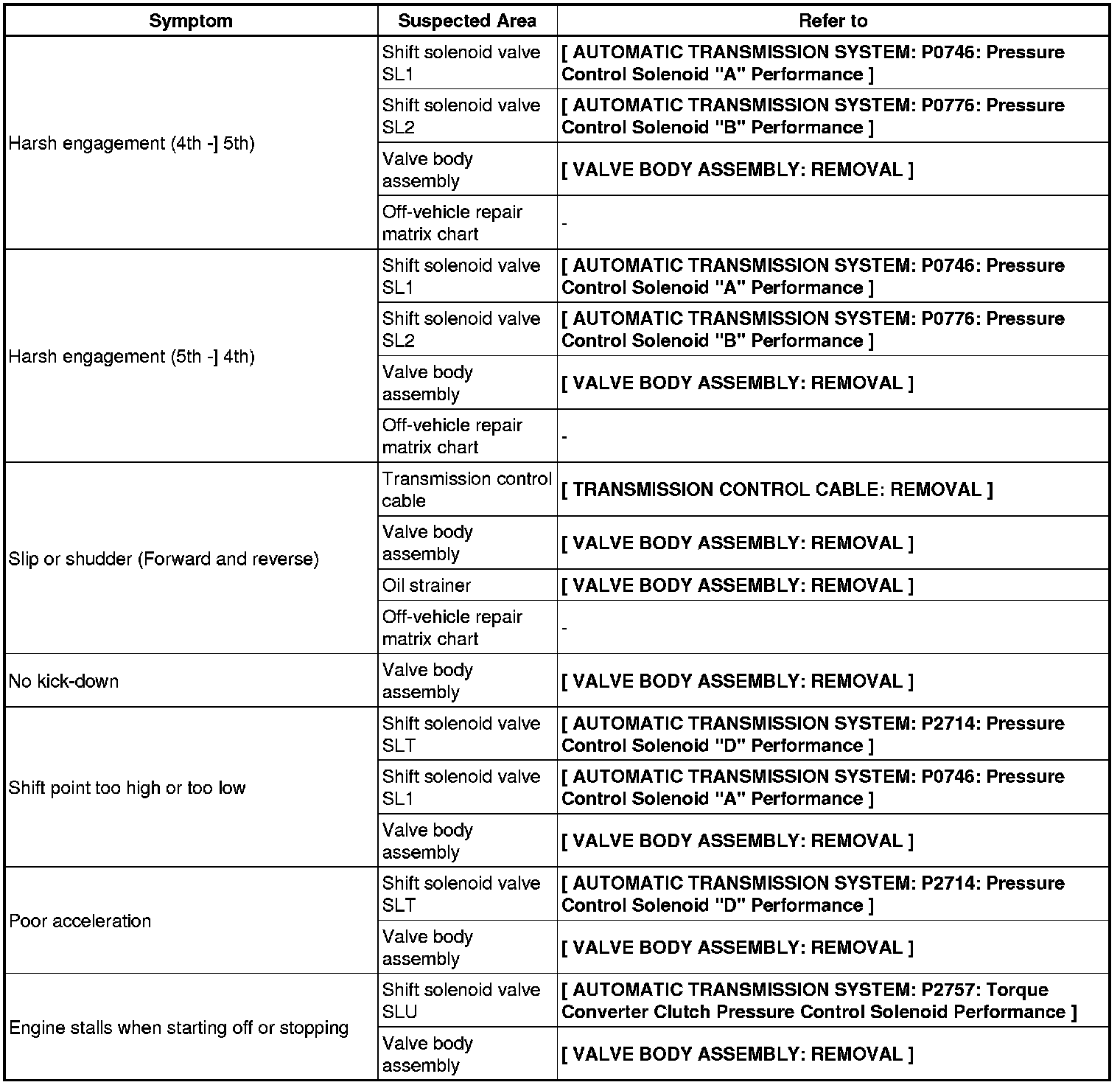

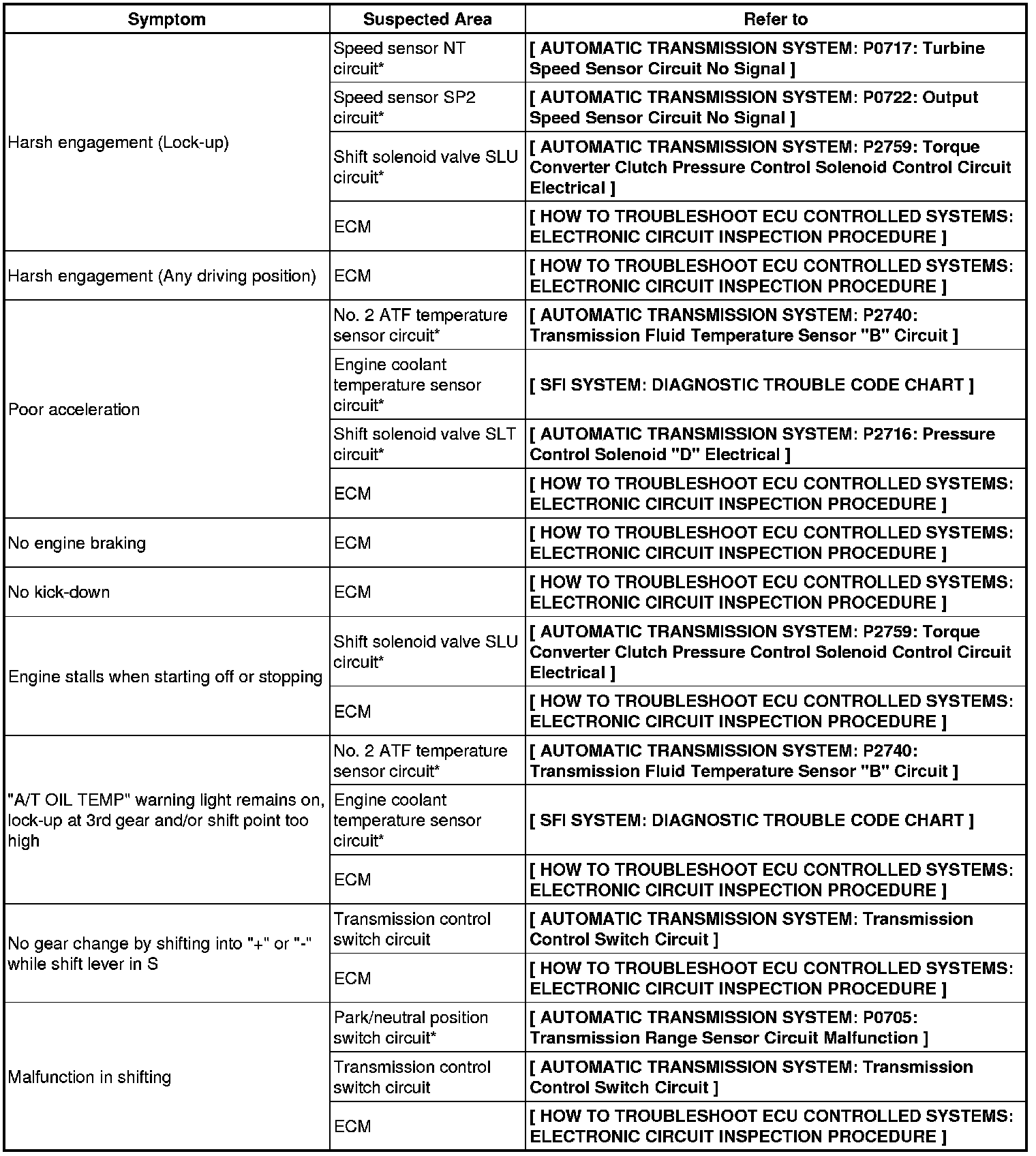

Refer to the table below when the cause of the trouble is considered to be electrical.
- If the instruction "Proceed to Next Circuit Inspection Shown in Problem Symptoms Table"" is given in the flowchart of a circuit, proceed to the next circuit in the table to continue the check.
- If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.
- *: When the circuit is defective, a DTC may be output.

1. Chapter 1: Electronic Circuit Matrix Chart

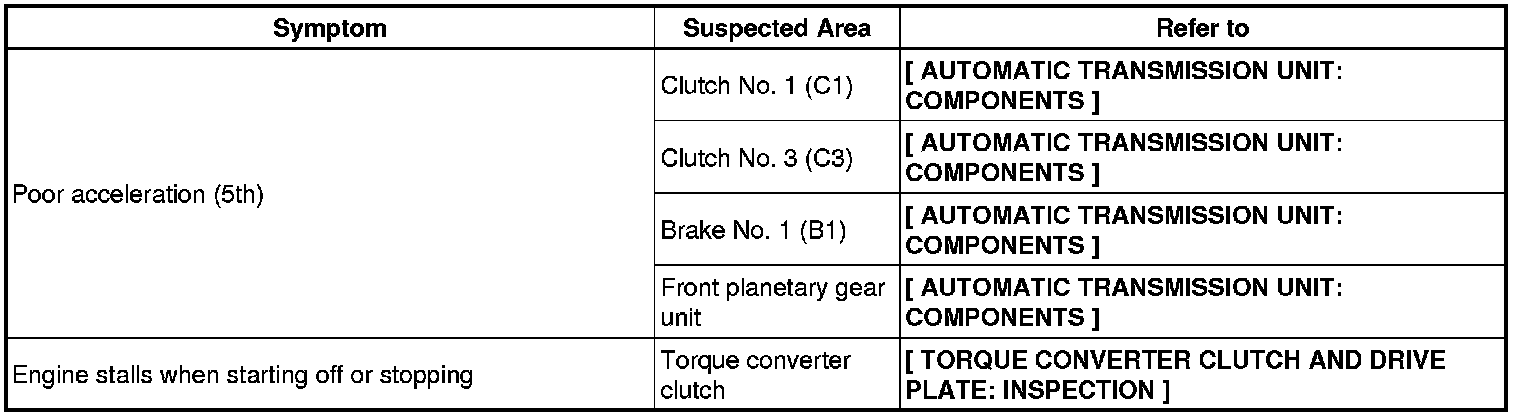

2. Chapter 2: On-Vehicle Repair

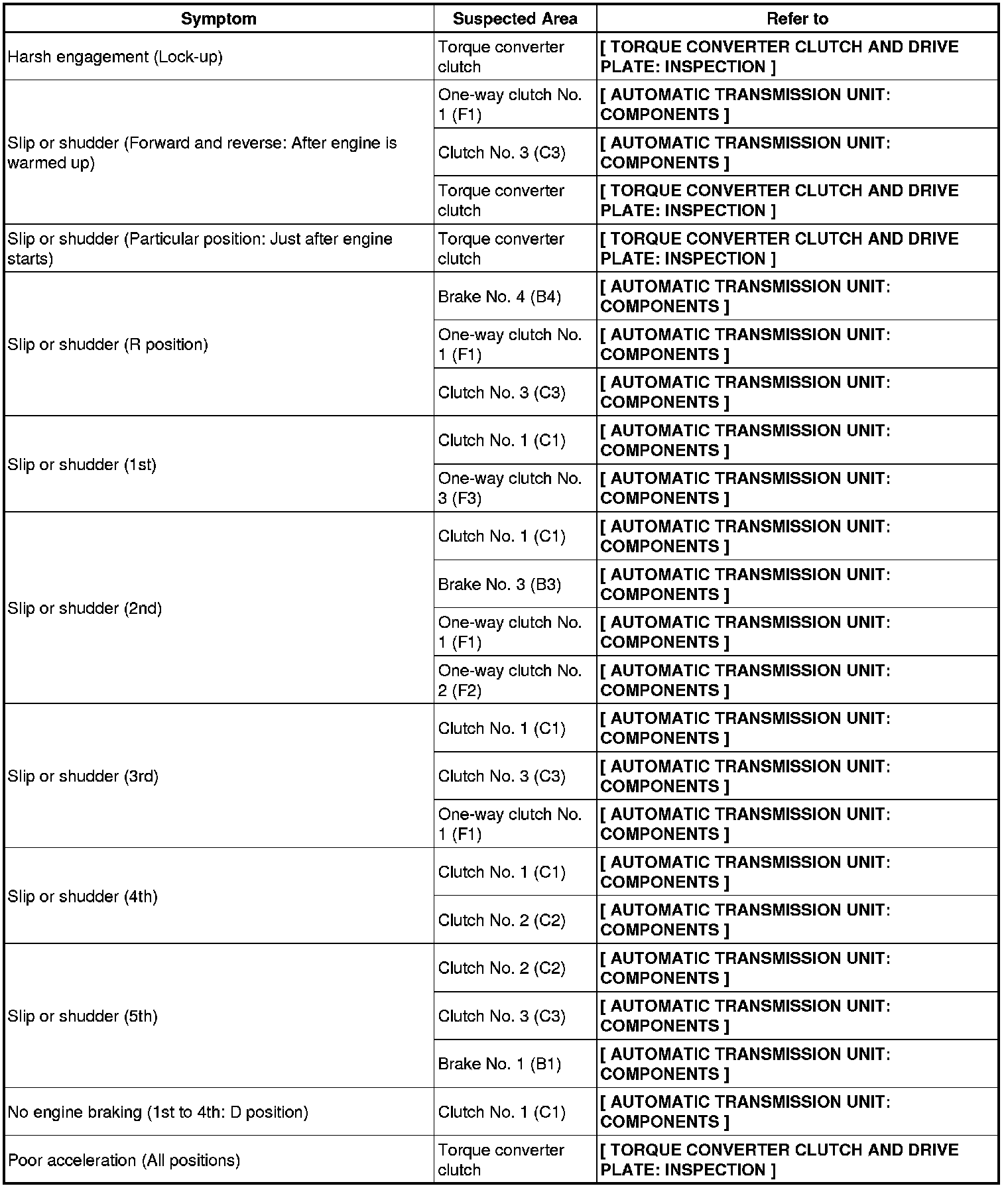

3. Chapter 3: Off-Vehicle Repair
