Service Data

SPECIFICATIONS: A750E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

SERVICE DATA

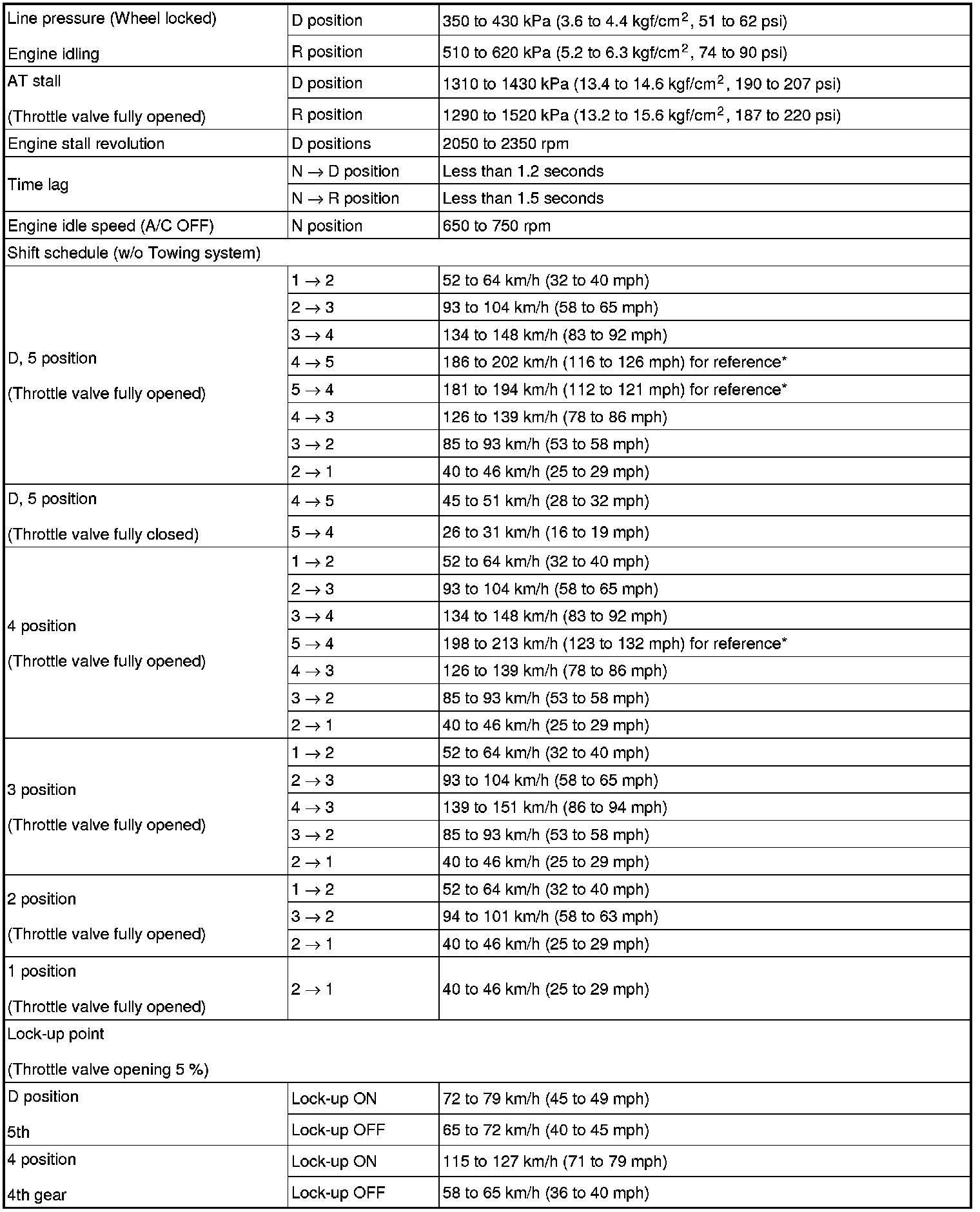

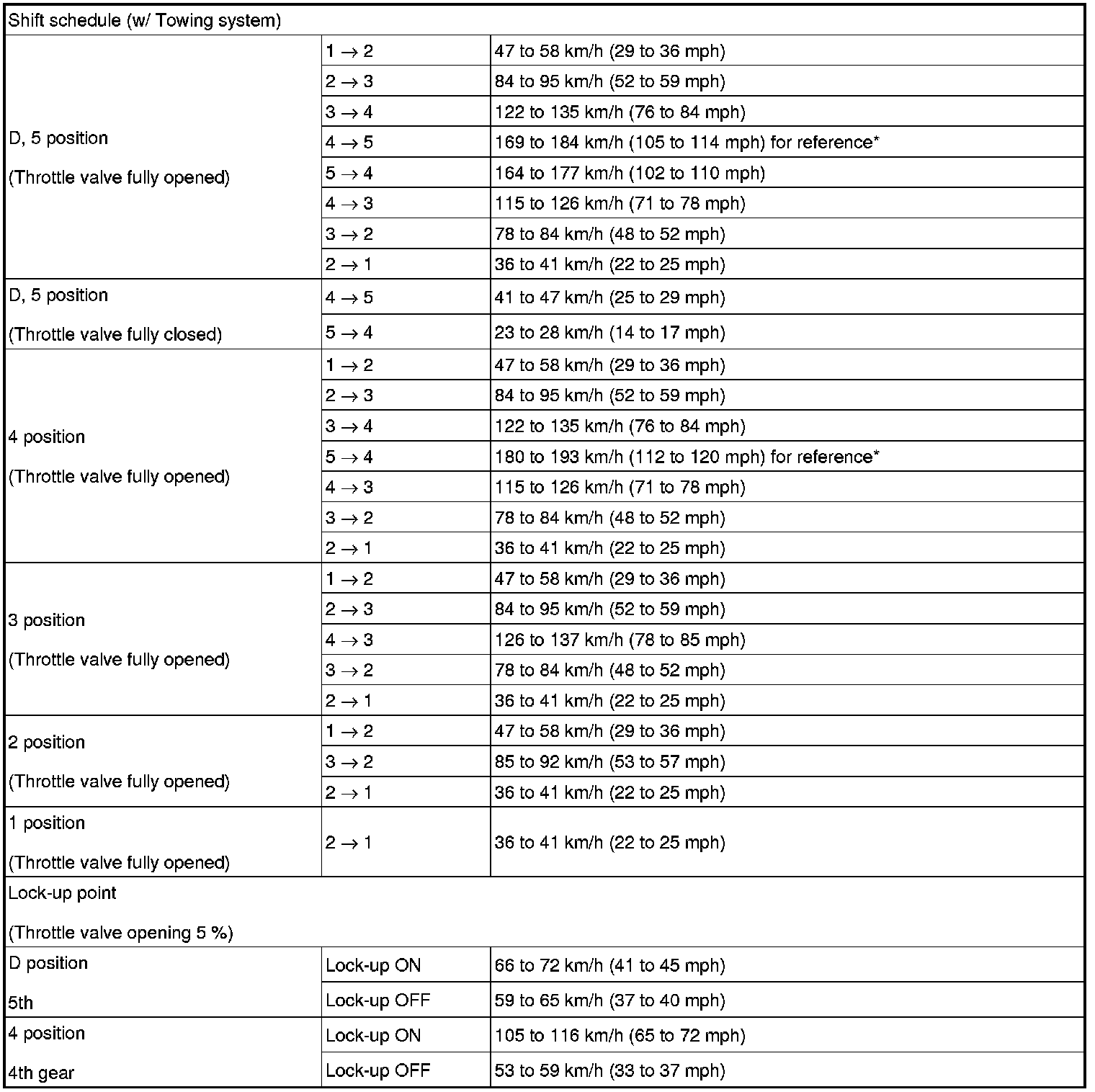

*: Maximum speed is 180 km/h (112 mph), so this value is for reference.

CAUTION: Strictly observe speed limits when performing the confirmation.

TORQUE CONVERTER CLUTCH AND DRIVE PLATE

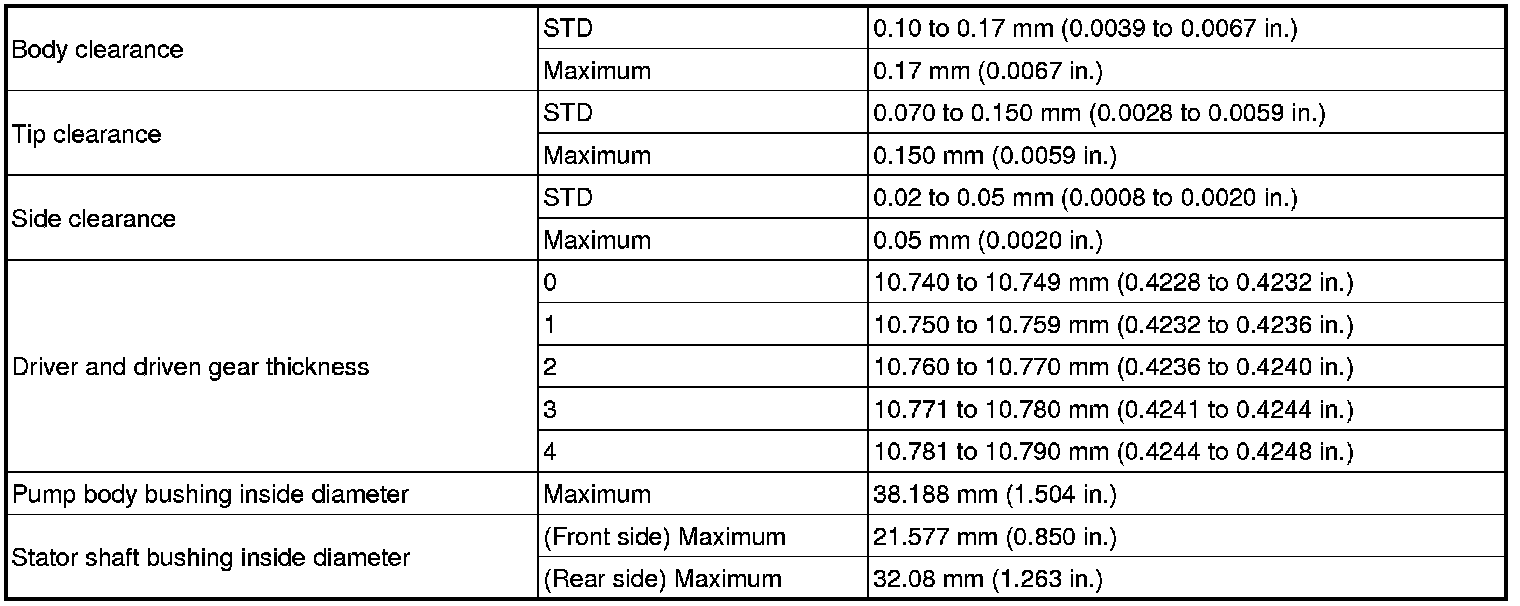

OIL PUMP





2nd BRAKE





B3 BRAKE

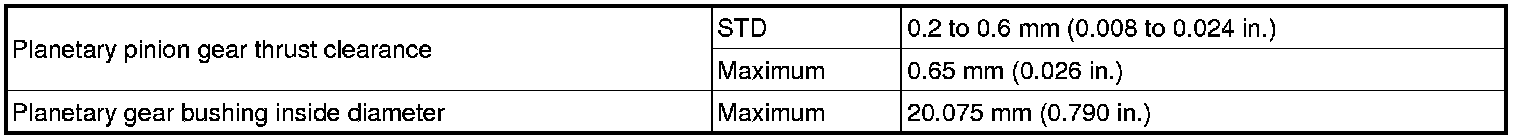

FRONT PLANETARY GEAR





BRAKE PISTON No. 1





CENTER PLANETARY GEAR





B2 BRAKE





REAR PLANETARY RING GEAR FLANGE

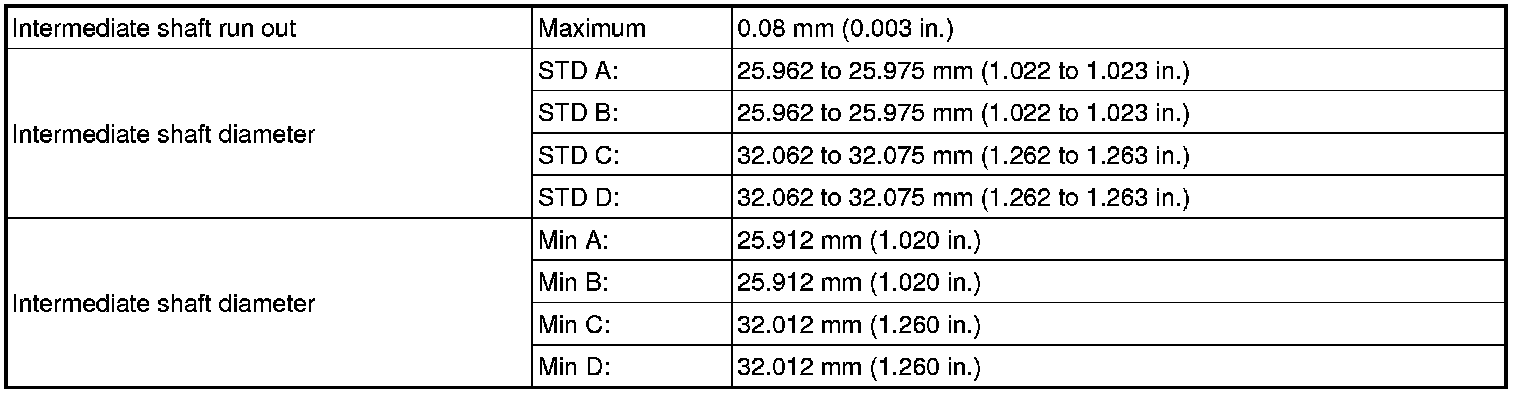

INTERMEDIATE SHAFT





REAR PLANETARY GEAR





1ST AND REVERSE BRAKE





DIRECT CLUTCH

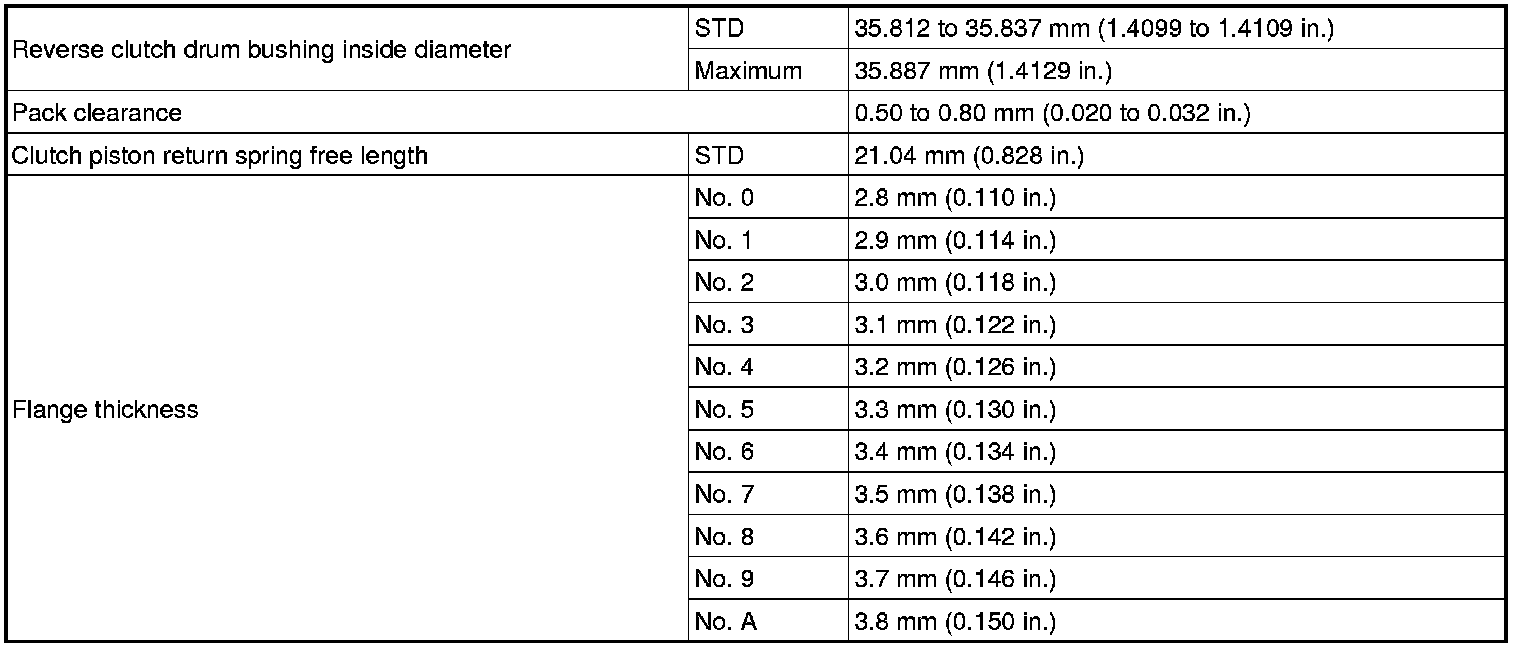

REVERSE CLUTCH





FORWARD CLUTCH





OUTPUT SHAFT BEARING





ACCUMULATOR
