Connecting Rod Bearing

CONNECTING ROD

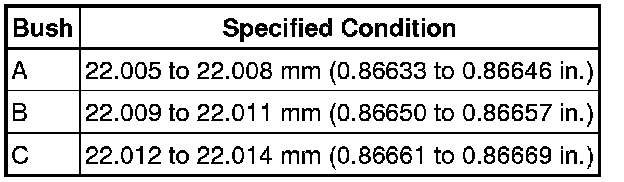

Standard Bush Inside Diameter





There are 6 sizes of standard bearings, marked 2, 3, 4, 5, 6 and 7.

EXAMPLE:
Connecting rod cap "3" + Crankshaft "1" = "4" (Use bearing "4")

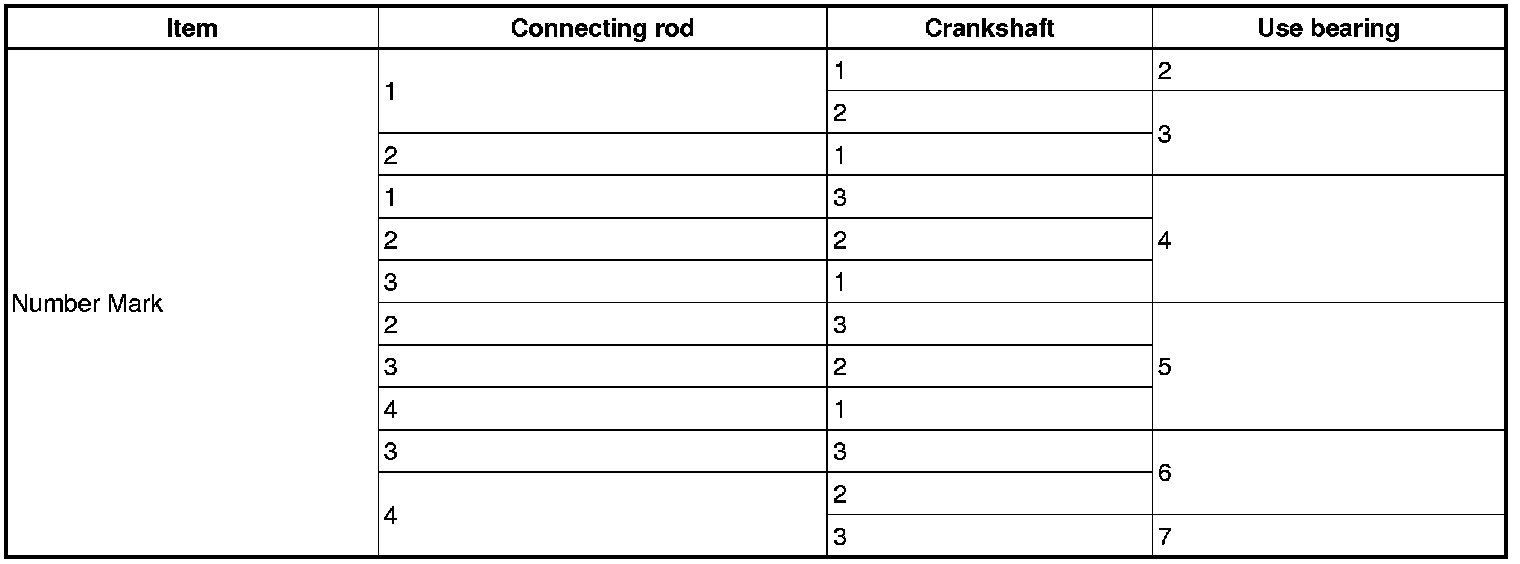

Standard Bearing Chart:

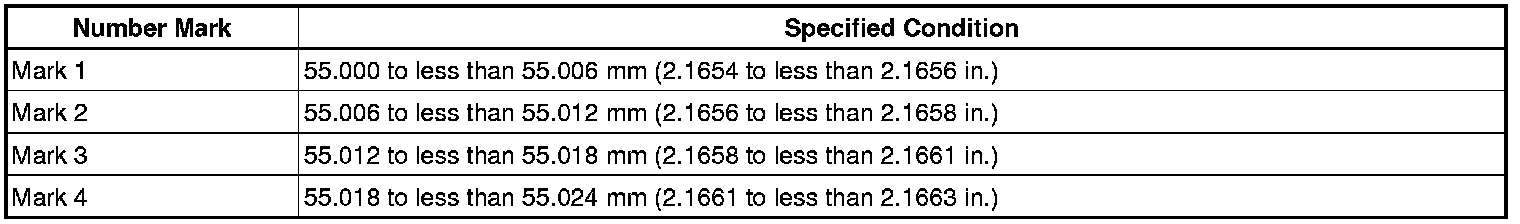

Standard Connecting Rod Big End Inside Diameter:

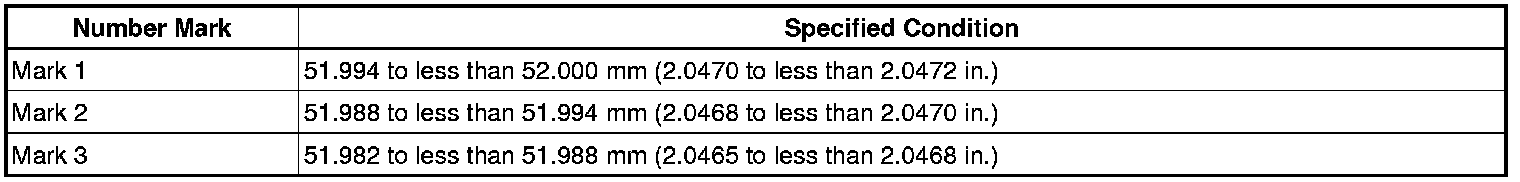

Standard Crankshaft Crank Pin Diameter:

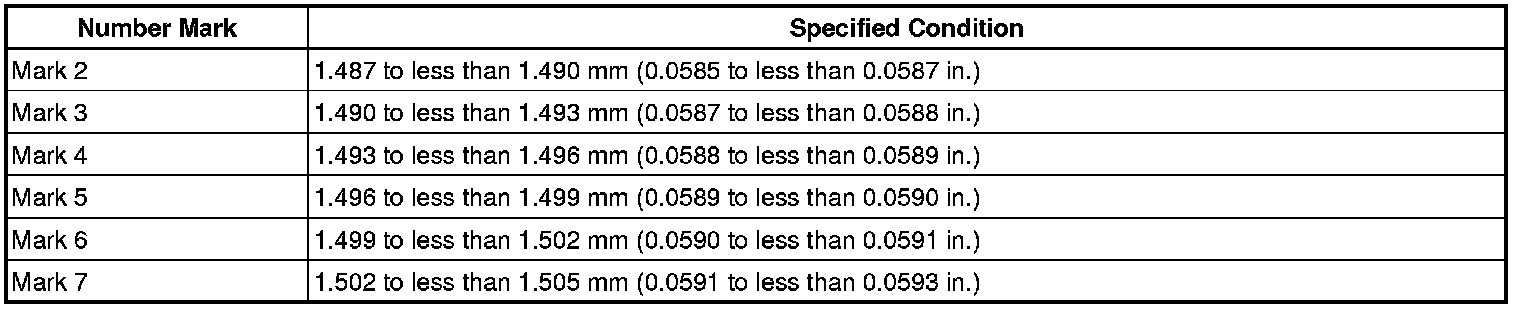

Standard Sized Bearing Center Wall Thickness:
