System Specifications

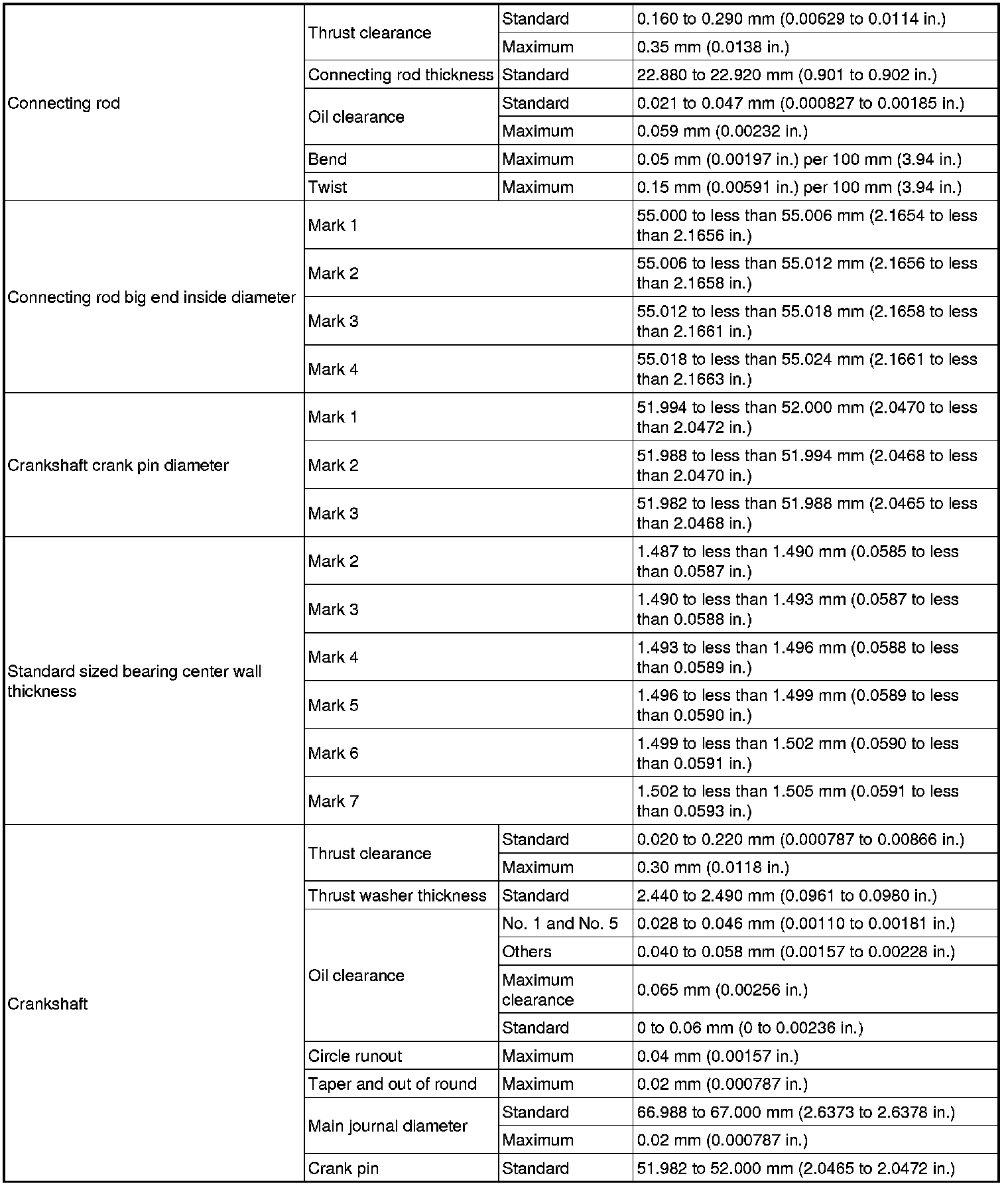

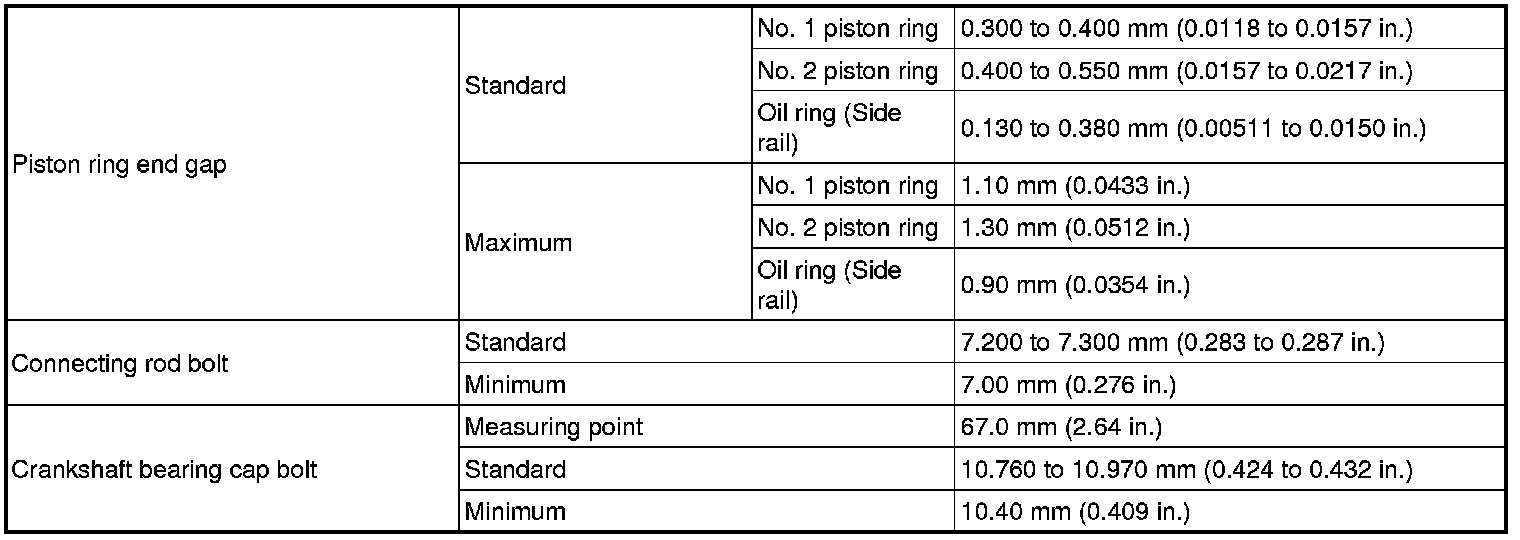

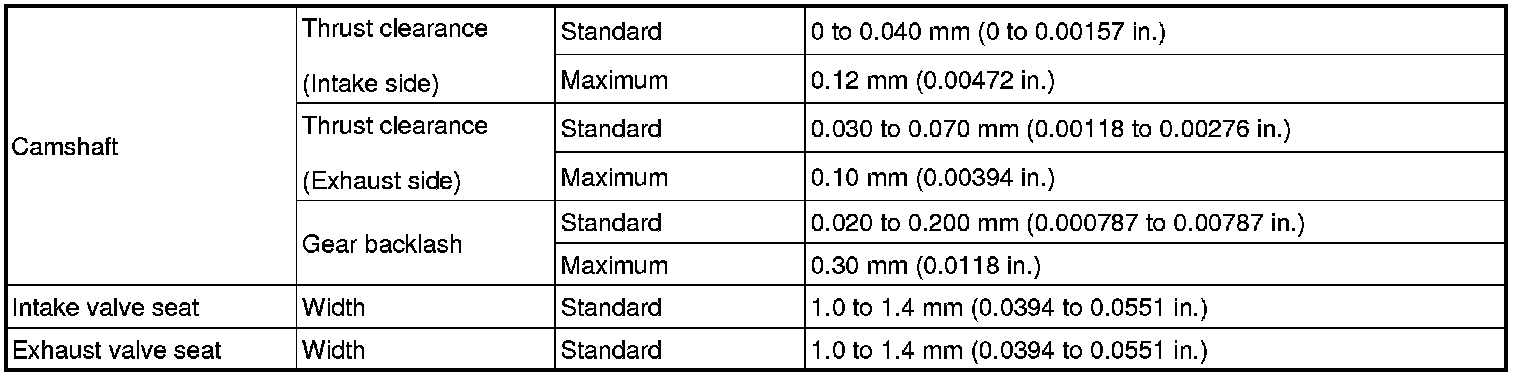

SPECIFICATIONS: 2UZ-FE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

Engine

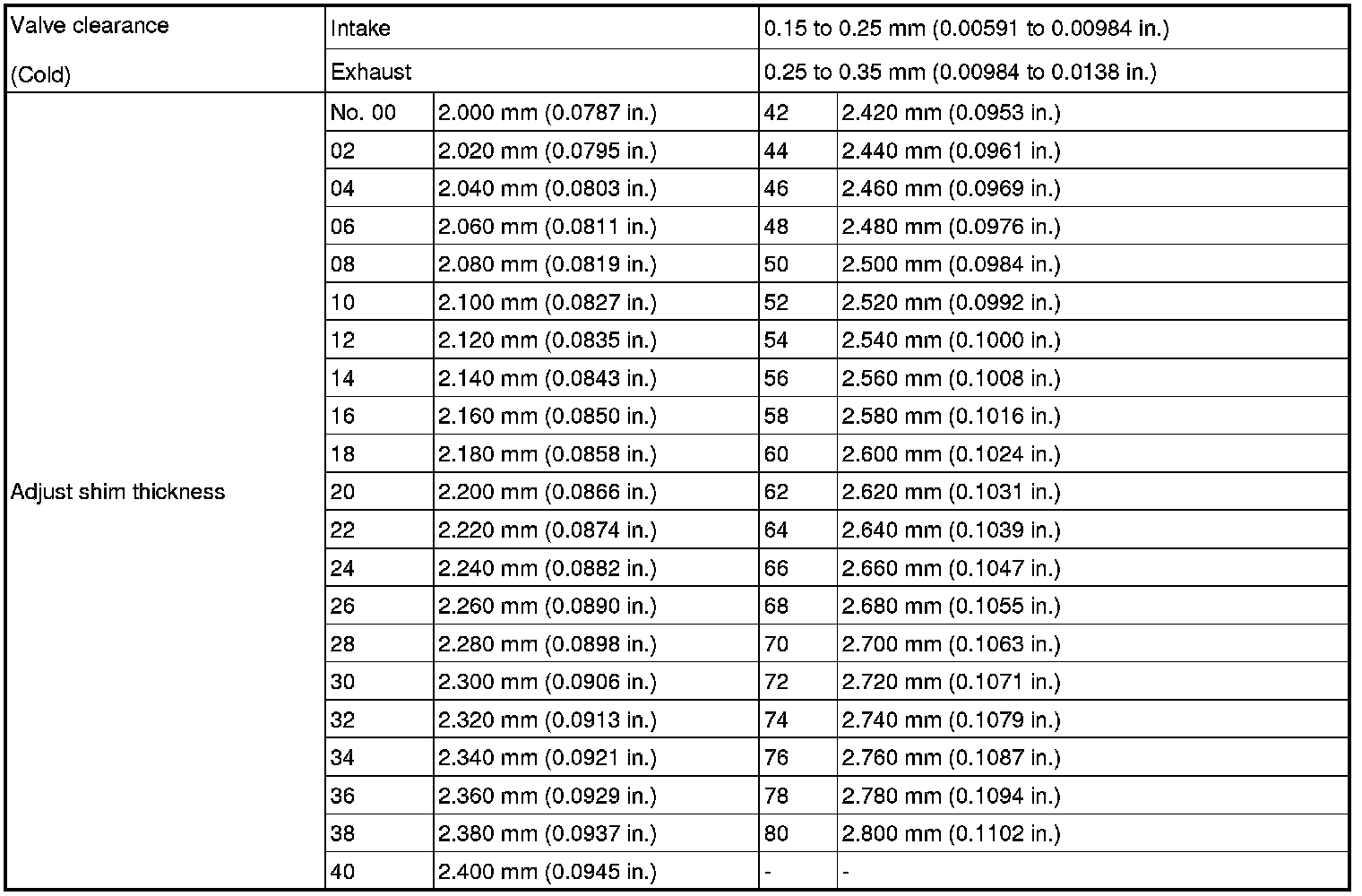

Valve clearance





Timing belt

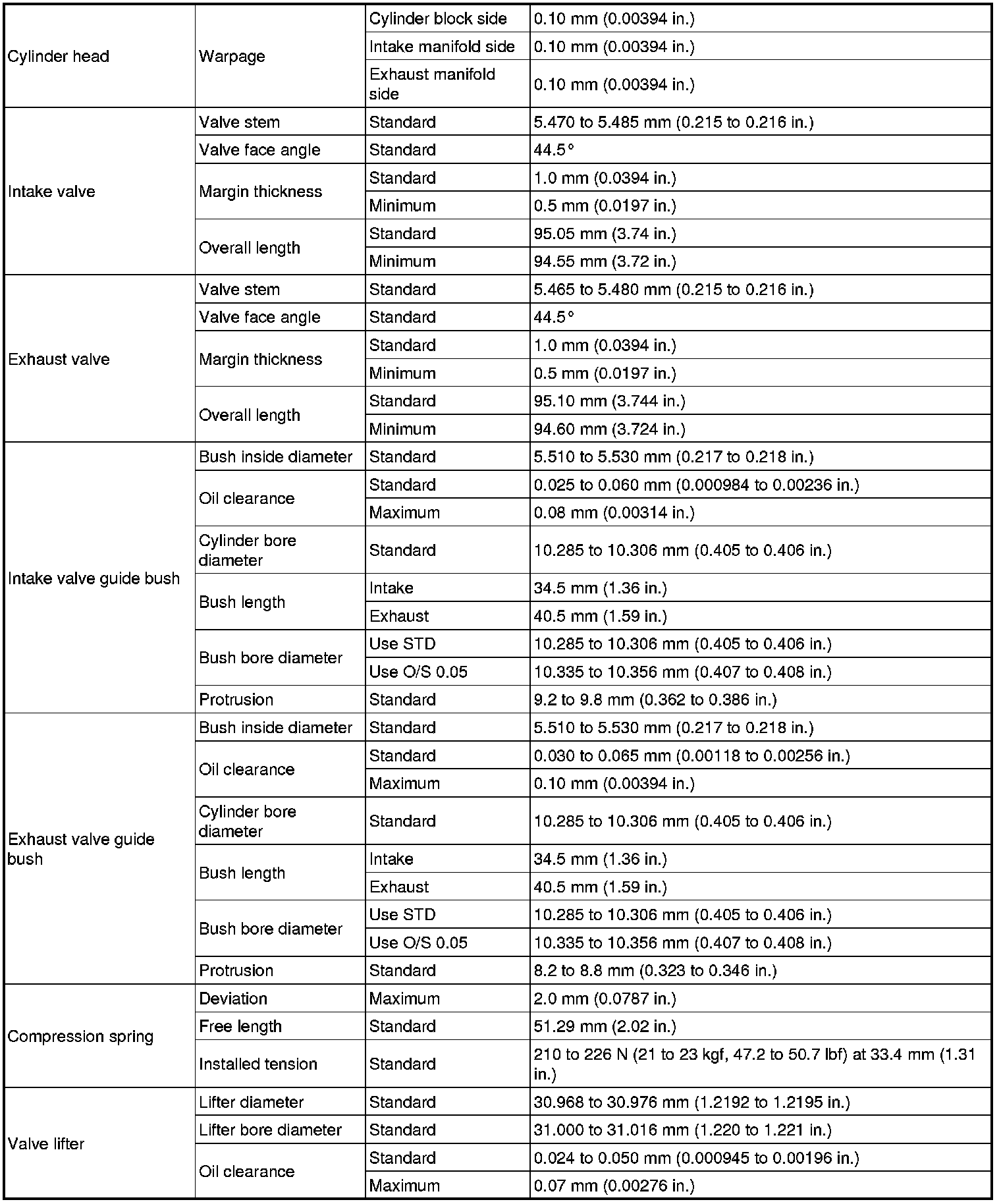

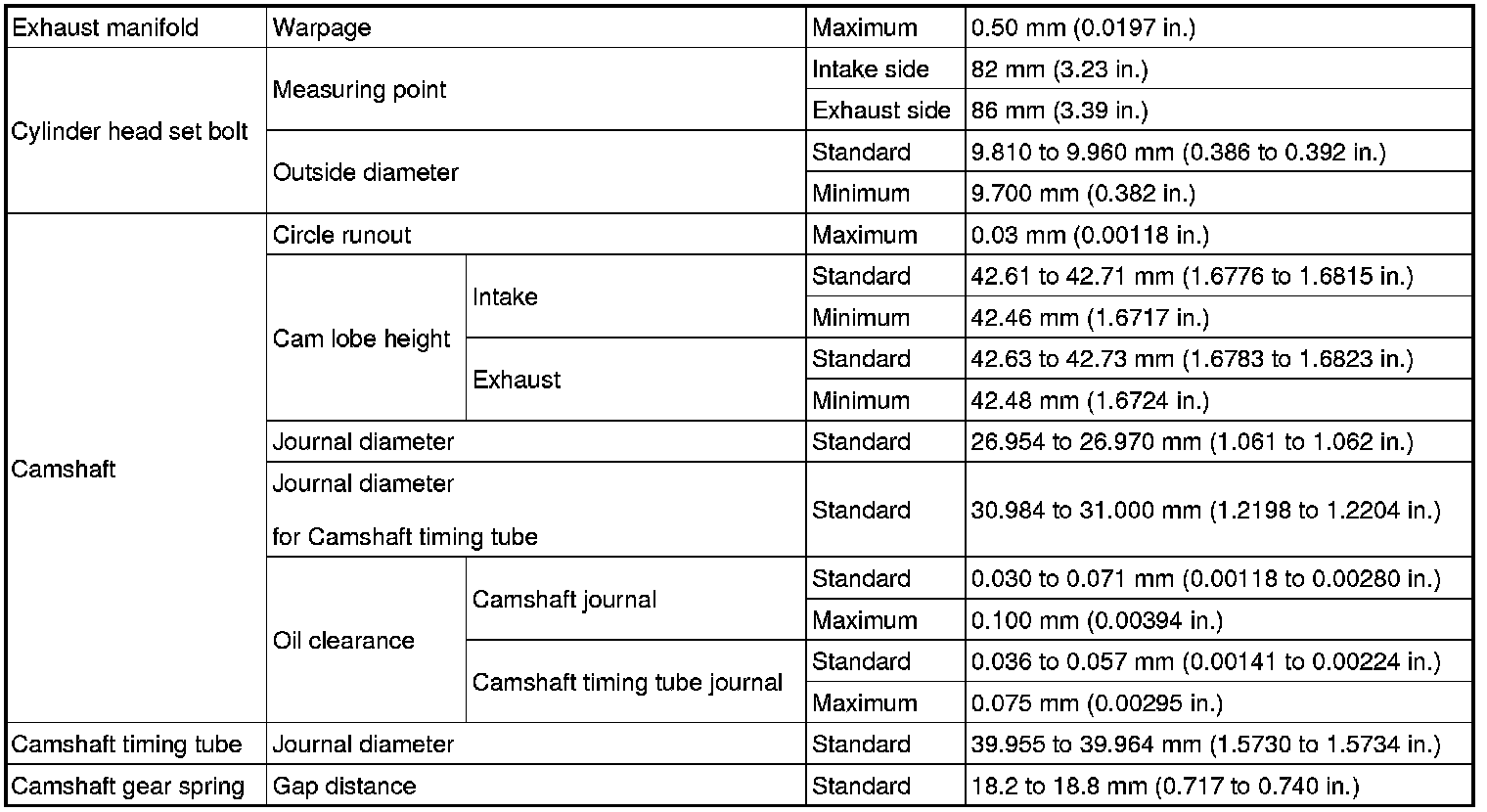

Cylinder head

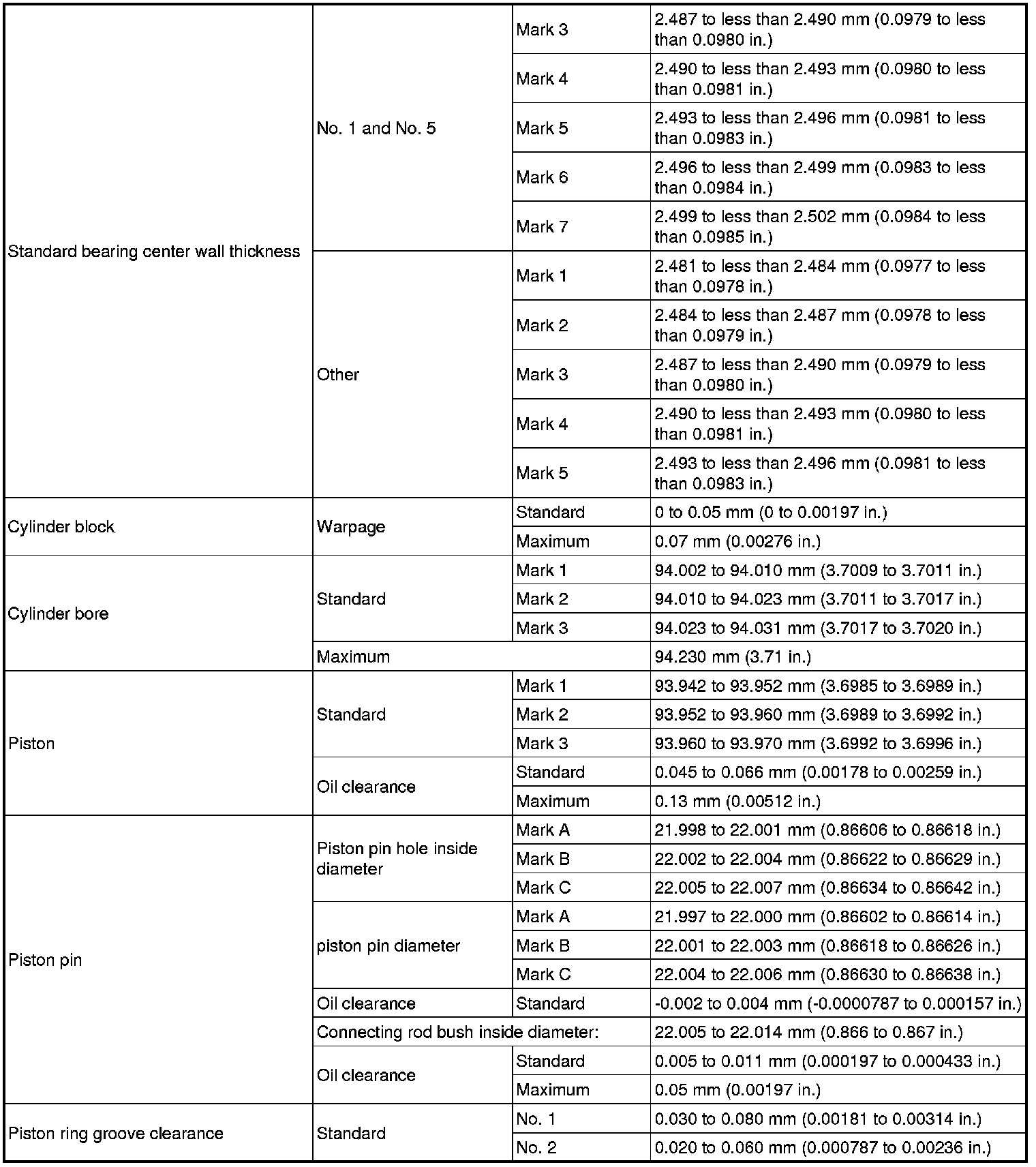

Cylinder block

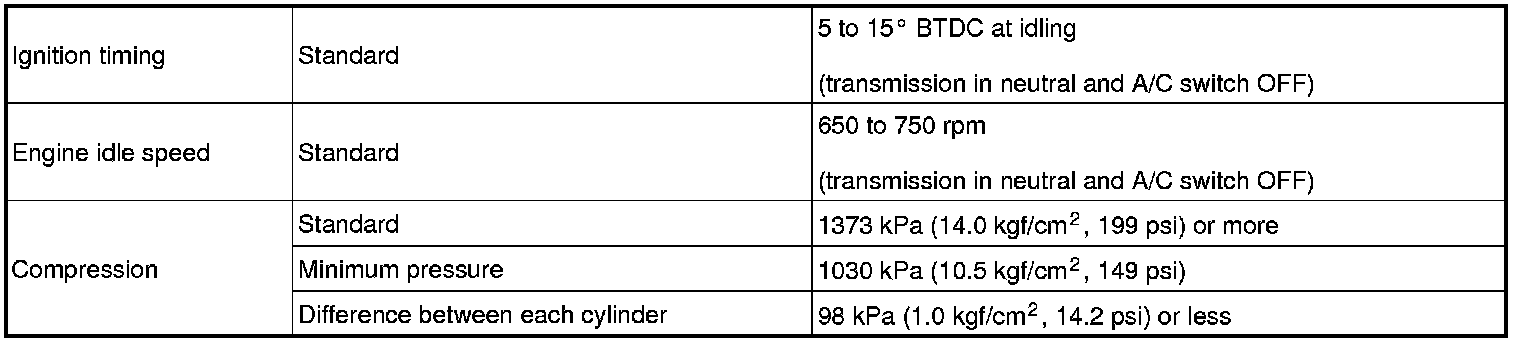

Engine unit
