Repair Instruction - Customize Parameters
INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS
CUSTOMIZE PARAMETERS
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.
1. CUSTOMIZING FUNCTION WITH TECHSTREAM
(a) POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Tilt & Telescopic

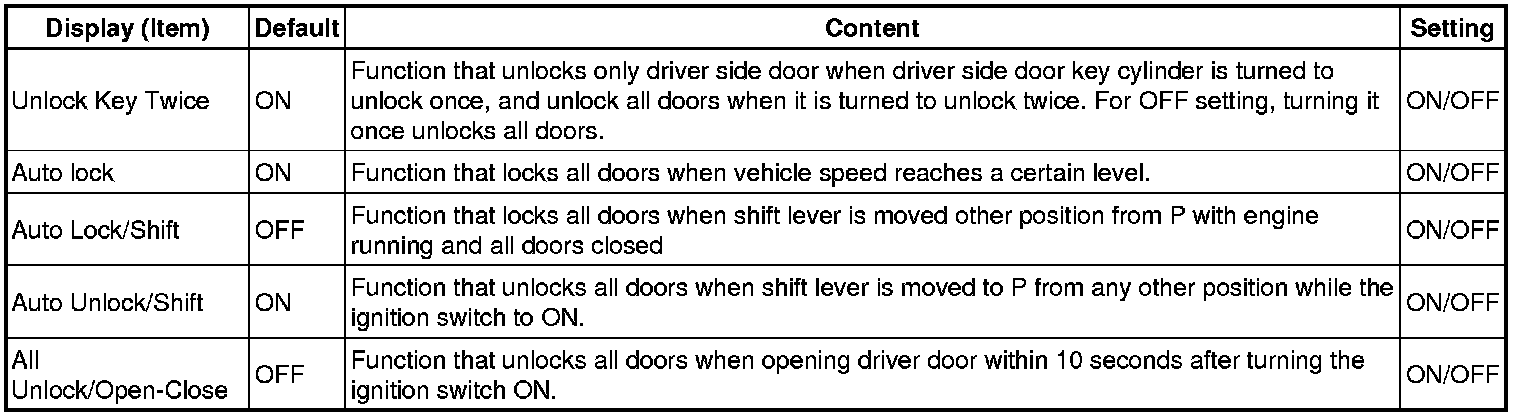

(b) POWER DOOR LOCK CONTROL SYSTEM
Main Body

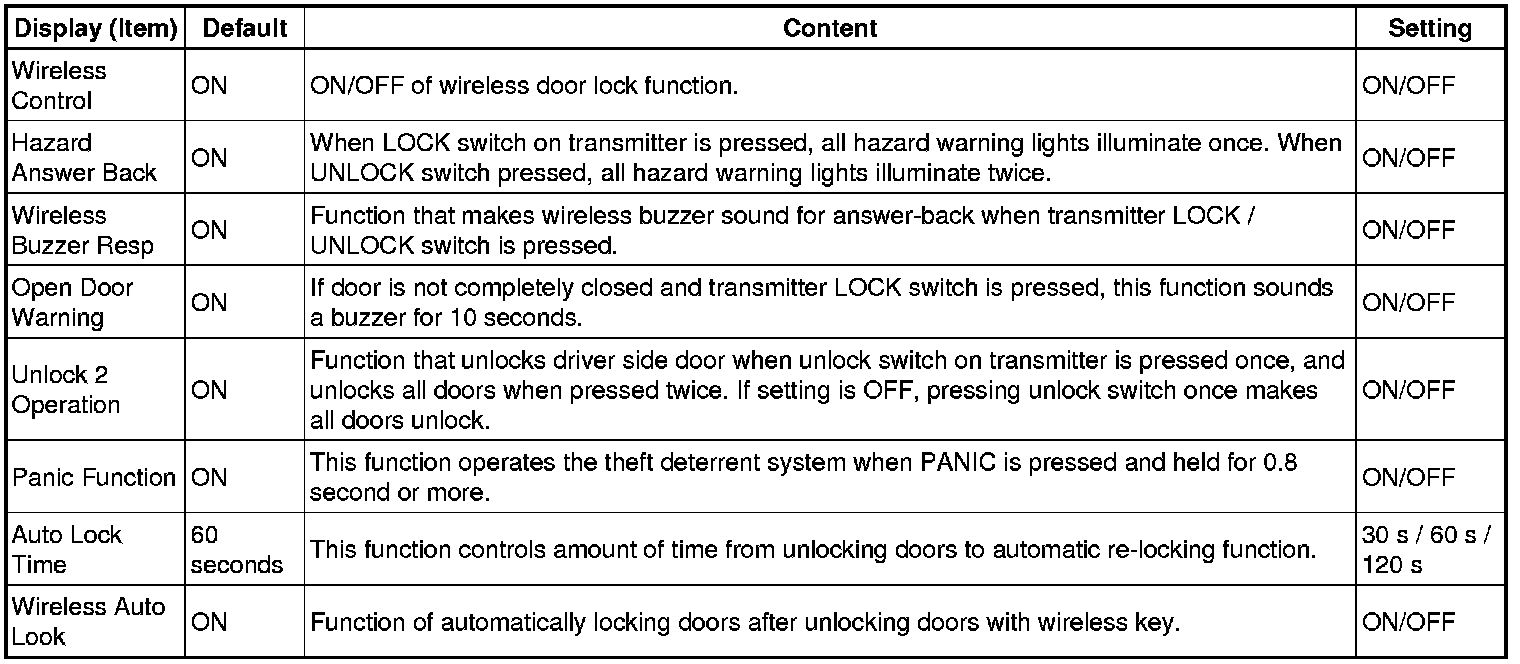

(c) WIRELESS DOOR LOCK CONTROL SYSTEM
Main Body
(d) THEFT DETERRENT SYSTEM
Main Body
HINT: *: w/ Glass Breakage Sensor

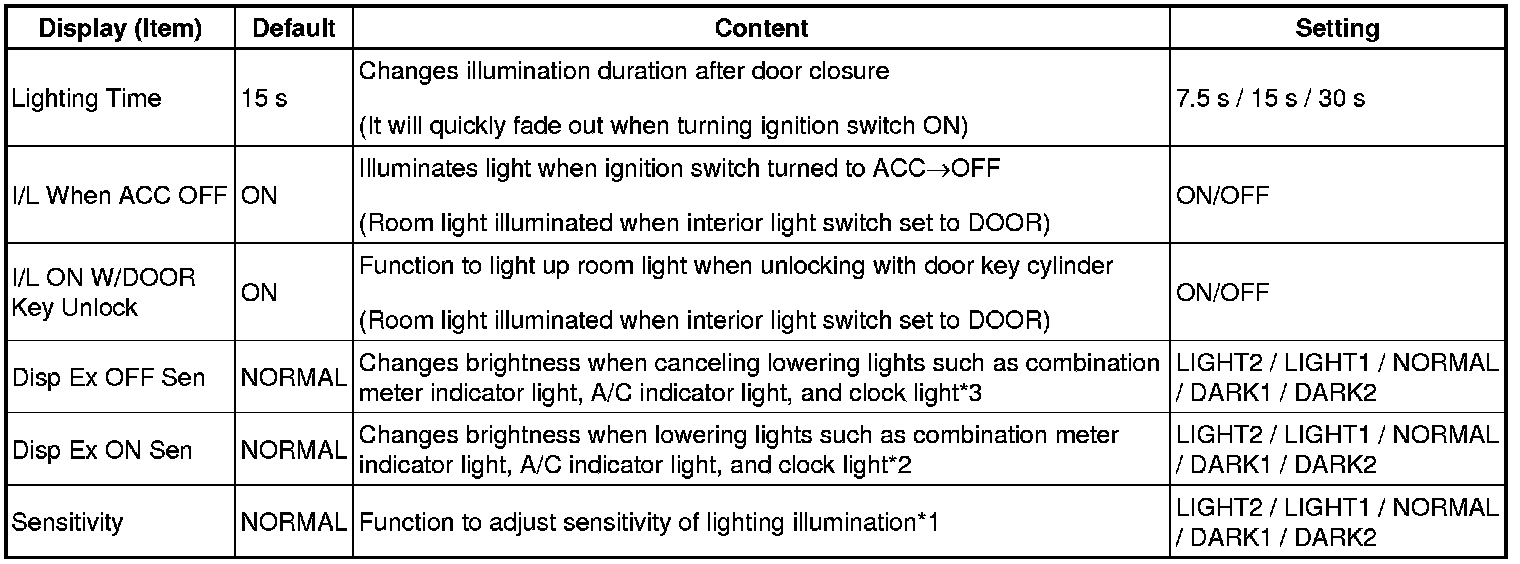

(e) LIGHTING SYSTEM (INTERIOR)
Main Body
HINT: *1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

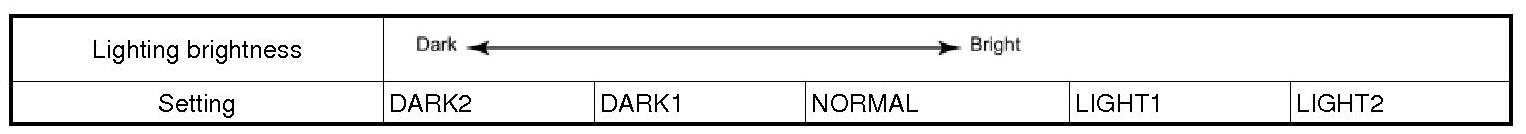

*1

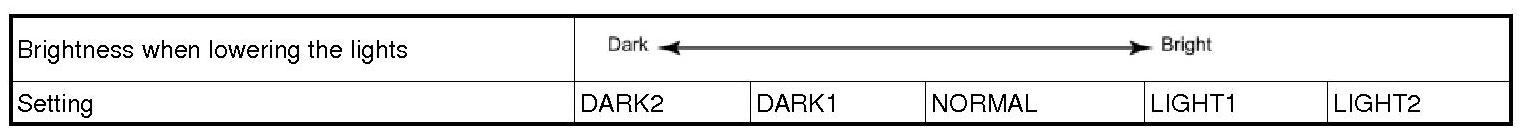

*2
*3
(f) METER / GAUGE SYSTEM
Warning

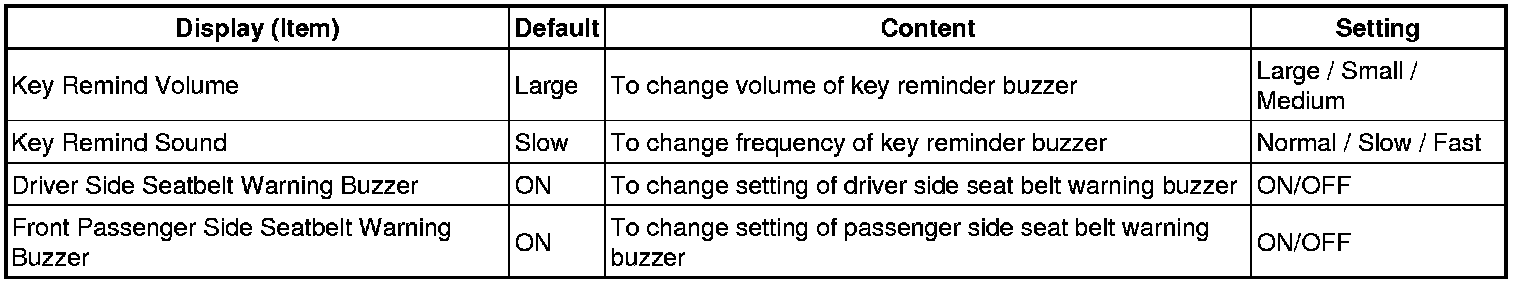

(g) SEAT BELT WARNING SYSTEM
Warning
(h) AIR CONDITIONING SYSTEM
Air Conditioner

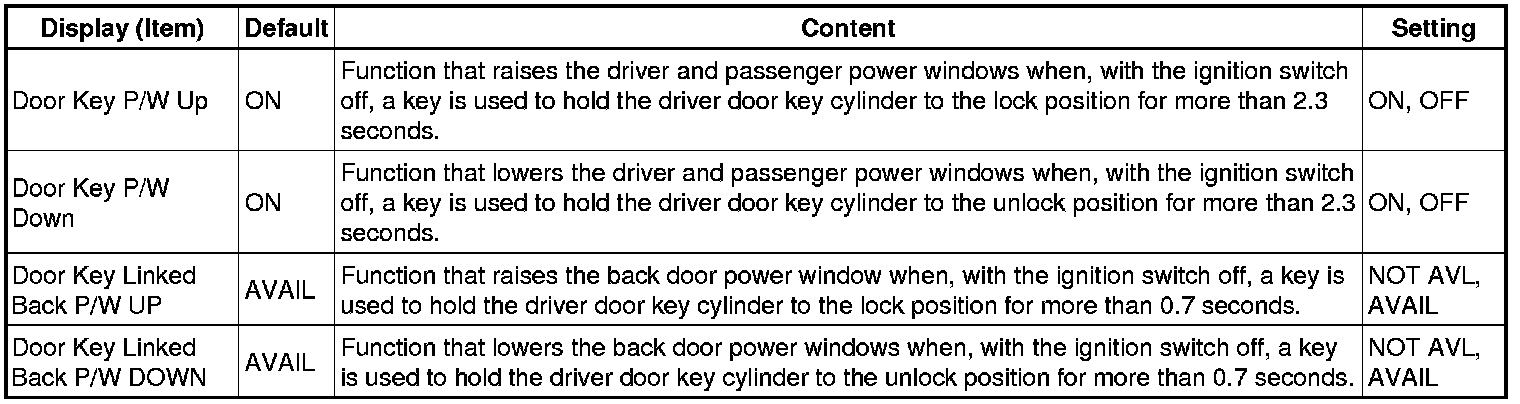

(i) POWER WINDOW CONTROL SYSTEM
Power Window

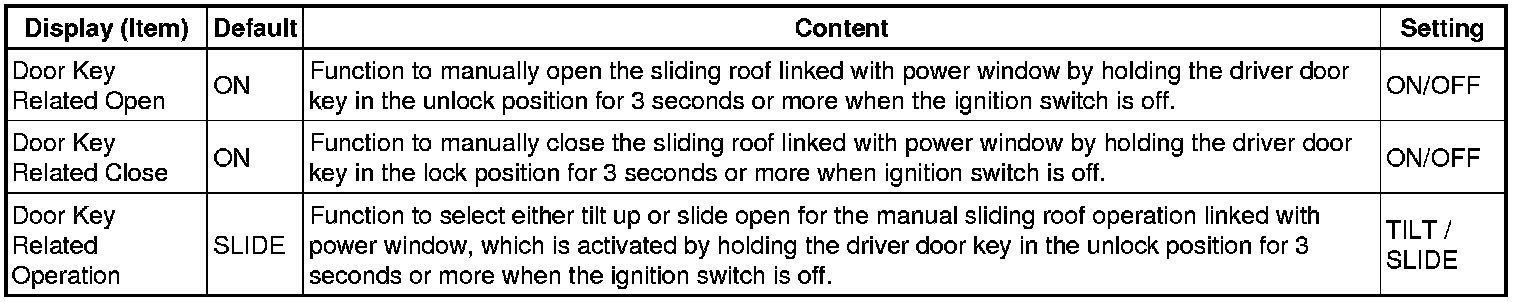

(j) SLIDING ROOF SYSTEM
Sliding Roof

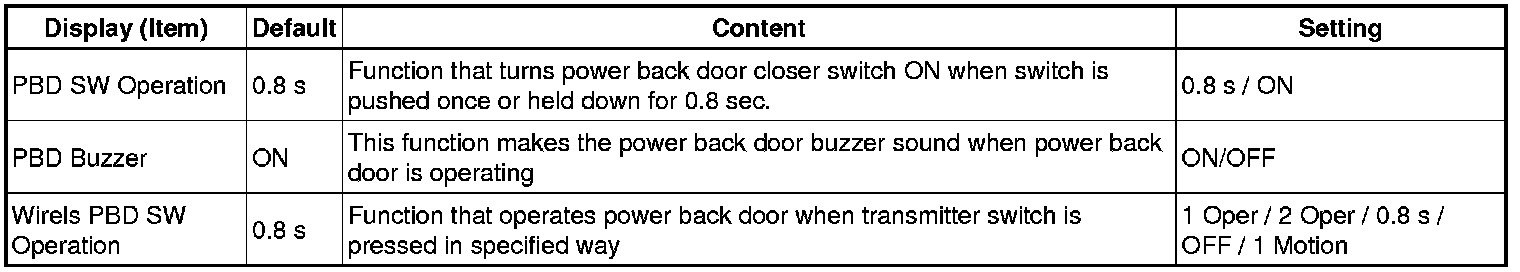

(k) POWER BACK DOOR SYSTEM
Power Back Door System

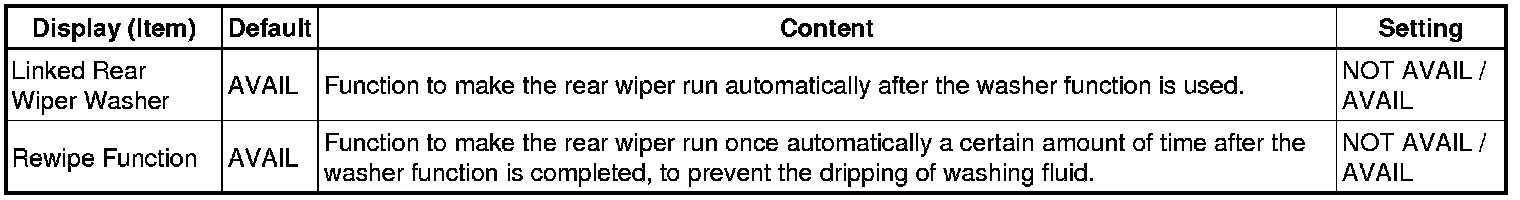

(l) WIPER AND WASHER SYSTEM
Wiper

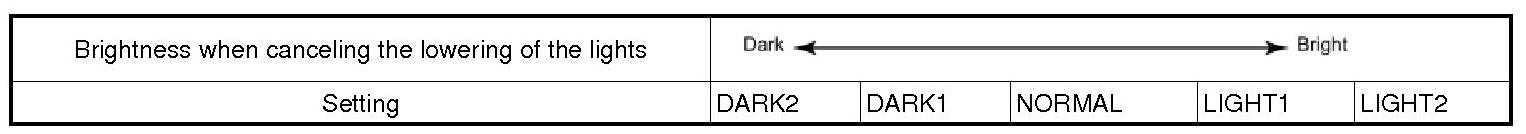

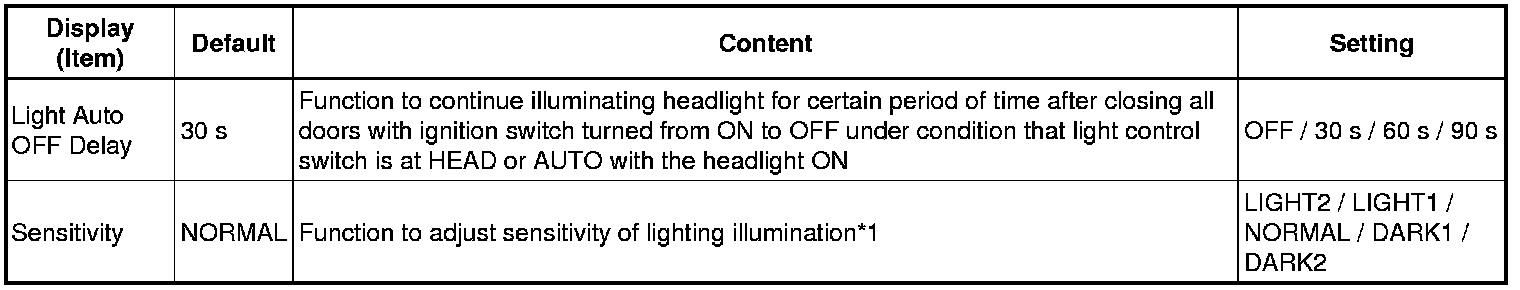

(m) LIGHTING SYSTEM (EXTERIOR)
Light Control
HINT: *1: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.
*1
Mirror ECU

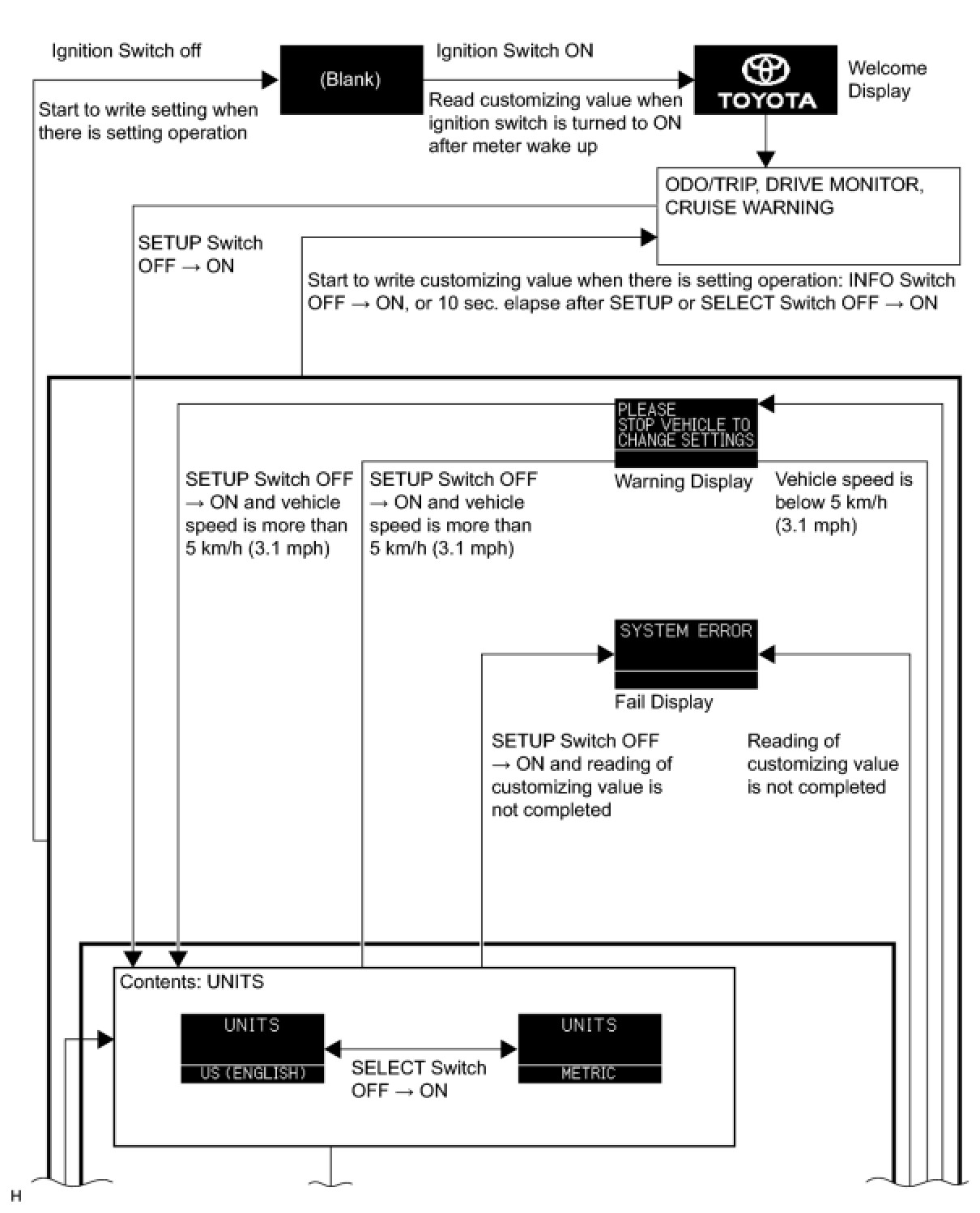

2. CUSTOMIZING FUNCTION WITH MULTI-INFORMATION DISPLAY (w/ Multi-information Display)
(a) Using the SETUP switch and SELECT switch, the following functions can be customized through the multi-information display. Refer to the illustration below.
- Unit setting
- Wireless door lock control system (answer-back function, automatic lock function, 2-step unlock function)
- Power door lock control system (automatic door lock function, automatic door unlock function)
- Lighting system (auto light turn off function)
- Default setting (customize setting cancel function)
HINT: *: When setting change operation is performed by SELECT switch, writing of customized value must be performed.
