INTERIOR PANELS / TRIM: REAR SUNSHADE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL REAR WINDOW CURTAIN RH

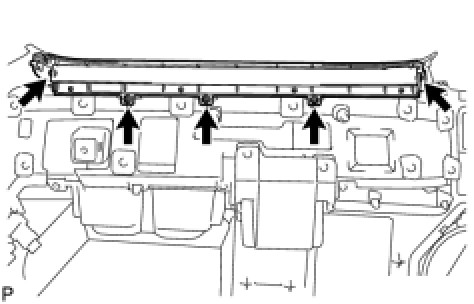

(a) Install the 5 screws and the rear window curtain.
2. INSTALL REAR WINDOW CURTAIN LH

HINT: Use the same procedure for both sides.

3. INSTALL QUARTER TRIM PANEL ASSEMBLY RH Installation
4. INSTALL QUARTER TRIM PANEL ASSEMBLY LH Installation
5. INSTALL REAR FLOOR MAT SUPPORT PLATE Installation
6. INSTALL ROPE HOOK ASSEMBLY Installation
7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
8. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
9. INSTALL REAR DOOR SCUFF PLATE RH Installation
10. INSTALL REAR DOOR SCUFF PLATE LH Installation
11. INSTALL REAR FLOOR STEP NO. 1 COVER Installation
12. INSTALL REAR FLOOR STEP NO. 2 COVER Installation
13. INSTALL REAR SEAT CUSHION HINGE LOWER COVER RH Installation
14. INSTALL REAR SEAT CUSHION HINGE LOWER COVER LH Installation
15. INSTALL REAR NO. 2 SEAT ASSEMBLY RH
(a) for Manual seat:
Install the rear No. 2 seat assembly RH Installation.
(b) for Power seat:
Install the rear No. 2 seat assembly RH Installation.
16. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) for Manual seat:
Install the rear No. 2 seat assembly LH Installation.
(b) for Power seat:
Install the rear No. 2 seat assembly LH Installation.
17. INSTALL DECK BOARD BRACKET Installation
18. INSTALL DECK BOARD REINFORCEMENT SUB-ASSEMBLY Installation
19. INSTALL NO. 1 DECK BOARD SUB-ASSEMBLY Installation
20. INSTALL ROPE HOOK ASSEMBLY Installation
21. INSTALL LUGGAGE COMPARTMENT TRIM BOX Installation
22. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY Installation
