Fail-Safe Chart

A750F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

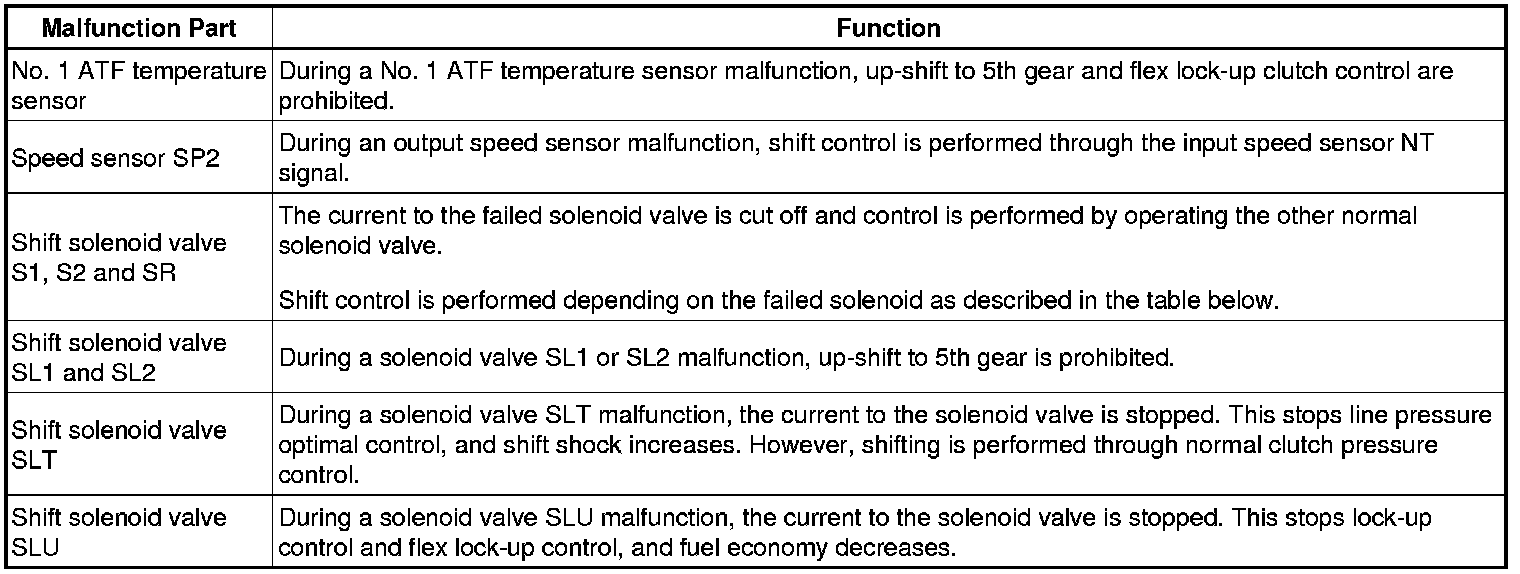

1. FAIL-SAFE
This function minimizes the loss of the ECT functions when a malfunction occurs in each sensor or solenoid.

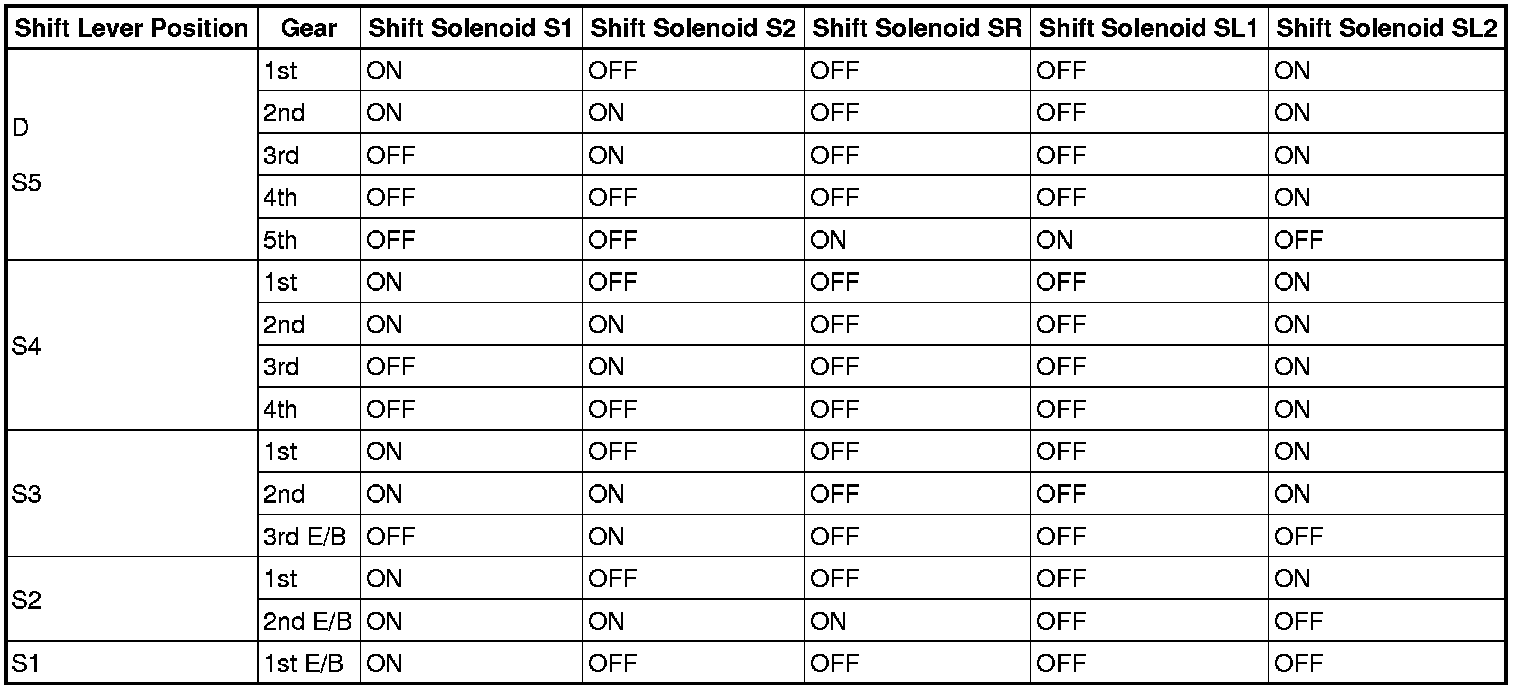

Shift Solenoid Valve Normal Operation Chart





2. FAIL-SAFE FUNCTION
If either of the shift solenoid valve circuits has an open or short failure, the ECM turns the other shift solenoid ON and OFF in order to shift into the gear positions shown in the table below.
In case of a short circuit, the ECM stops sending current to the short circuit solenoid.
Even if starting the engine again in the fail-safe mode, the gear position remains in the same position.

HINT:
- Electrical malfunction: Condition is shown above the "[down]".
- Fail-safe mode: Condition is shown below the "[down]".
- E/B: Engine brake.

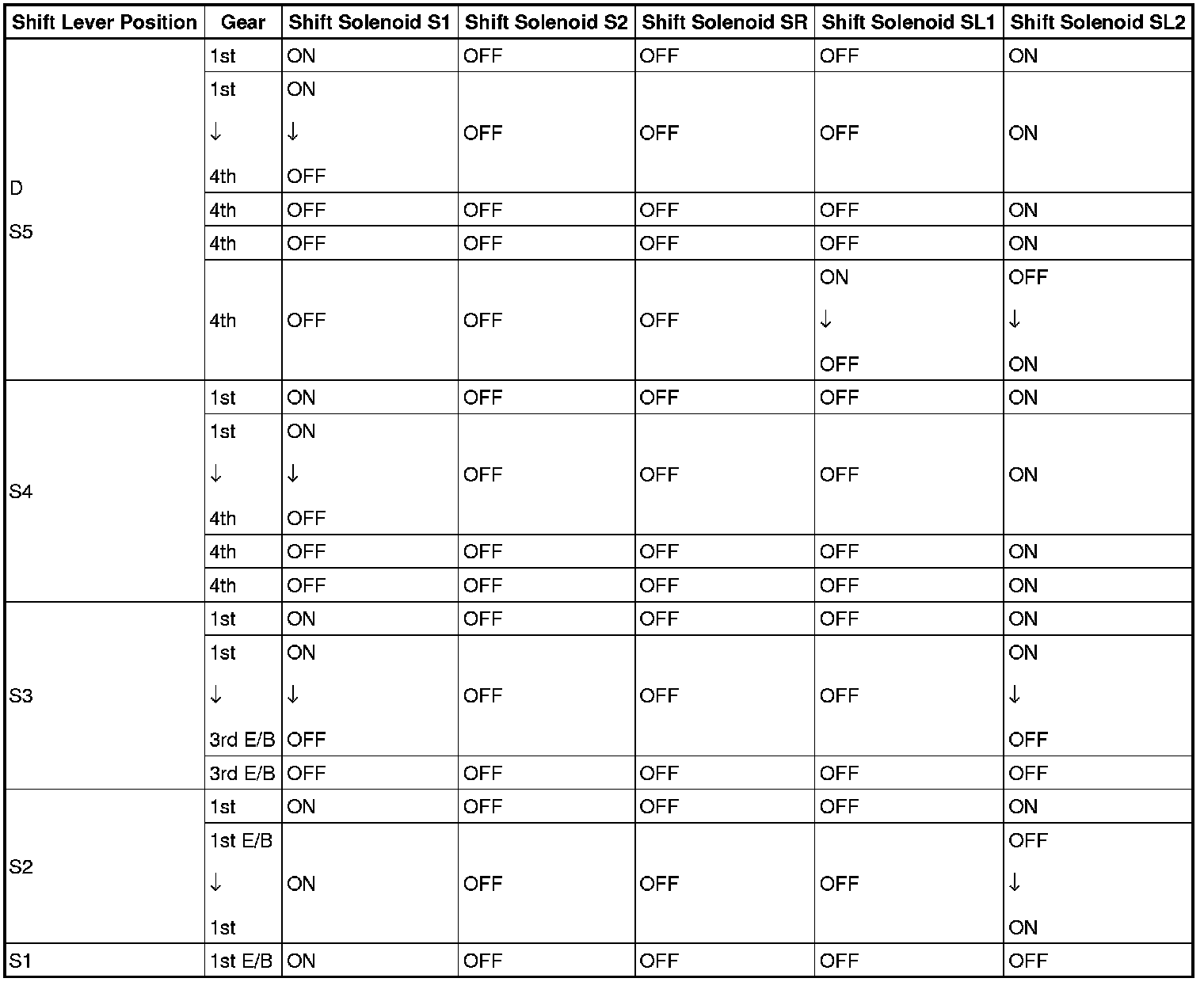

Fail-Safe Operation When Shift Solenoid Valve S1 is Malfunctioning

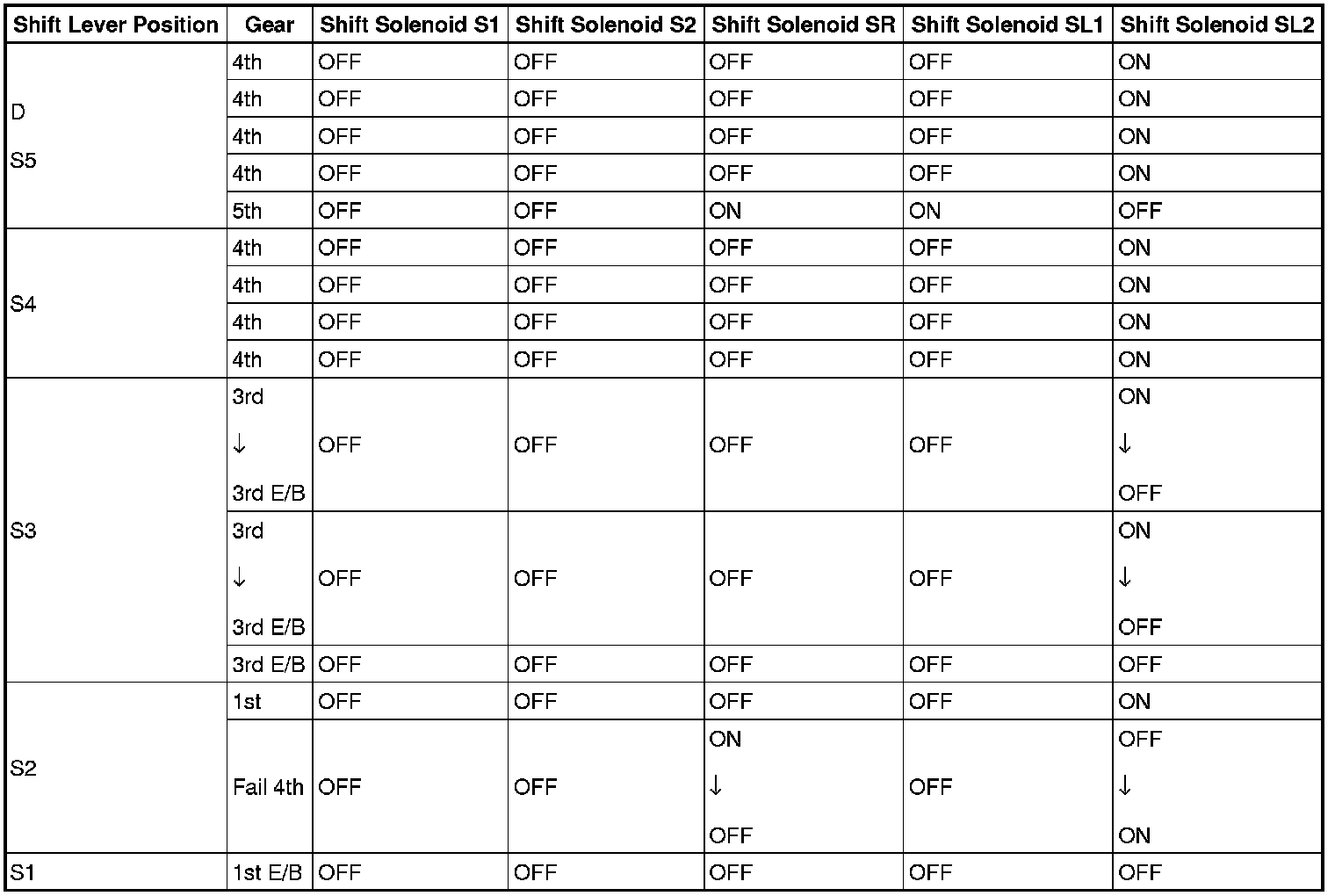

Fail-Safe Operation When Shift Solenoid Valve S2 is Malfunctioning

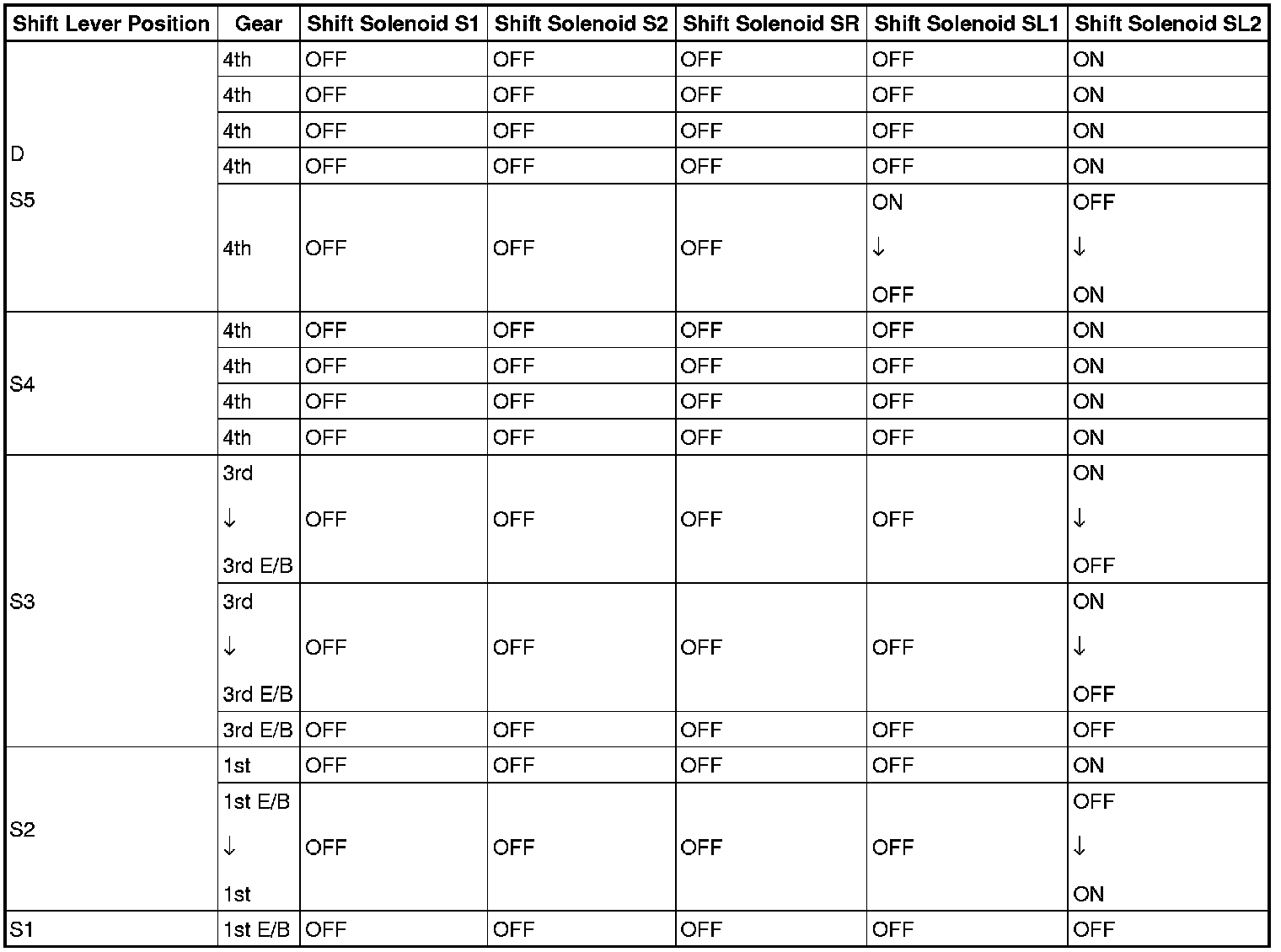

Fail-Safe Operation When Shift Solenoid Valve SR is Malfunctioning

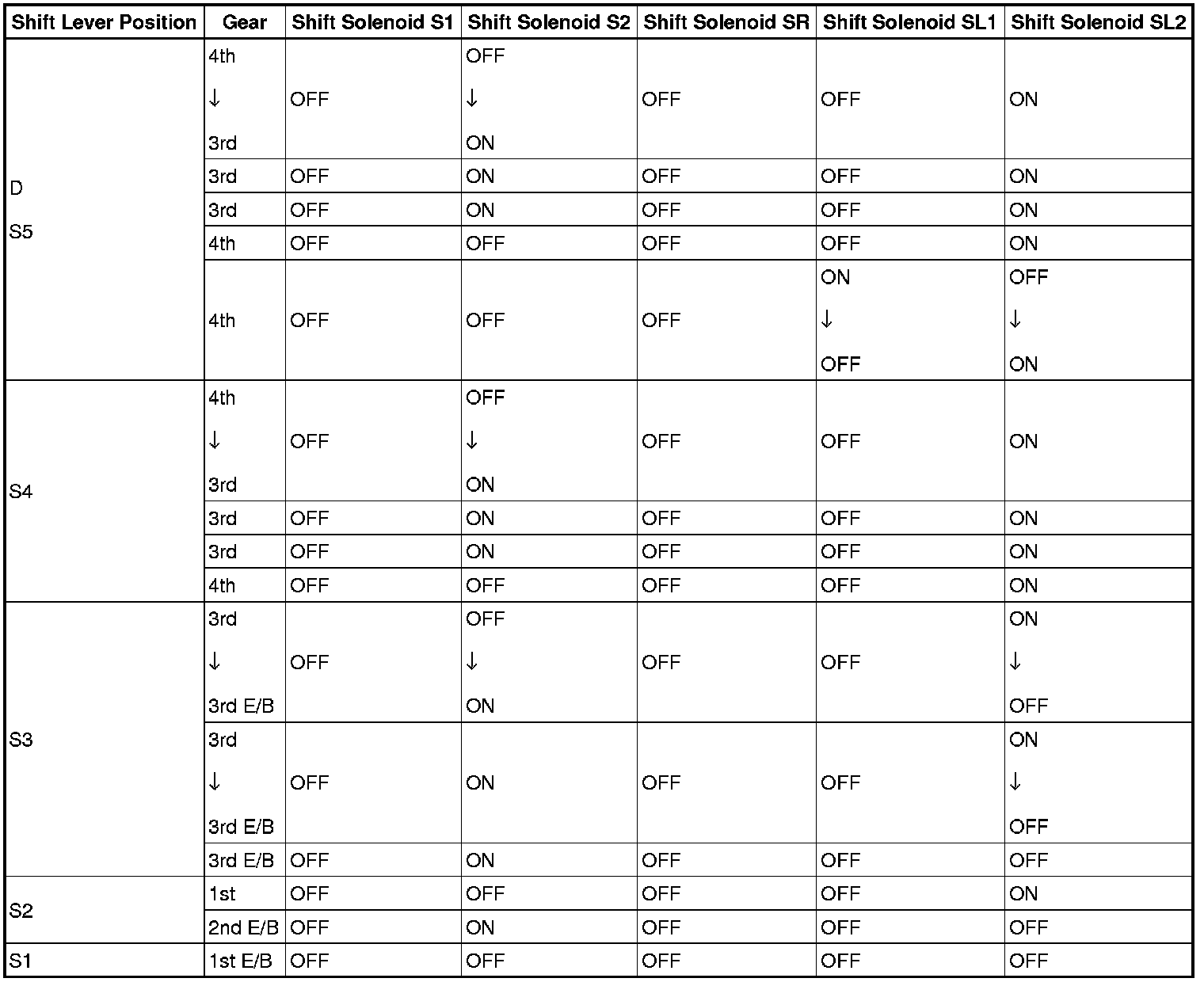

Fail-Safe Operation When Shift Solenoid Valve S1 and S2 are Malfunctioning

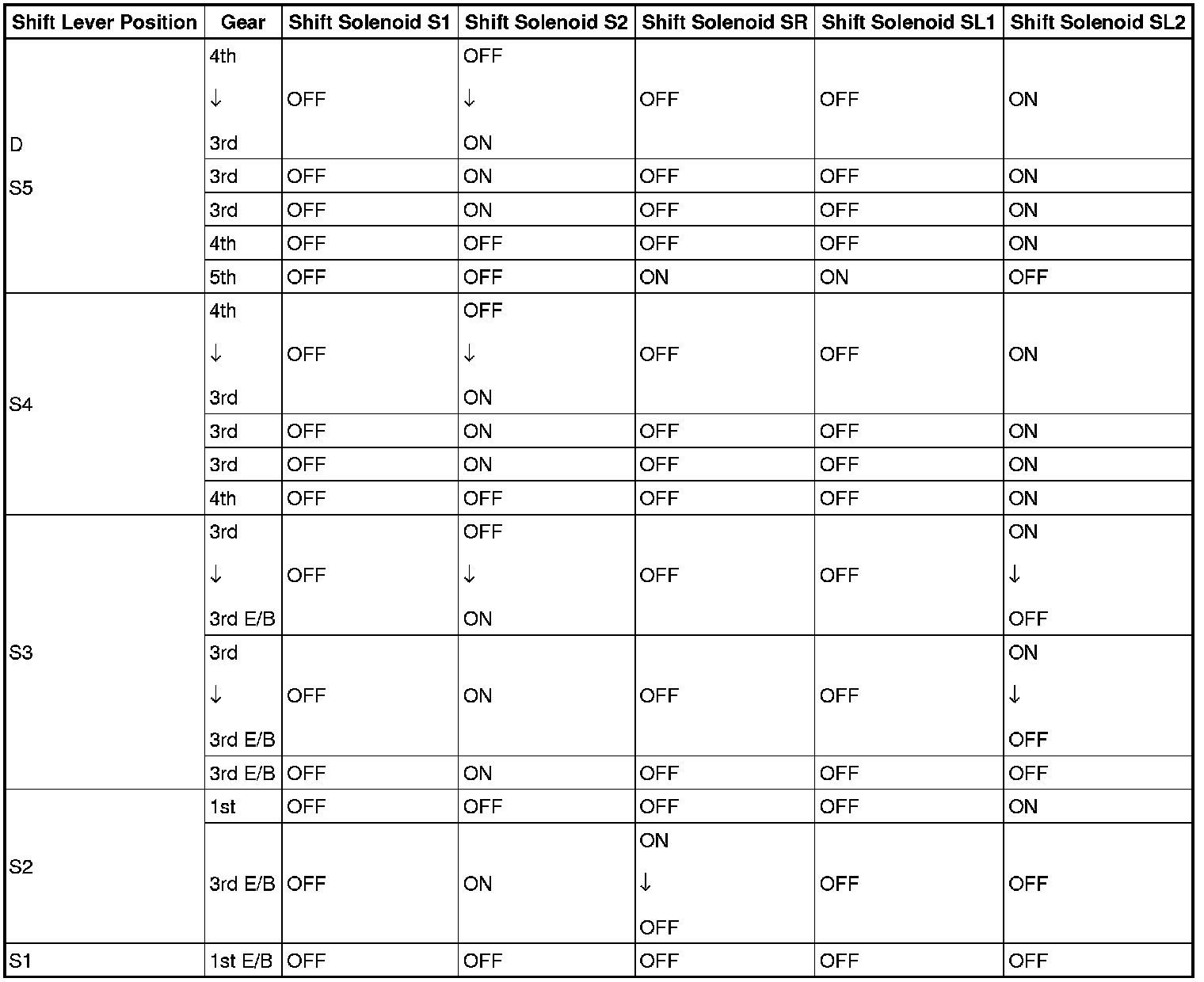

Fail-Safe Operation When Shift Solenoid Valve S2 and SR are Malfunctioning





Fail-Safe Operation When Shift Solenoid Valve S1 and SR are Malfunctioning





Fail-Safe Operation When Shift Solenoid Valve S1, S2 and SR are Malfunctioning
