System Specifications








SPECIFICATIONS: 3UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

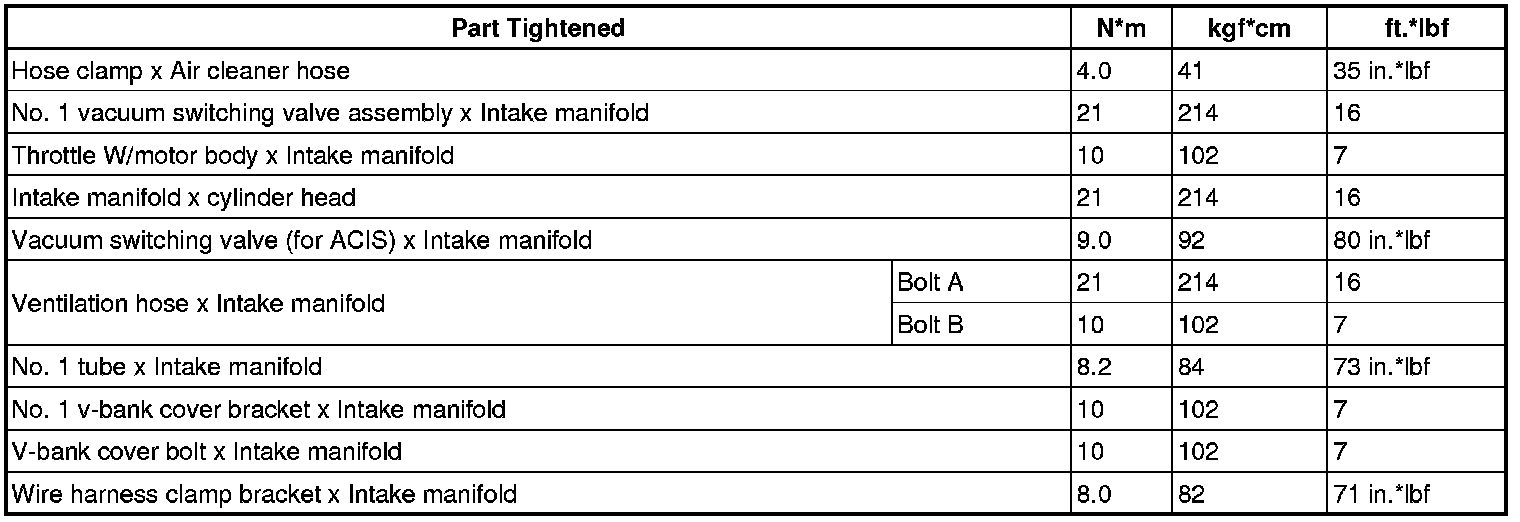

Intake manifold:





Exhaust manifold:

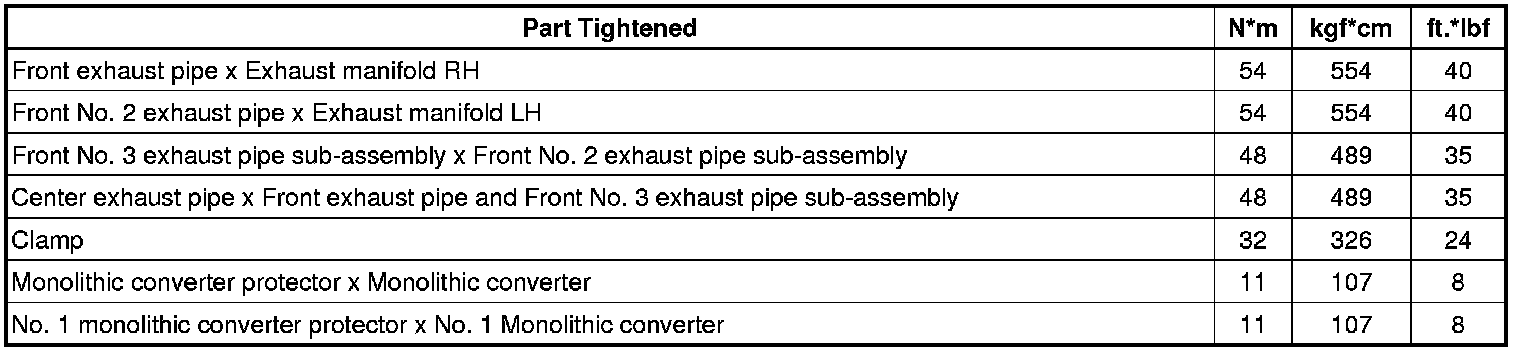

Exhaust pipe:
