Service Data








SPECIFICATIONS: JF3A TRANSFER / 4WD / AWD: SERVICE DATA

SERVICE DATA

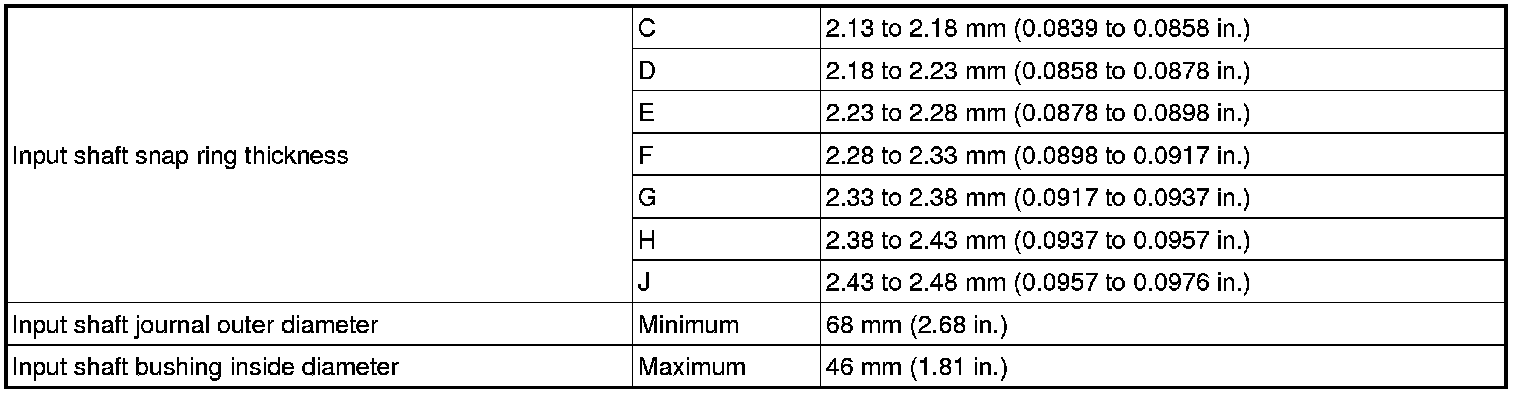

Input Shaft

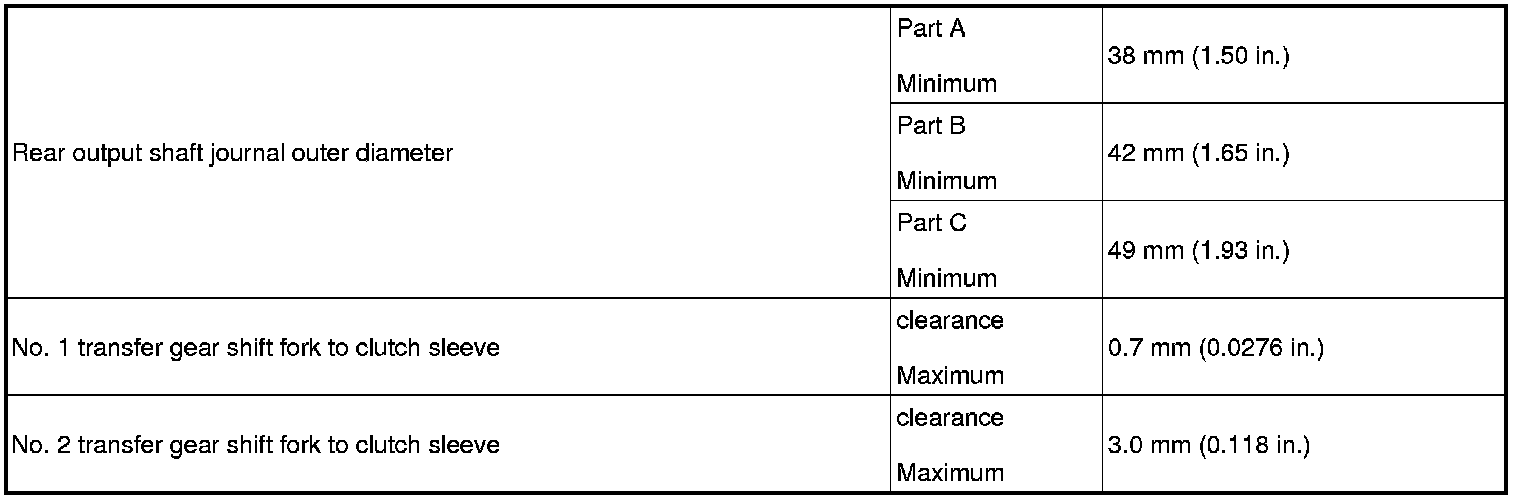

Rear Output Shaft





Planetary Gear





Synchronizer Ring
