Power Seat Control Module: Locations

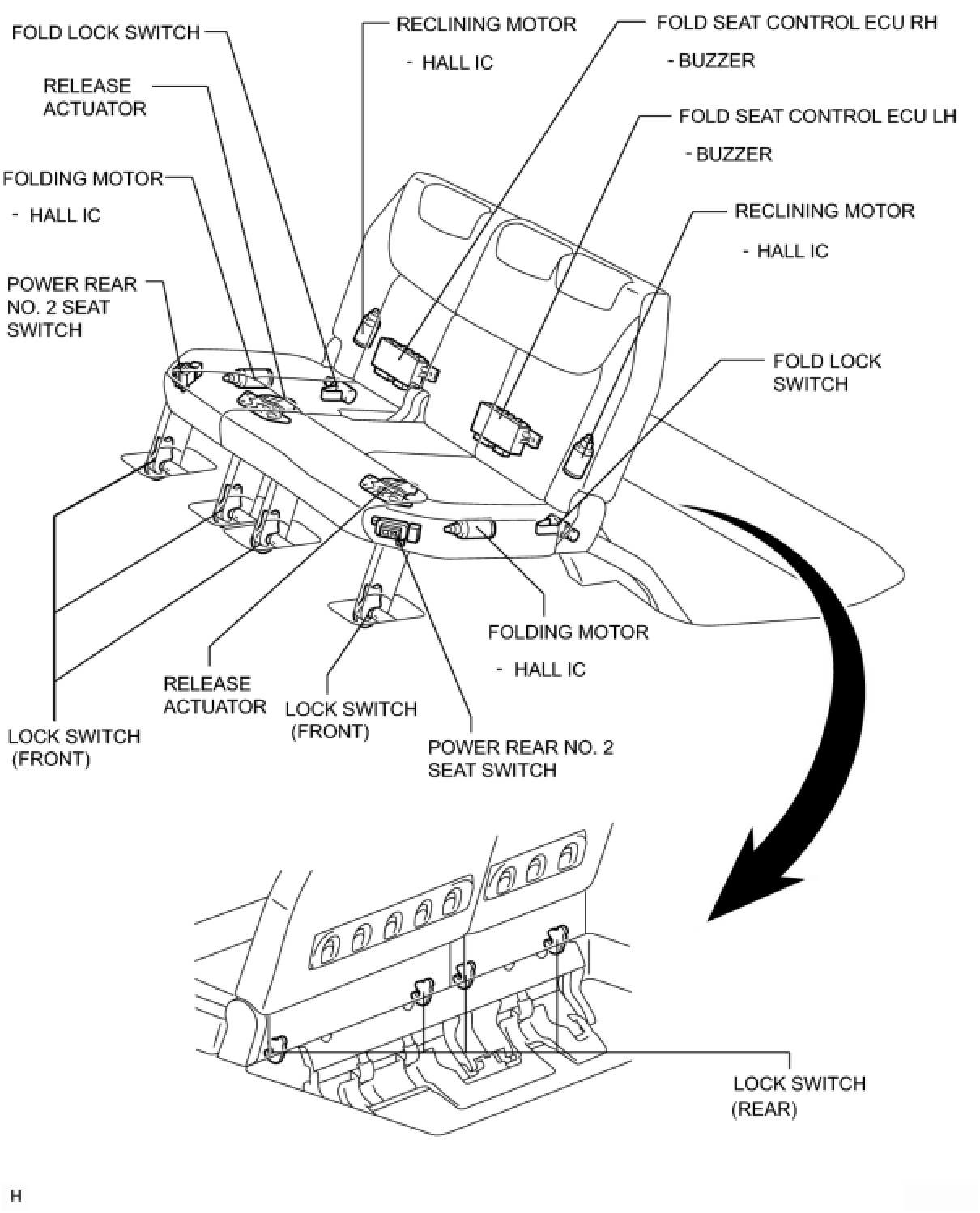

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Power Stowing Function): PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
