Relay Box
Relay Box

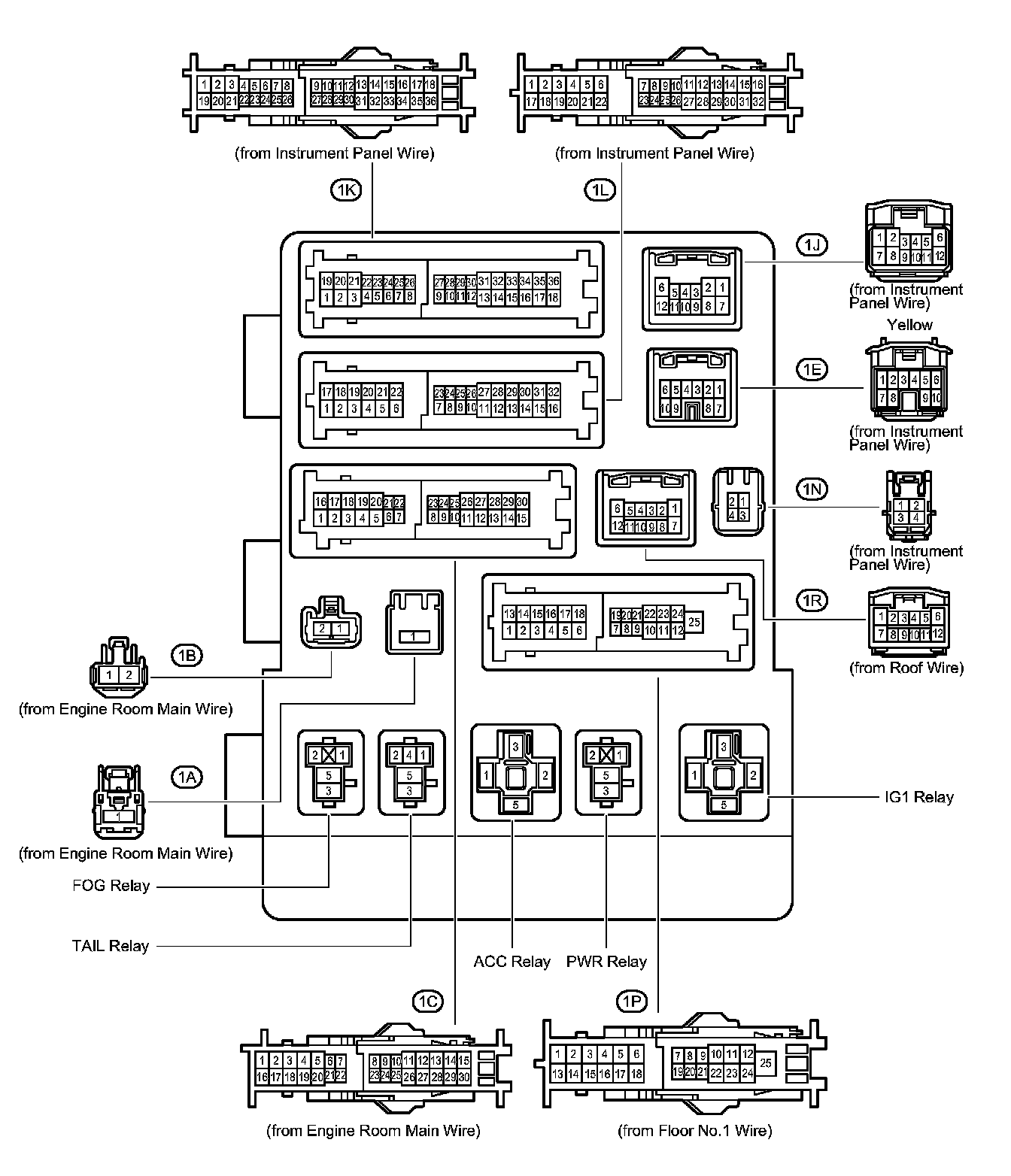

Driver Side J/B - Lower Finish Panel:

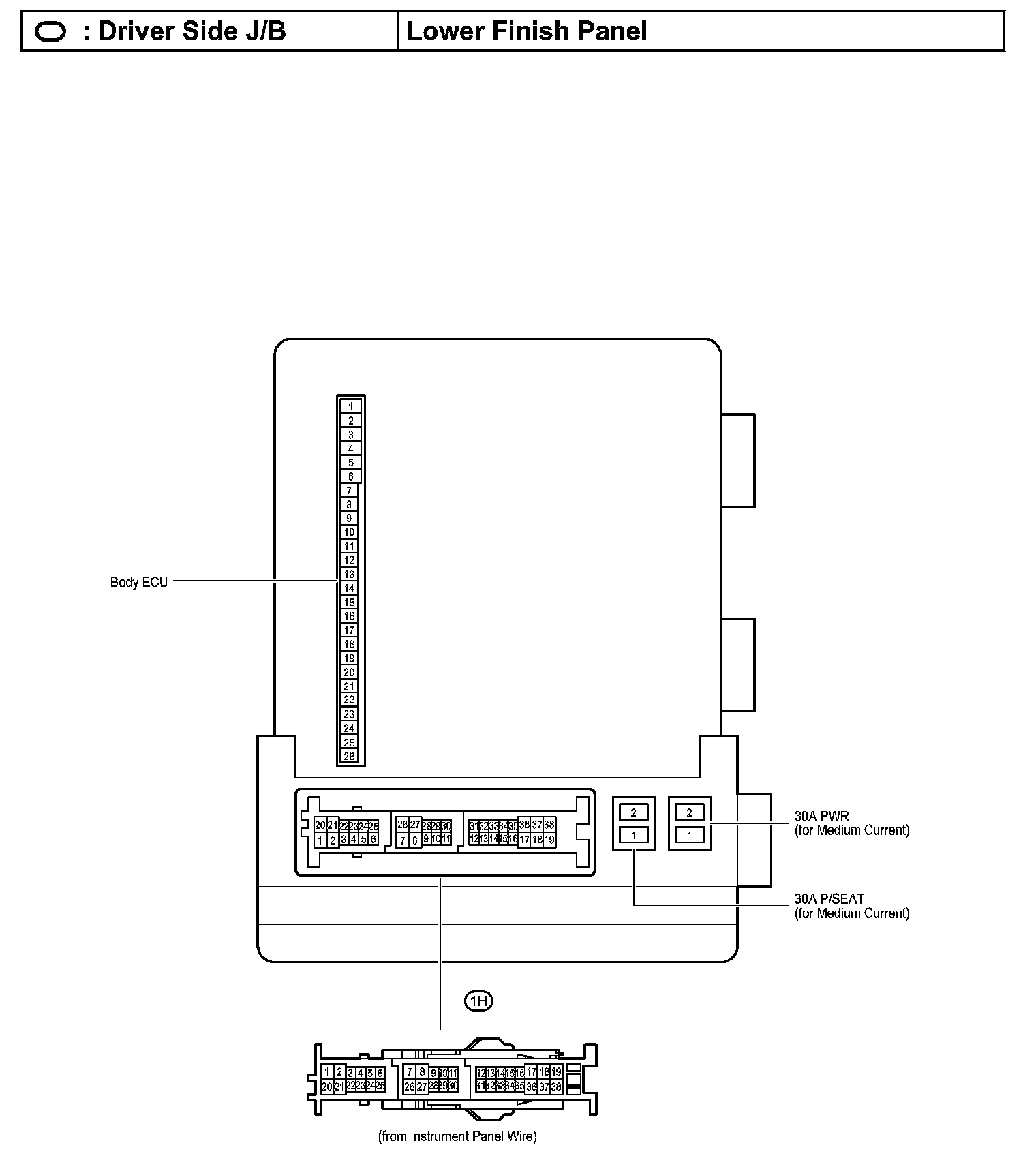

Driver Side J/B - Lower Finish Panel:

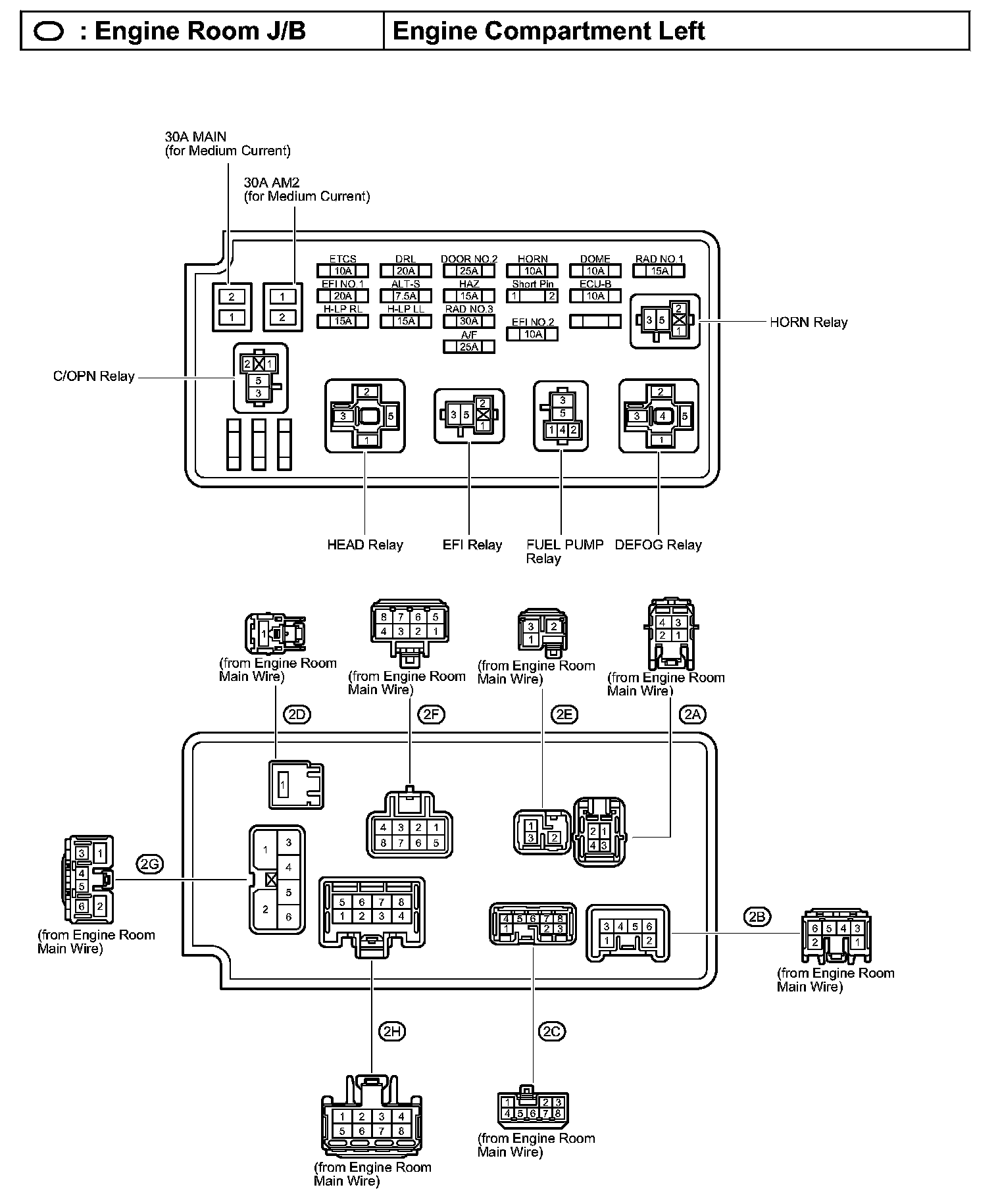

Engine Room J/B - Engine Compartment Left:

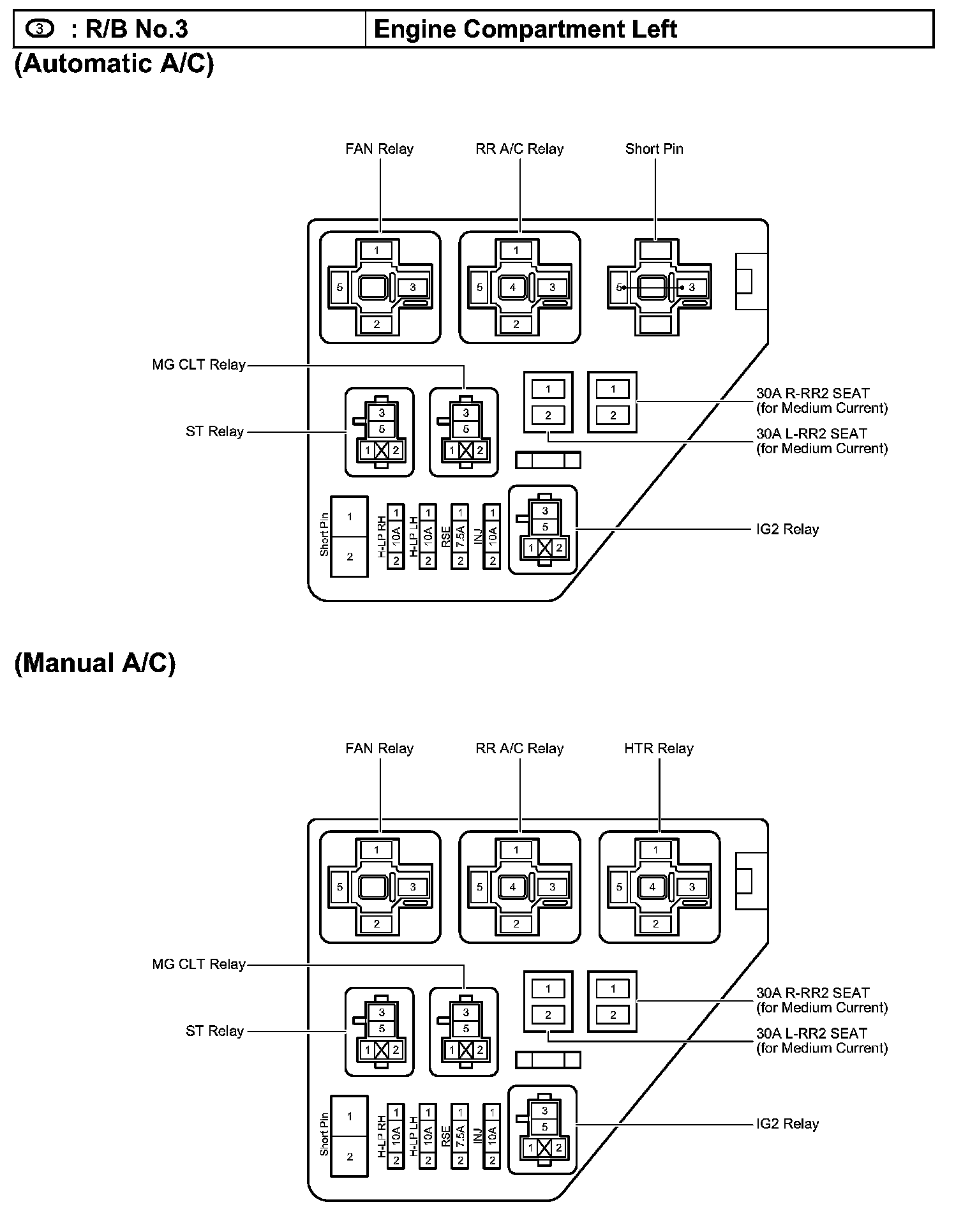

R/B No.3 - Engine Compartment Left:
