Disassembly

AIR CONDITIONING: REAR AIR CONDITIONING PANEL: DISASSEMBLY

DISASSEMBLY

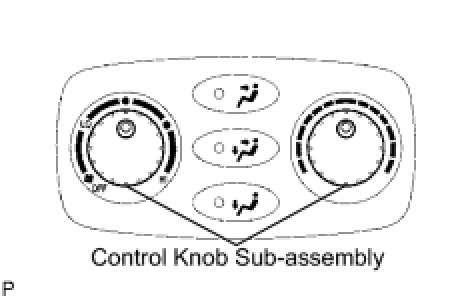

1. REMOVE CONTROL KNOB SUB-ASSEMBLY (for Manual Air Conditioning System)





(a) Remove the control knob sub-assembly.
2. REMOVE AIR CONDITIONING CONTROL BULB





(a) Remove the air conditioning control bulb.
