Exhaust Manifold

EXHAUST MANIFOLD SUB-ASSEMBLY LH

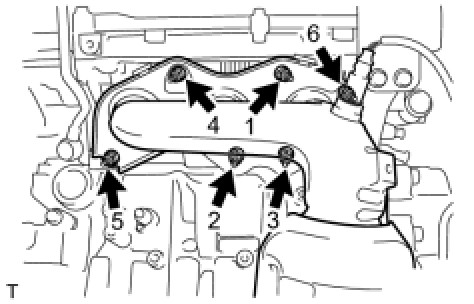

Install the exhaust manifold sub-assembly LH with the 6 nuts in the order shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

EXHAUST MANIFOLD SUB-ASSEMBLY RH

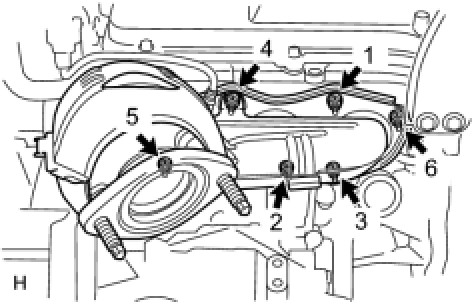

Install the exhaust manifold sub-assembly RH with the 6 nuts in the order shown in the illustration.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
