Body - Driver's Power Window Initialization Procedure

T-SB-0101-08

June 11, 2008

Initialization of Driver's Door Power Window During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

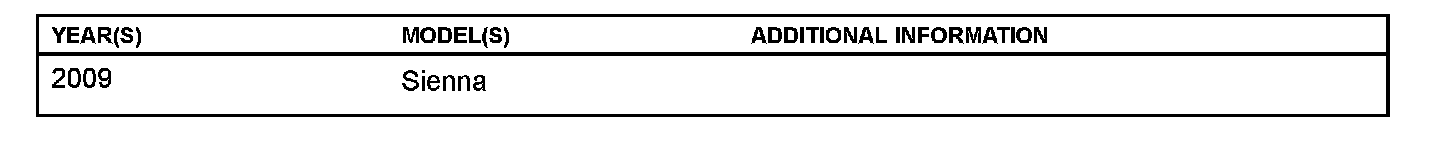

Applicability

Introduction

As a result of the removal of the Short Pin, the "one-touch open and close" and 'lam protection" functions of the driver's door power window will be inoperative due to loss of the driver's door window position memory stored in the microcomputer. Initialize the driver's door power window after installing the Short Pin in its original location during Pre-Delivery Service (PDS)

Any time the battery terminal has been disconnected, the driver's door power window MUST be re-initialized.

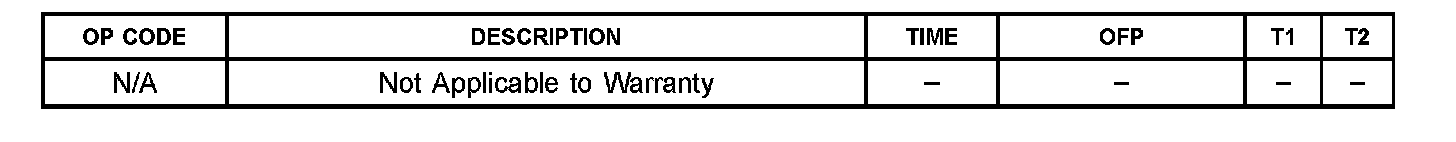

Warranty Information

Initialization Procedure





1. Turn the ignition switch to the "IG-ON" position.

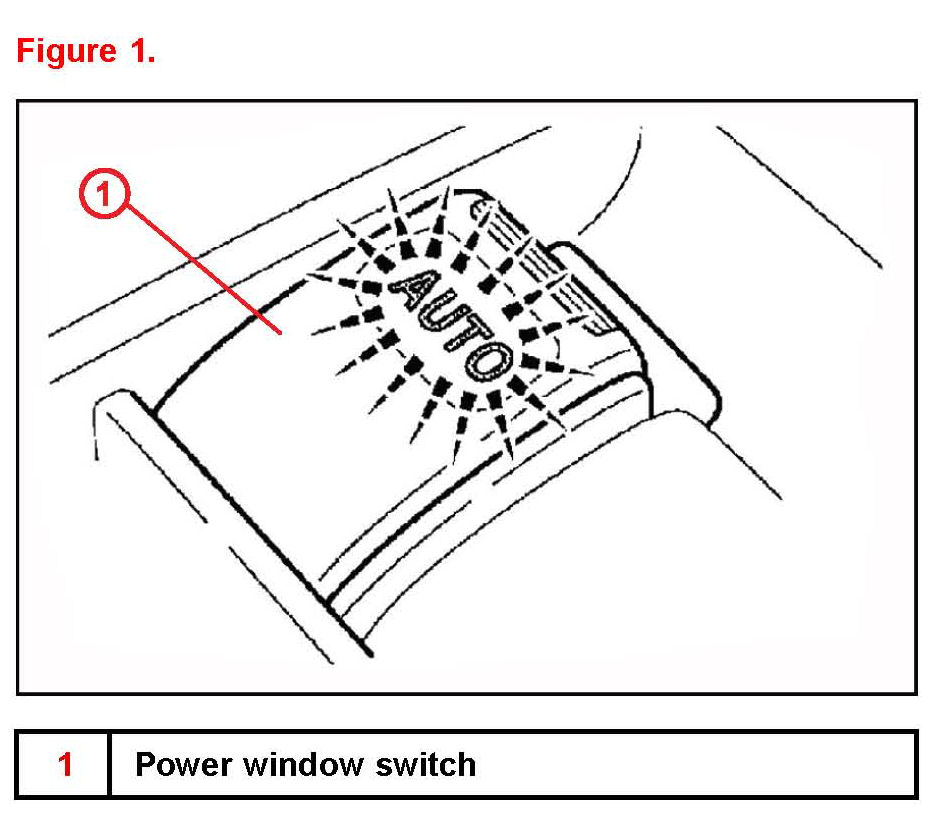

When not initialized, the power window switch for the driver's door power window will blink.

2. Push the driver's door power window switch "DOWN" to open the window.

3. Pull "UP" the driver's door power window switch until the window closes, and continue holding it for approximately one second until the switch stops blinking and remains illuminated.

4. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE

Jam protection function becomes effective through the above initialization procedure.
