Gear Sensor/Switch, Transfer Case
Gear Sensor/Switch, Transfer Case

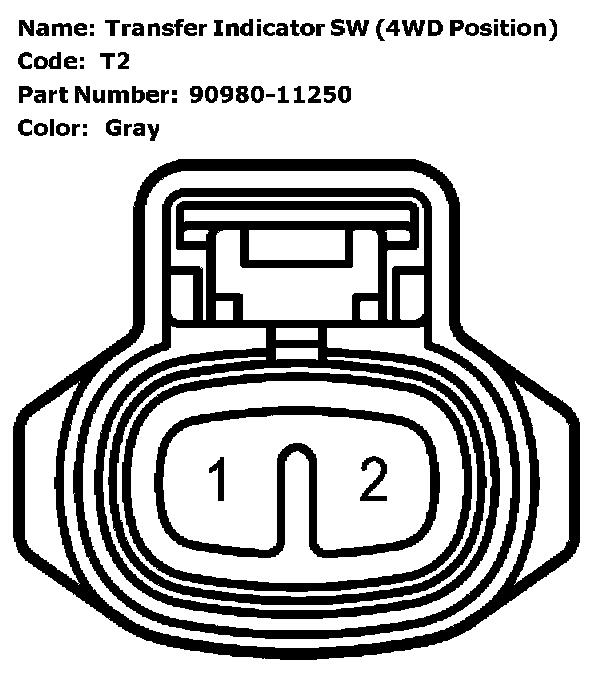

Transfer Indicator SW (4WD Position):

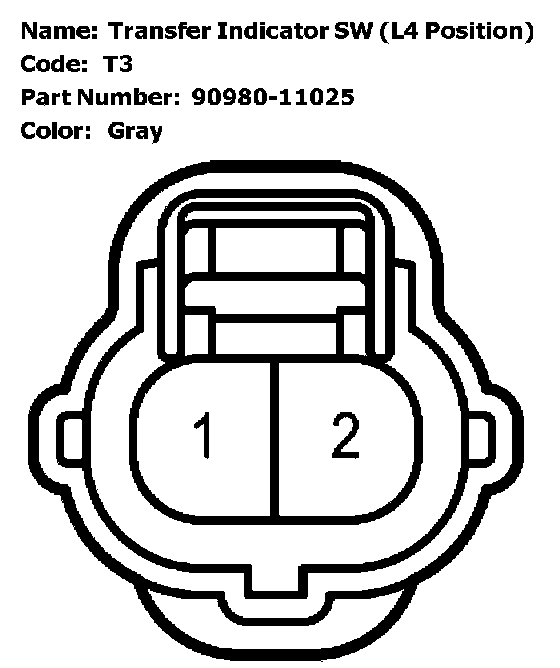

Transfer Indicator SW (L4 Position):

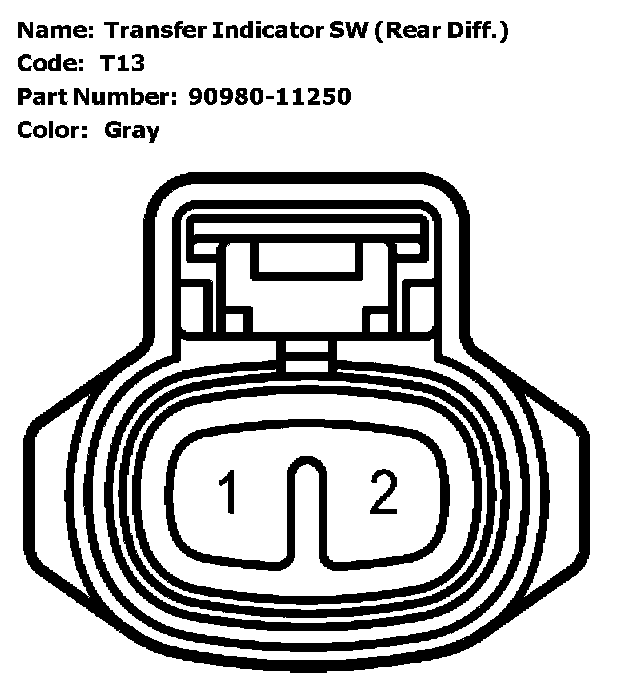

Transfer Indicator SW (Rear Diff.):
