Camshaft Bearing

CAMSHAFT

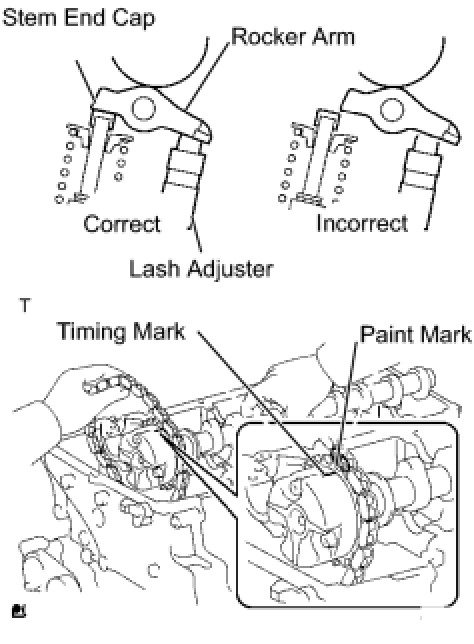

NOTICE: Check that the valve rocker arm is correctly set as shown in the illustration.

- Apply clean engine oil to the camshaft's cam portion and the cylinder head journals.
- Install the chain onto the camshaft timing gear, with the painted mark of the link aligned with the timing mark of the camshaft timing gear.

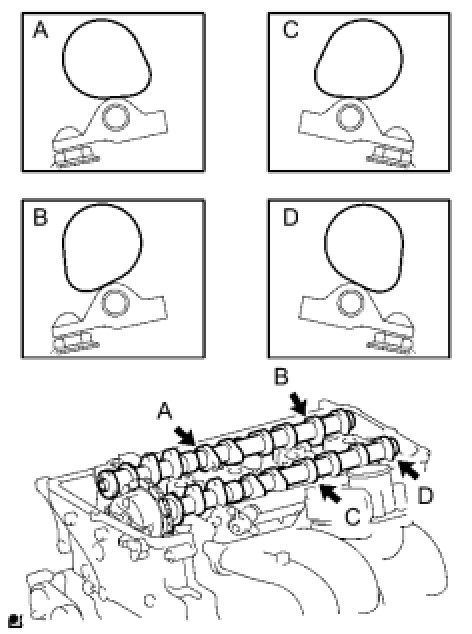

- Set the 2 camshafts as shown in the illustration.
NOTICE: Align the paint mark with the timing mark before setting the camshaft.





- Provisionally install the No. 1 camshaft bearing cap.

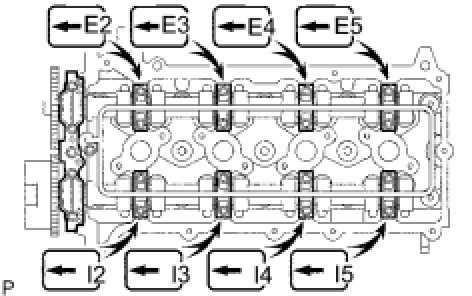

- Check the proper location of each No. 2 camshaft bearing cap and install each one.





- Install a new O-ring onto the No. 1 camshaft bearing cap.

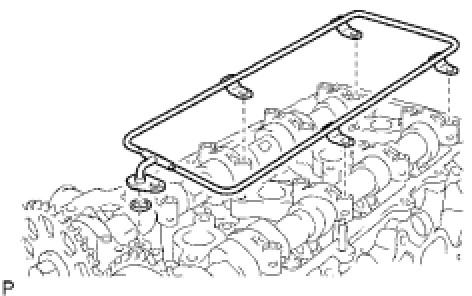

- Provisionally install the camshaft oil delivery pipe.





- Tighten the bolts in the order shown in the illustration.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf) for bolt A
Torque: 16 Nm (158 kgf-cm, 11 ft-lbf) for bolts except bolt A

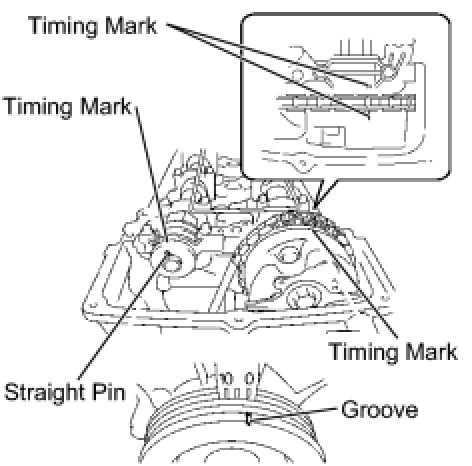

- Check that each timing mark is set in the position shown in the illustration.

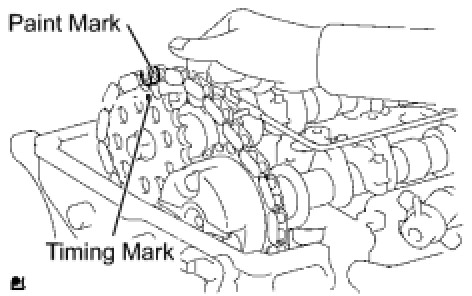

- Install the timing chain onto the camshaft timing gear, with the paint mark aligned with the timing mark on the camshaft timing gear.
- Align the No. 2 camshaft straight pin and camshaft timing gear straight pin hole. Then install the camshaft timing gear onto the No. 2 camshaft.

NOTICE: If the straight pin and straight pin hole are difficult to align, slightly rotate the No. 2 camshaft to the left and right using the hexagonal lobe of the camshaft. Then attempt to align them again.

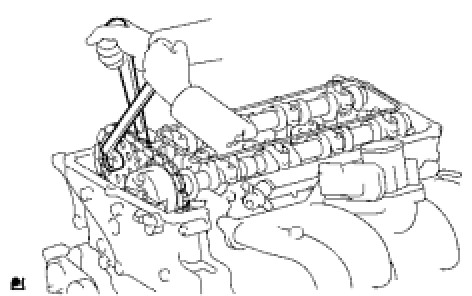

- Hold the hexagonal lobe of the No. 2 camshaft with the adjustable wrench.
- Tighten the bolt.
Torque: 78 Nm (795 kgf-cm, 58 ft-lbf)

- Remove the 3.0 mm (0.118 in.) diameter bar from the chain tensioner.
- Apply adhesive to 2 or 3 threads of the timing gear case with head straight screw plug.
Adhesive: Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent





- Using a 10 mm socket hexagon wrench, install the timing gear case with head straight screw plug.
Torque: 17 Nm (170 kgf-cm, 12 ft-lbf)
