Control Module, Transfer Case

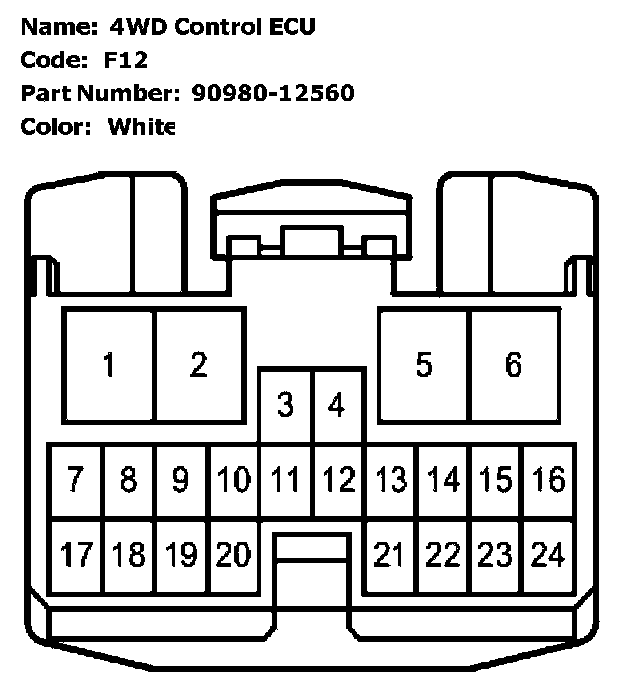

4WD Control ECU (F12):




4WD Control ECU (F13):

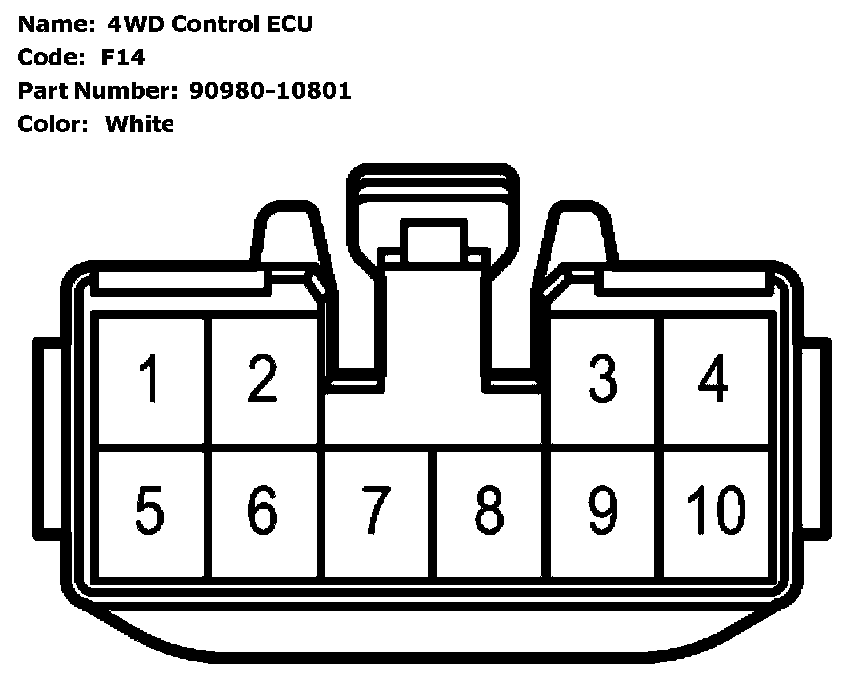

4WD Control ECU (F14):
