Removal








1GR-FE LUBRICATION: OIL PUMP (for 4WD and Pre-Runner): REMOVAL

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE Technician Safety Information
2. REMOVE BATTERY
3. DRAIN ENGINE COOLANT Service and Repair
4. DRAIN ENGINE OIL Removal
5. REMOVE POWER STEERING LINK ASSEMBLY Removal
6. REMOVE FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD) Removal
7. REMOVE V-BANK COVER Removal
8. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH Removal
9. REMOVE FAN SHROUD Removal
10. REMOVE AIR CLEANER ASSEMBLY Removal
11. REMOVE OIL LEVEL GAUGE GUIDE
12. REMOVE WATER INLET Removal
13. SEPARATE PUMP ASSEMBLY, VANE Removal
14. REMOVE GENERATOR ASSEMBLY Removal
15. SEPARATE COOLER COMPRESSOR ASSEMBLY Removal
16. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY Removal
17. REMOVE NO.2 IDLER PULLEY SUB-ASSEMBLY Removal
18. REMOVE NO.1 IDLER PULLEY SUB-ASSEMBLY Removal
19. REMOVE CRANKSHAFT PULLEY Removal
20. REMOVE NO.2 OIL PAN SUB-ASSEMBLY Removal
21. REMOVE OIL STRAINER SUB-ASSEMBLY Removal
22. REMOVE OIL PAN SUB-ASSEMBLY Removal
23. REMOVE INTAKE AIR SURGE TANK Removal
24. REMOVE IGNITION COIL ASSEMBLY Removal
25. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY Removal
26. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH Removal
27. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY Removal
28. REMOVE VVT SENSOR Removal
29. REMOVE OIL FILTER BRACKET SUB-ASSEMBLY
(a) Remove the 3 bolts, 2 nuts, oil filter bracket and gasket.
30. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

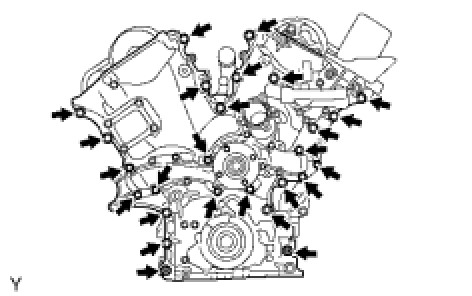

(a) Remove the 24 bolts and 2 nuts.

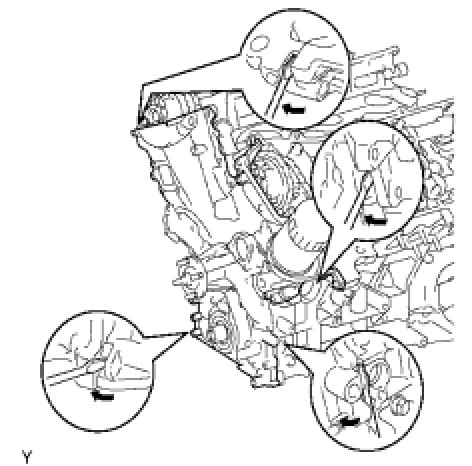

(b) Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.
NOTICE: Be careful not to damage the contact surfaces of the timing chain cover, cylinder block and cylinder head.

(c) Remove the O-ring from the LH cylinder head.
31. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL Replacement
