Components

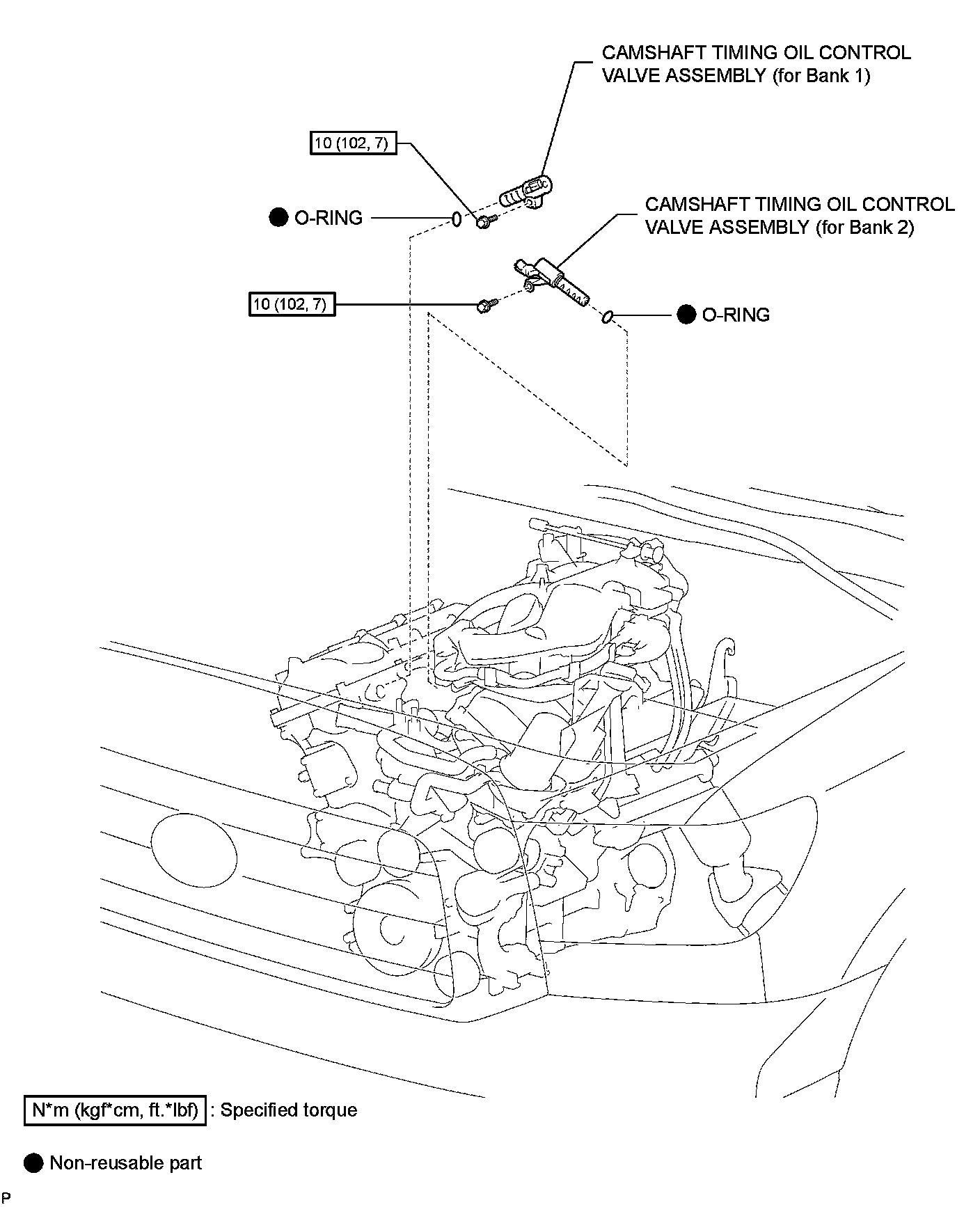

1GR-FE ENGINE CONTROL SYSTEM:
CAMSHAFT
OIL CONTROL VALVE: COMPONENTS

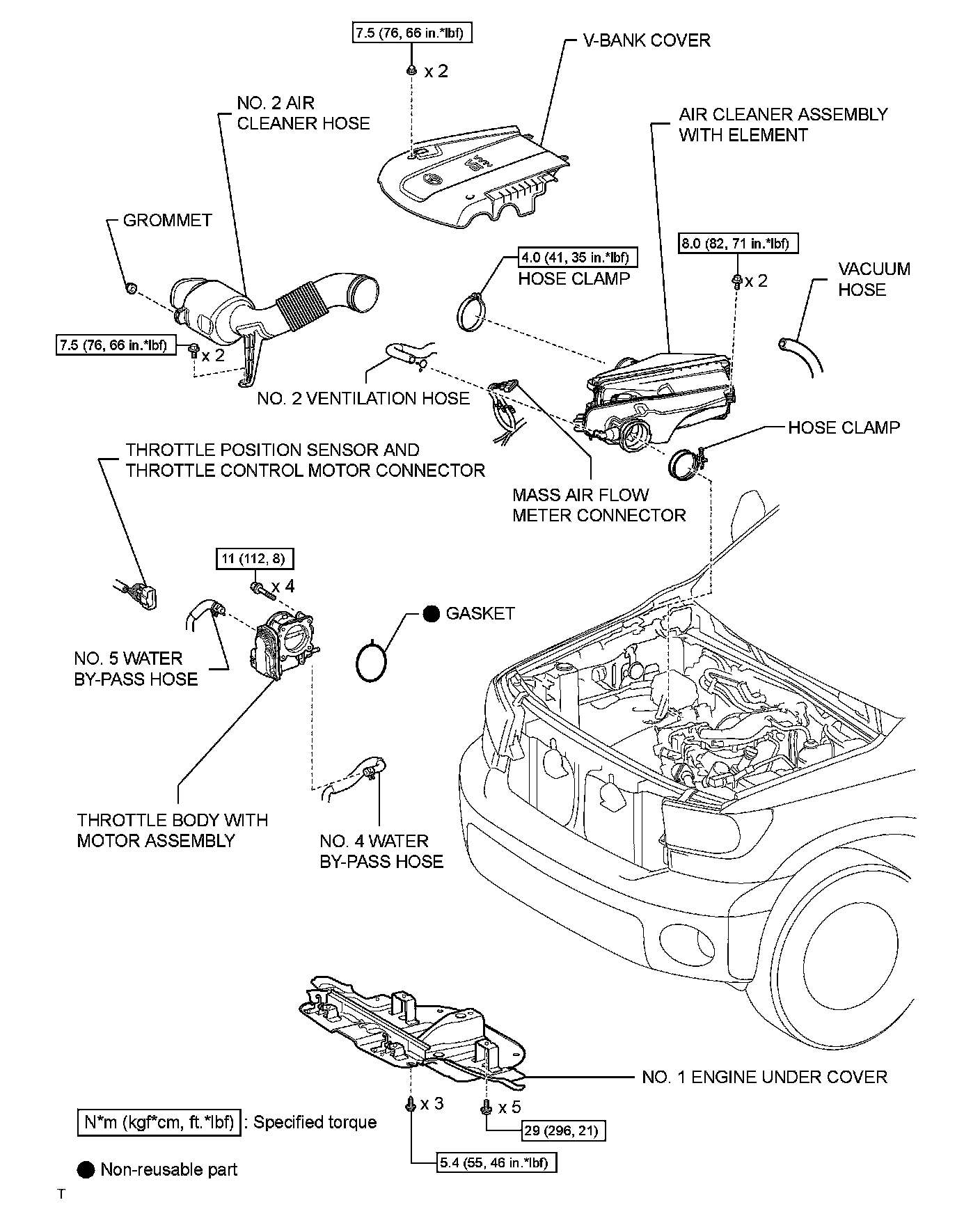

COMPONENTS
ILLUSTRATION
