System Specifications

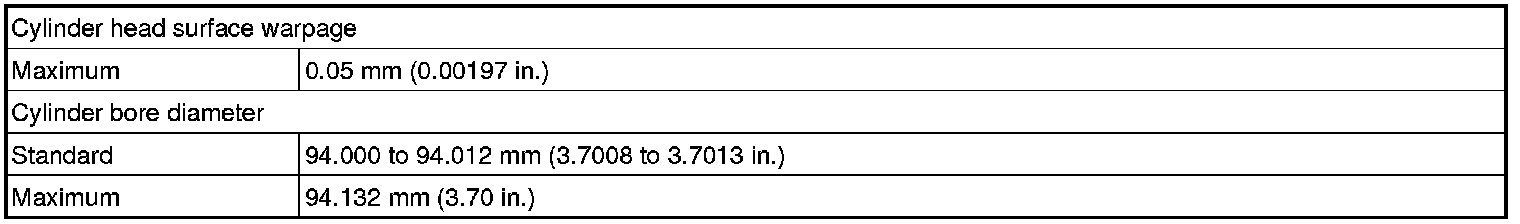

SURFACE VARIATION AND CYLINDER BORE DIAMETER





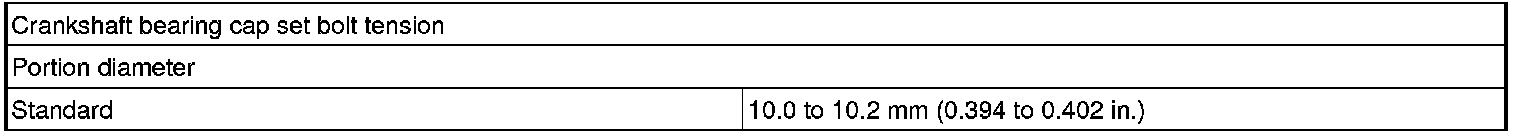

MAIN BEARING CAP

Step 1:

Install the 16 bearing cap bolts. Using several steps, tighten the bolts uniformly in the sequence shown in the illustration.

Torque 61 Nm (622 kgf-cm, 45 ft-lbf)





Step 2:
Mark the front side of the bearing cap bolts with paint.
Tighten the bearing cap bolts another 90° in the sequence as shown.
Check that the painted marks are now at a 90° angle to the front.
Check that the crankshaft turns smoothly.





Using several steps, install the 8 bearing cap bolts uniformly in the sequence shown in the illustration.

Torque 26 Nm (262 kgf-cm, 19 ft-lbf)

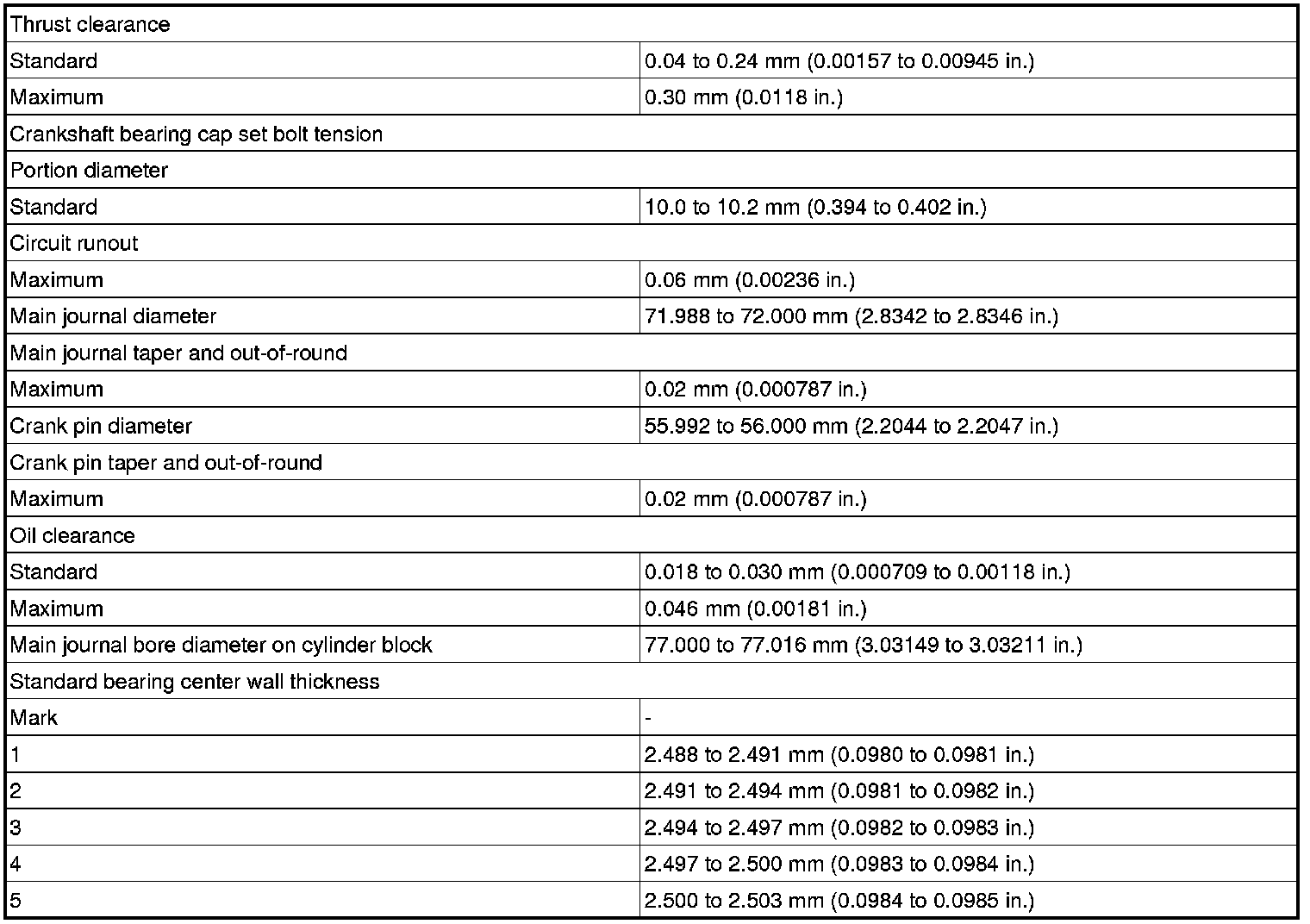

CRANKSHAFT





Crankshaft timing gear diameter (with No. 1 chain)
Minimum 61.00 mm (2.40 in.)

CONNECTING ROD




PISTON

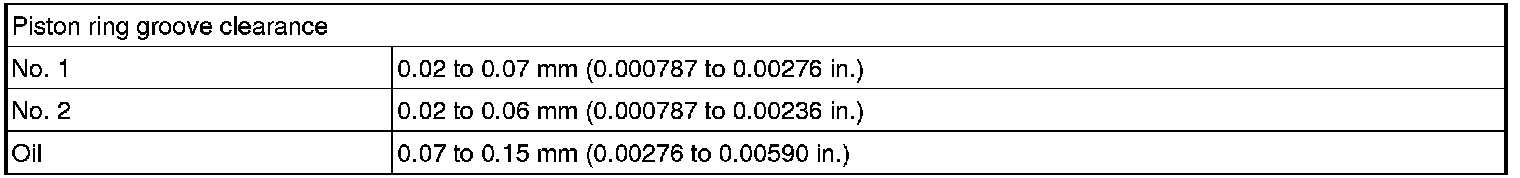

PISTON RING





CRANKSHAFT PULLEY

Torque 250 Nm (2549 kgf-cm, 184 ft-lbf)
