Intake Manifold

INTAKE MANIFOLD SUB-ASSEMBLY





Install and uniformly tighten the 10 bolts in several passes.
Torque 26 Nm (265 kgf-cm, 19 ft-lbf)

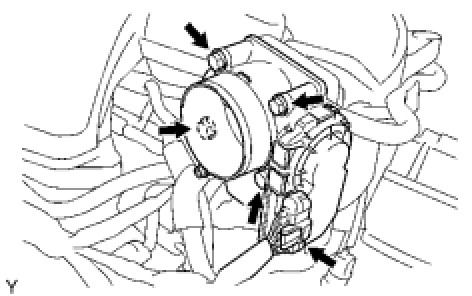

THROTTLE BODY WITH MOTOR ASSEMBLY





Install a new gasket and the throttle body with motor with the 4 bolts.
Torque 11 Nm (112 kgf-cm, 8 ft-lbf)
