Engine
>>
System Specifications
>>
Exhaust Manifold
Exhaust Manifold

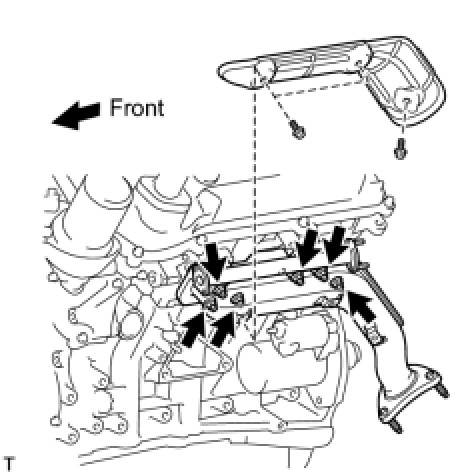

EXHAUST MANIFOLD
LH
Install the
exhaust manifold
with 6 new nuts.
Torque
21 Nm (214 kgf-cm, 15 ft-lbf)

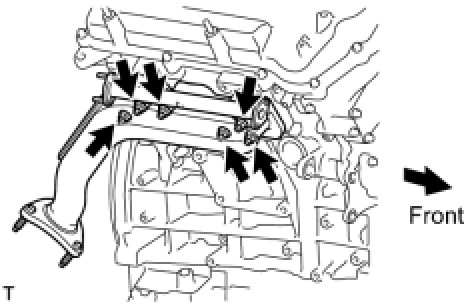

EXHAUST MANIFOLD
RH
Install the
exhaust manifold
with 6 new nuts.
Torque
21 Nm (214 kgf-cm, 15 ft-lbf)
