System Specifications

NO. 1 CHAIN TENSIONER ASSEMBLY





Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

NO. 2 CHAIN TENSIONER ASSEMBLY (for Bank 1)

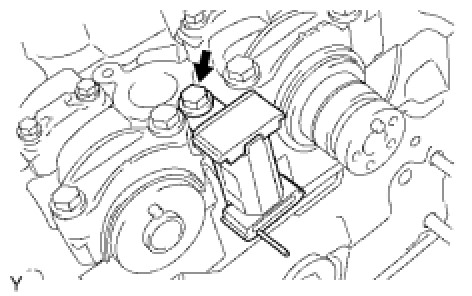

Install the No. 2 chain tensioner with the bolt.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

NO. 3 CHAIN TENSIONER ASSEMBLY (for Bank 2)

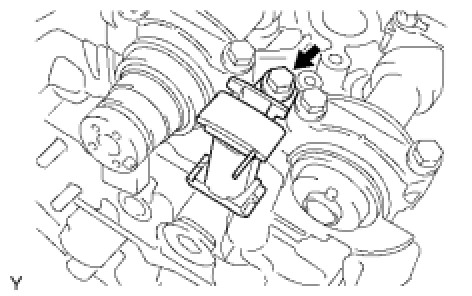

Install the No. 3 chain tensioner with the bolt.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)


CRANKSHAFT PULLEY

Torque 250 Nm (2549 kgf-cm, 184 ft-lbf)

TIMING CHAIN COVER SUB-ASSEMBLY





Install the timing chain cover with the 24 bolts labeled A and B, and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque 23 Nm (235 kgf-cm, 17 ft-lbf)

Bolt length:
