Timing Cover
TIMING CHAIN COVER SUB-ASSEMBLY

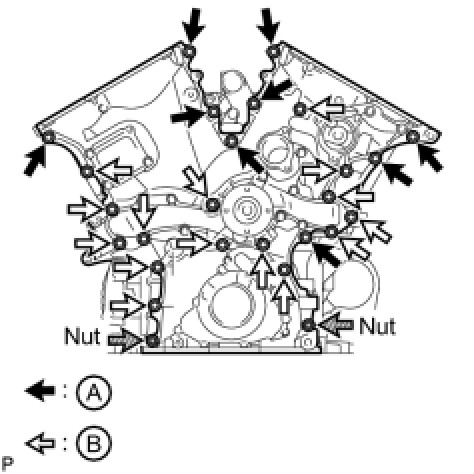

Install the timing chain cover with the 24 bolts labeled A and B, and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque 23 Nm (235 kgf-cm, 17 ft-lbf)

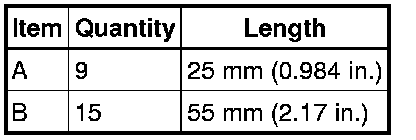

Bolt length:
Install the timing chain cover with the 24 bolts labeled A and B, and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
Bolt length:
