Torque Specifications








SERVICE SPECIFICATIONS: 1GR-FE STARTING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

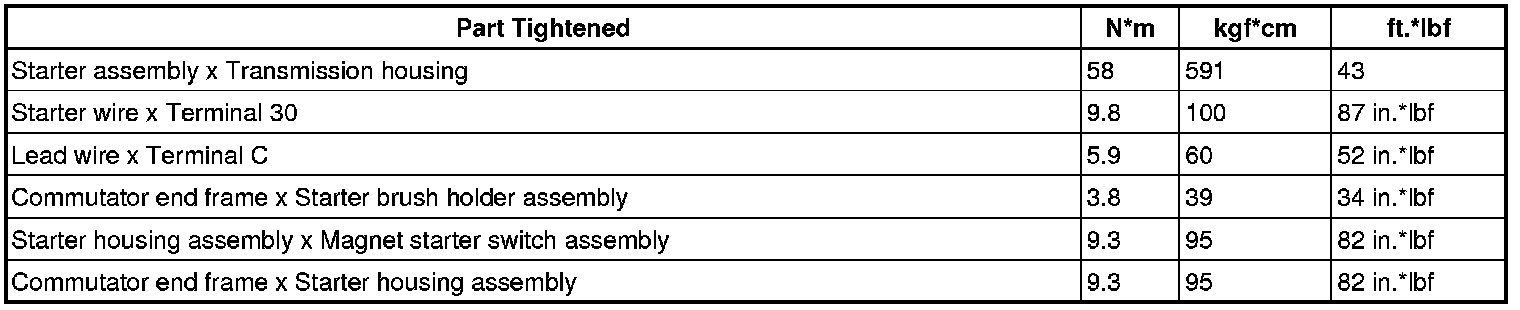

for 1.6 kW Type:

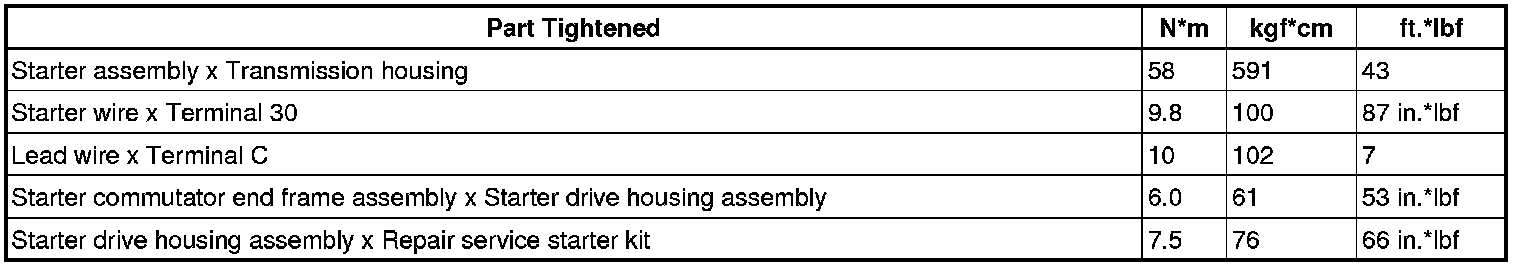

for 2.0 kW Type:
